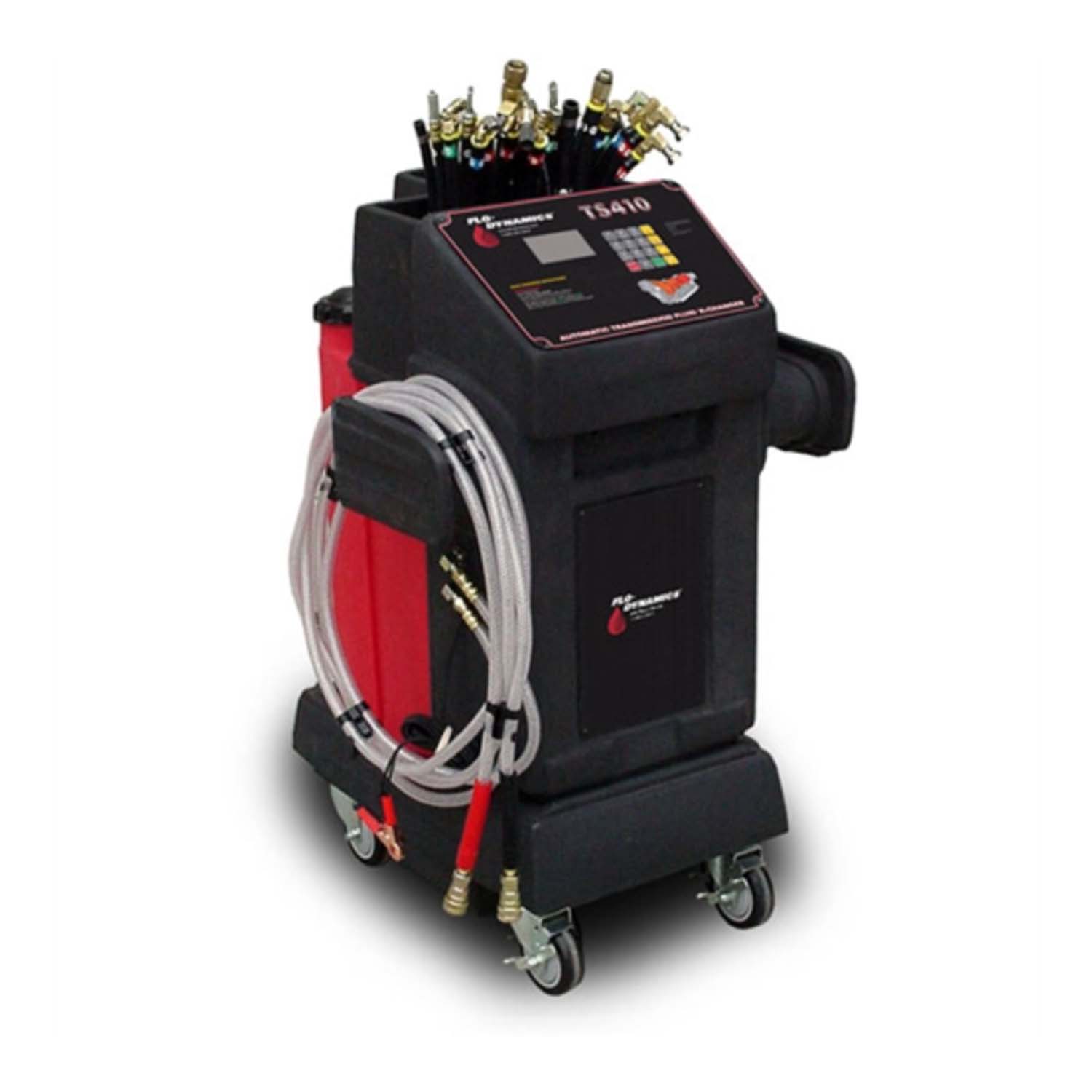

Flo-Dynamics TS410 ATF Inline Exchanger #TS410LCD
Couldn't load pickup availability
-
DESCRIPTION
"Automatic" - Simple push-button controls for completely automatic exchange--24 qt. new & used ATF reservoirs. Fastest service times in comparative testing. Large backlit LCD screen provides easy-to-follow screen prompts with service indicators
-
Features
- Powerful 2.5 gallon per minute rated pump for unmatched speed
- Fully automatic operation
- Special chemical flushing mode
- Proven, accurate fluid measurement (+/-3%)
- Individual ADD and REMOVE fluid buttons
- Power interruption memory
- Drains transmission pan for filter change
- 24 quart capacity new and waste fluid tanks with 21 quart exchange capability
- Pause button
- 12 volt powered
- Volt meter
- Adapter rack drains into the waste tank keeping the adapters dry and organized
- Rotocast polyethylene body and tanks won’t scratch vehicle
- Small platform saves space
- Quart counter
- Durable 5-inch locking caster wheels
- Clear service hoses provide visual confirmation of fluid exchange
- 6.25" x 3.5" fully interactive easy-to-use color touch screen

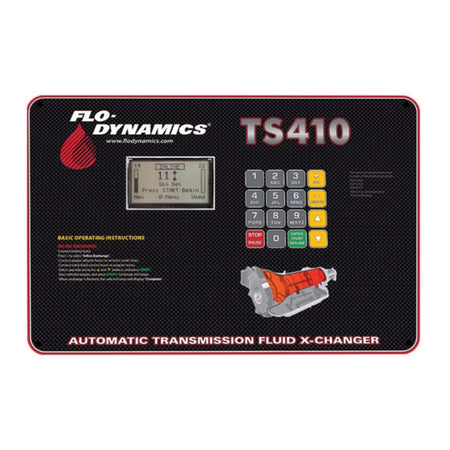

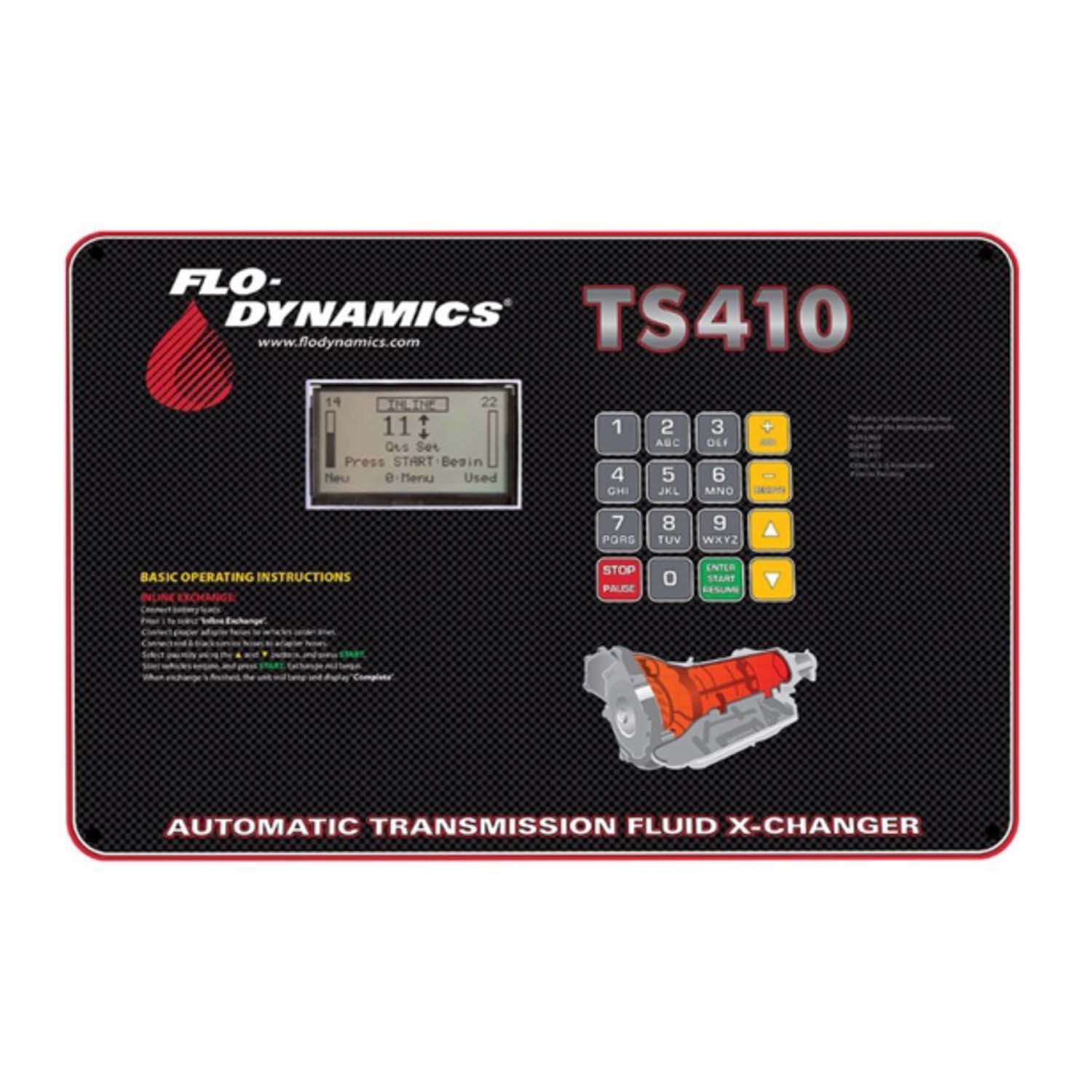

LCD Panel Features
- Ability to select 1 to 20 quarts exchange amount
- Ergonomically correct working height
- ADD/REMOVE fluid feature
- Quart counter
- Pause button
- Fluid totalizer
- Reverse hoses indicator
-
SPECIFICATIONS
Specifications TS410LCD Waste Fluid Tank 24 quart Used Fluid Tank 24 quart Power 12V DC from the vehicle’s battery Dimensions
39" H x 24 3/4" W x 25" D Weight 133 lbs.
-
WARRANTY AND MEDIA
1 Year Warranty
