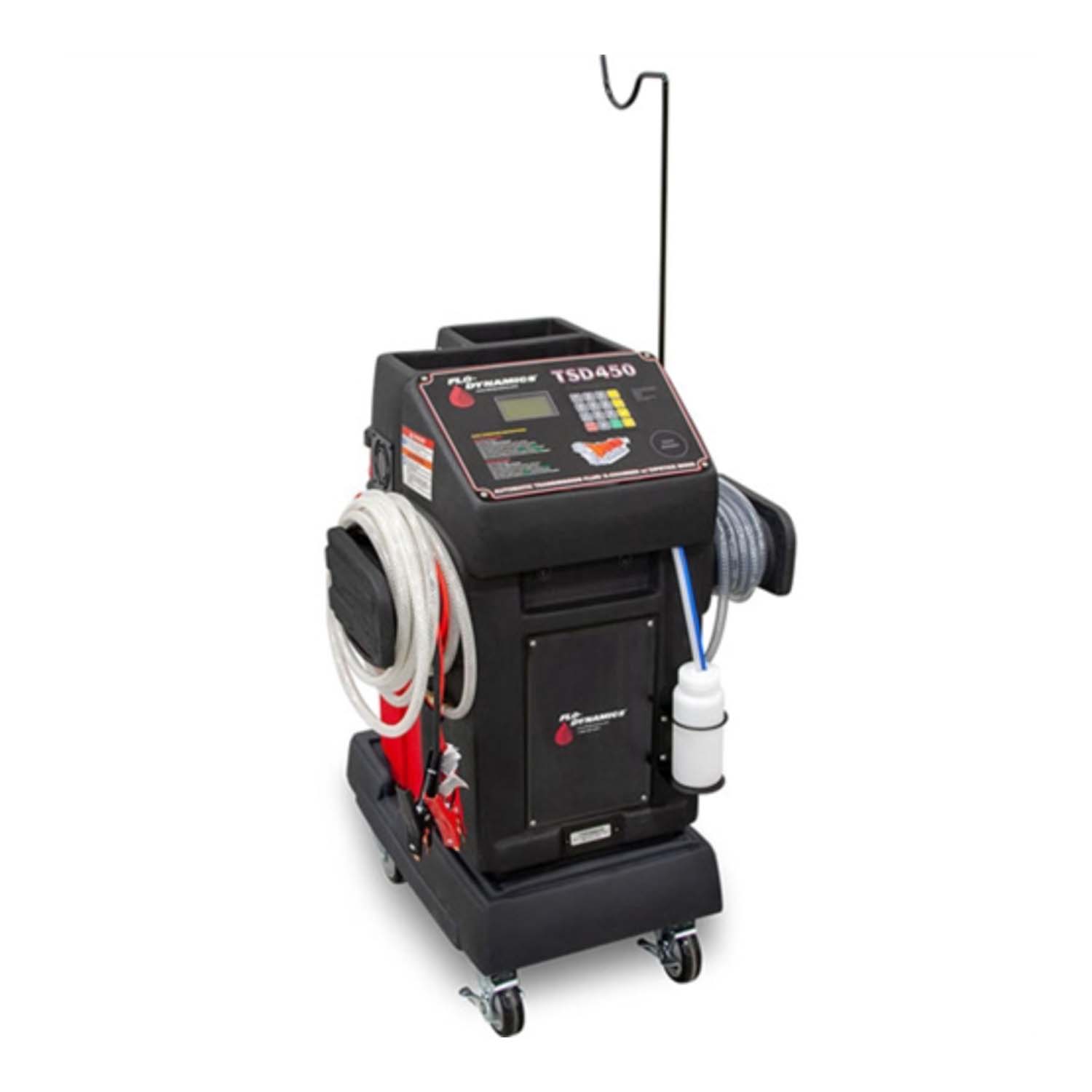

Flo-Dynamics TSD450LCD ATF Inline & Dipstick Exchanger #TSD450LCD

• DESCRIPTION
• FEATURES
• SPECIFICATIONS
• WARRANTY AND MEDIA

• DESCRIPTION

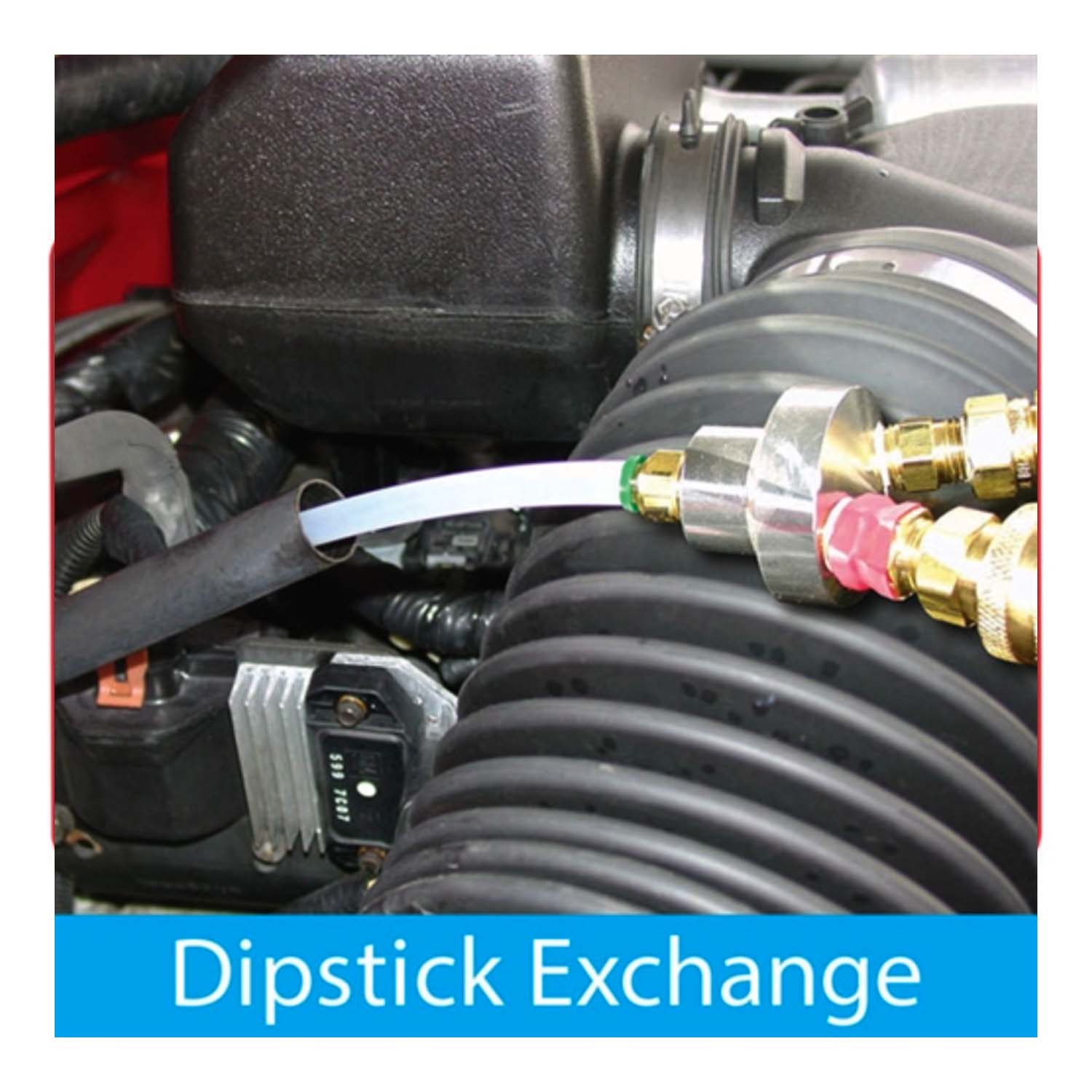

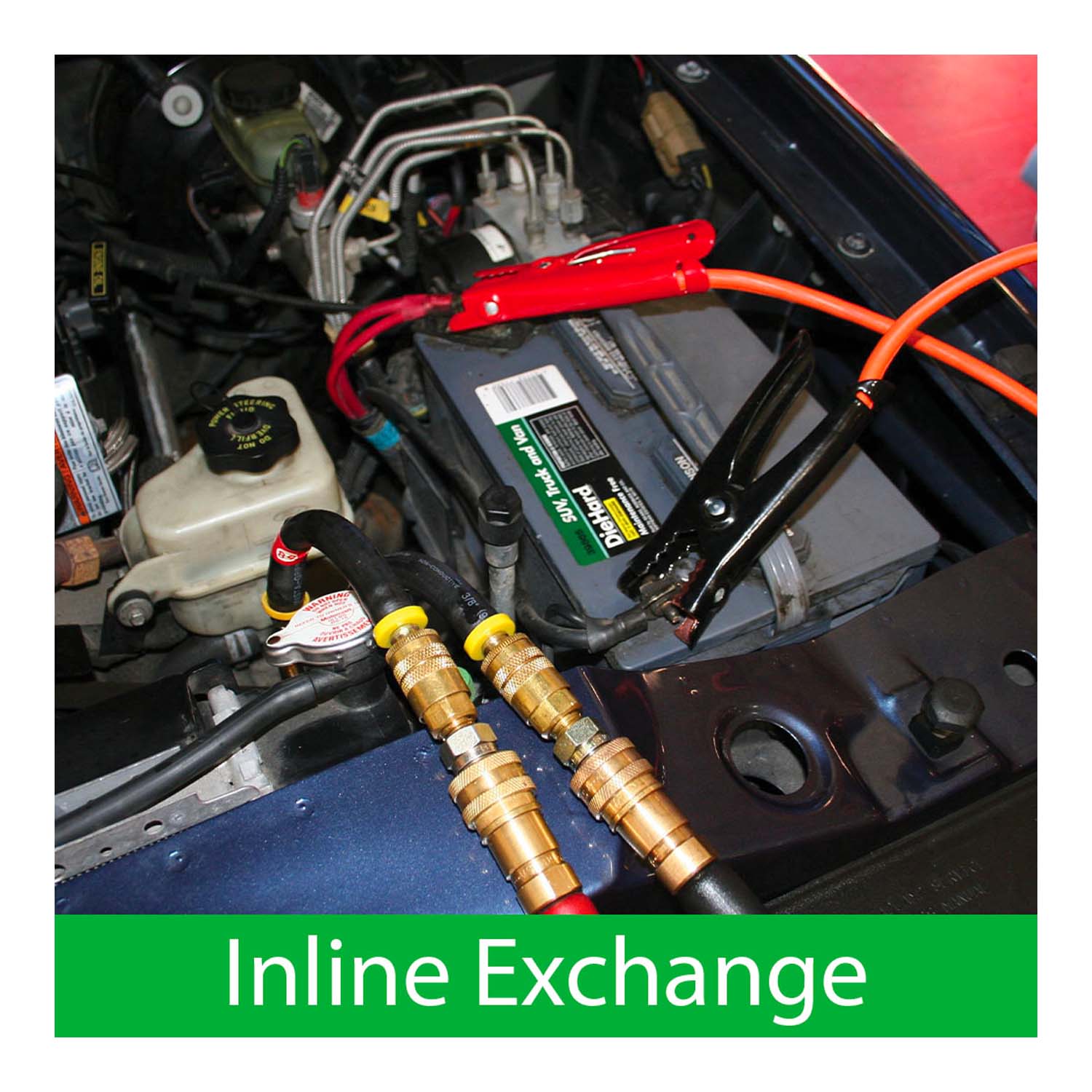

  Automatic, Menu-driven ATF Exchanger with in-line and dipstick modes. Fastest service times in comparative testing. Large backlit LCD screen provides easy-to-follow screen prompts with service indicators.

• Features

  • Powerful 2.5 gallon per minute rated pump for unmatched speed
  • Fully automatic operation
  • Special chemical flushing mode
  • Proven, accurate fluid measurement (+/-3%)
  • Individual ADD and REMOVE fluid buttons
  • Power interruption memory
  • Drains transmission pan for filter change
  • 24 quart capacity new and waste fluid tanks with 21 quart exchange capability
  • Pause button
  • 12 volt powered
  • Volt meter
  • Adapter rack drains into the waste tank keeping the adapters dry and organized
  • Rotocast polyethylene body and tanks won’t scratch vehicle
  • Small platform saves space
  • Quart counter
  • Durable 5-inch locking caster wheels
  • Clear service hoses provide visual confirmation of fluid exchange
  • 6.25" x 3.5" fully interactive easy-to-use color touch screen

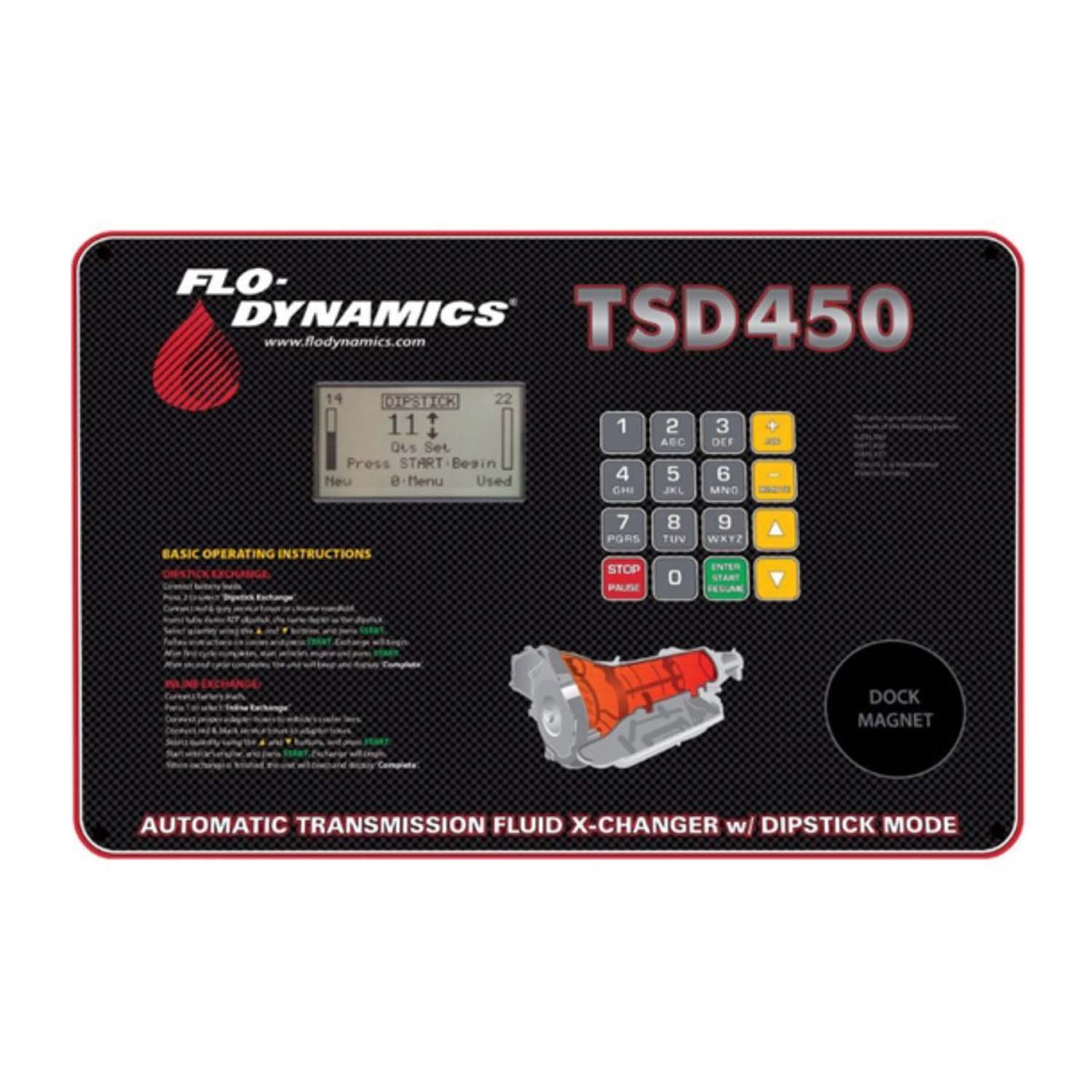

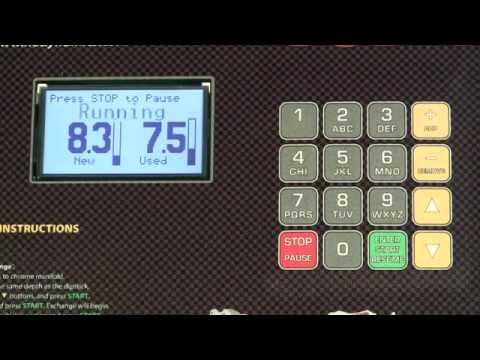

  LCD Panel Features

  • Ability to select 1 to 20 quarts exchange amount
  • Ergonomically correct working height
  • ADD/REMOVE fluid feature
  • Quart counter
  • Pause button
  • Fluid totalizer
  • Reverse hoses indicator

• SPECIFICATIONS

  Specifications	TSD450LCD
  New Fluid Tank	24 quart
  Used Fluid Tank	24 quart
  Power	12V DC from vehicle’s battery
  Dimensions	39" H x 24 3/4" W x 25" D
  Weight	133 lbs.




• WARRANTY AND MEDIA

  1 Year Warranty

  Flo-Dynamics TSD450LCD ATF Manual

  Flo-Dynamics TSD450LCD ATF Quick Start
