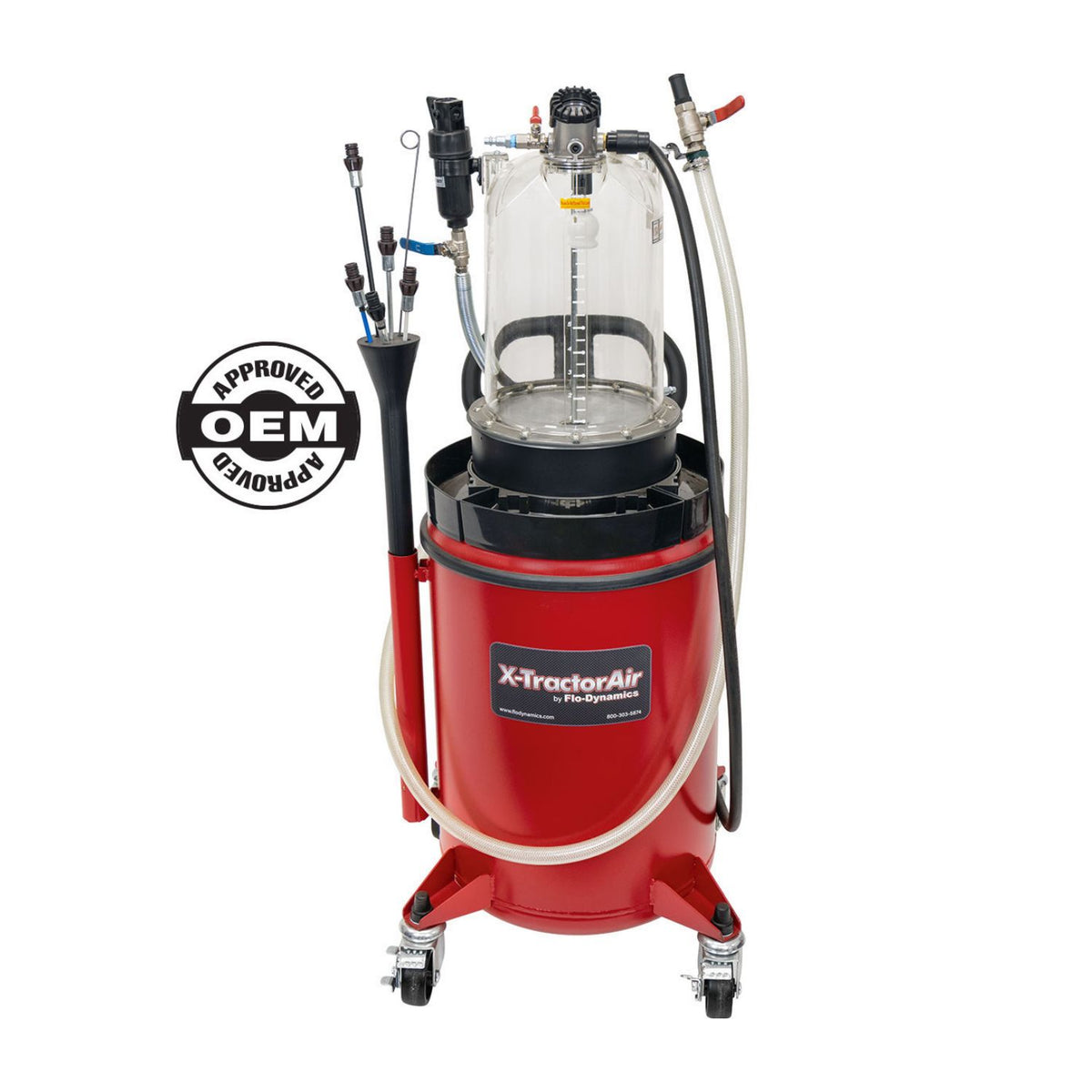

Flo-Dynamics X-TractorAir Fluid Extraction System #40400077
| Part Number | 40400077 |
| Brand | Flo-Dynamics |
| Product Type | Fluid Extraction System |
| Power | Shop air (air-operated) |
| Chamber Capacity | 63 qt. |
| Tank Capacity | 10 qt. |
| Vacuum | 26.58 in. Hg at Sea Level |
| Dimensions | 45 in. H × 17-1/4 in. W × 17-1/4 in. D |
| Weight | 64 lb |
| Wheels | 3 in. casters, 2 with brakes |
| Included | Six suction tubes |
Flo-Dynamics X-TractorAir Fluid Extraction System #40400077
The X-TractorAir is Flo-Dynamics' shop-air-powered fluid extraction system: it draws a wide range of automotive fluids out of the vehicle through a suction tube — no electrical connection, no drain pan. Its large 63-quart chamber is clearly marked in quarts and liters for accurate fluid measurement, and the machine rolls between bays on smooth-rolling 3-inch swivel casters, two with brakes.
It is built for professional service bays, low-volume and high-volume alike: a published 26.58 in. Hg vacuum at sea level, a 10-quart tank, and six included suction tubes in different diameters and lengths for reaching fluid through compatible dipstick tubes and service openings. Setup is simple — connect shop air, select the right tube for the service opening, and start extracting.
Questions before ordering? Call (817) 865-3707 — we confirm the machine matches your shop's air supply and fluid-extraction workflow before you order.
Compatibility & Fitment

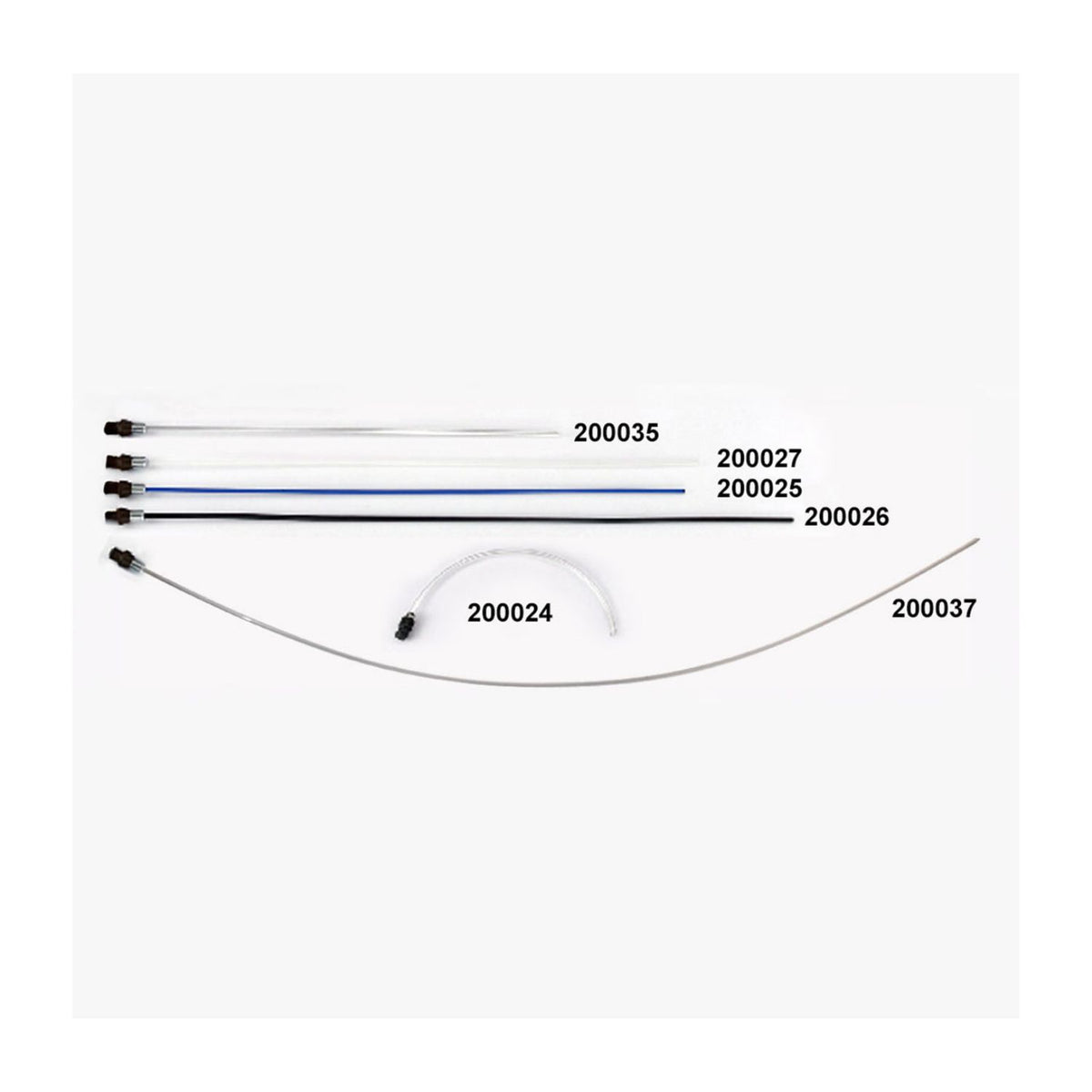

The X-TractorAir is intended for professional automotive fluid extraction using shop air. Select the appropriate suction tube for the service opening and the fluid being extracted — the six included tubes, carried over unchanged from the original listing, are listed below.
| #200024 | 1/4 in. × 15-3/4 in. |
| #200035 | 6 mm × 24 in. |
| #200027 | 6 mm × 29 in. |
| #200025 | 6 mm × 31 in. |
| #200026 | 7 mm × 36 in. |
| #200037 | 6 mm × 78 in. |
Flo-Dynamics specifically states that the machine is <strong>not approved for use with fuel</strong> — never use it to extract gasoline or diesel. Confirm the fluid type and the service opening before starting a job.
Warranty
Flo-Dynamics backs the X-TractorAir with a limited one (1) year warranty to the original purchaser: under normal use, care and service, the equipment is warranted against defects in material and workmanship for one year from the date of original invoice, with repair or replacement at Flo-Dynamics' option.
