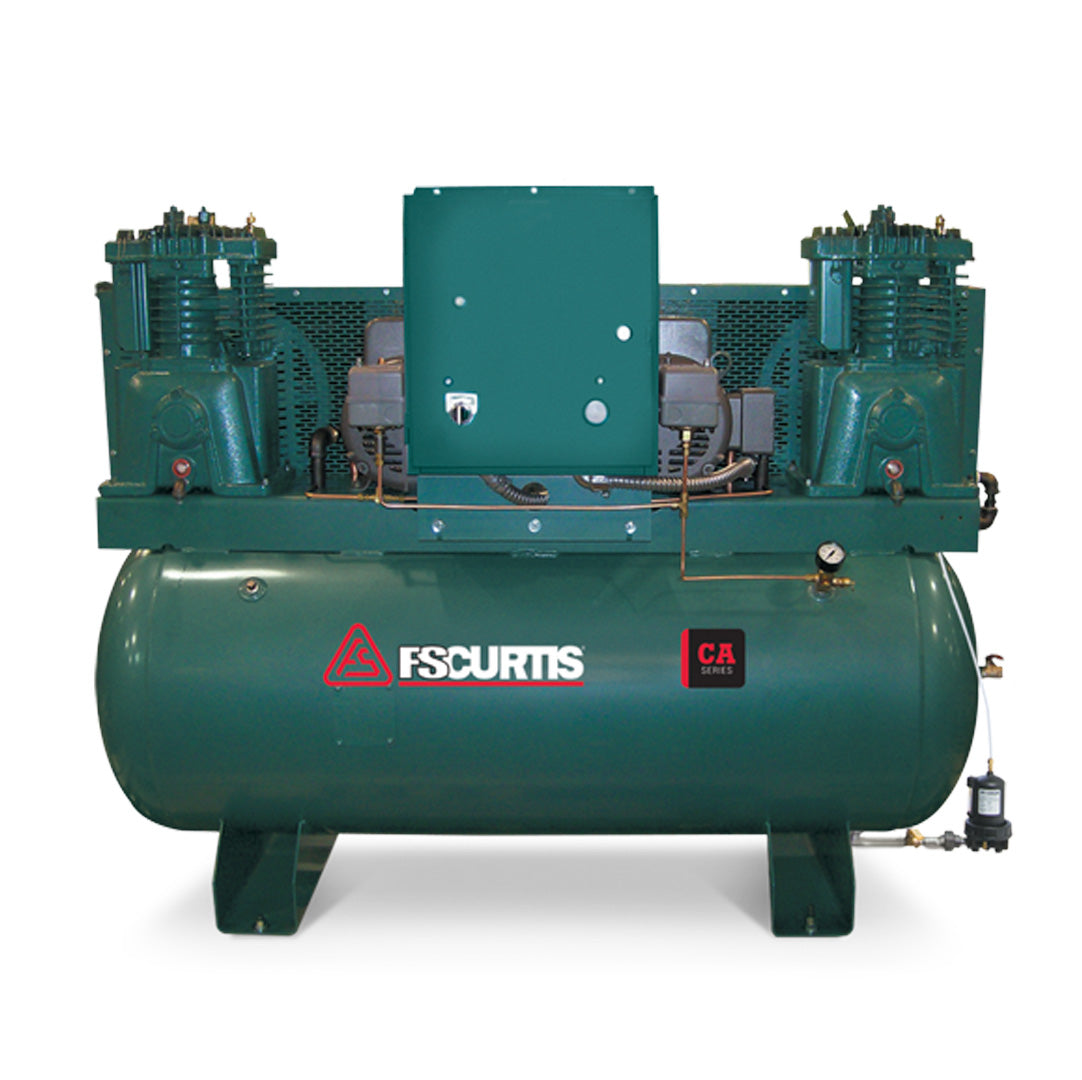

FS-Curtis CA10 120G Duplex 10(2)HP Ultra Pack Air Compressor #CA10-DUP
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CA10 Duplex Ultra Pack |
| Horsepower | 10 HP (x2, Duplex) |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 68.4 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis CA10-DUP — 10 HP (x2, Duplex) Air Compressor
A high-volume shop that's had a compressor failure cost real money — a job that couldn't ship, a bay that sat idle for a day waiting on a part — knows redundancy isn't optional at this scale, and neither is clean, dry air when moisture has already ruined a finish before.
The FS-Curtis CA10-DUP is a duplex two-stage reciprocating, ultra pack compressor rated for 10 HP (x2, Duplex) with a 120 gallon horizontal ASME tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Ultra Pack — factory-installed automatic tank drain and refrigerated air dryer — cuts down on the maintenance routine so your team spends less time babysitting the compressor and more time on paying work.
Who the CA10-DUP Is Built For
- âś… A high-volume auto body or fleet shop that's already lost a full day's billable bay time to a single compressor failure, and can't afford to gamble on that happening again during a peak week
- âś… A paint or finishing operation running 10 HP-class demand where a moisture-related comeback job has already cost more than the Ultra Pack accessory bundle would have
- âś… A facility manager scheduling routine pump maintenance around a single compressor's downtime, wanting to service one pump while the second keeps the floor running uninterrupted
- âś… A multi-location operator who's seen the Ultra Pack's auto-drain and dryer pay off at a smaller CA5/CA7.5 site and wants the same reliability at the flagship location's higher demand
- âś… A shop planning a second-shift or expansion push in the next year that would rather size up to the full duplex Ultra Pack now than retrofit accessories onto a base unit later
What the CA10-DUP Is NOT Built For
- ❌ Single-bay or small shops — this is the most expensive configuration in the CA10 line and is overkill for lighter demand
- ❌ Budget-conscious buyers — the base CA10-D duplex without Ultra Pack saves meaningfully if accessories aren't needed yet
- ❌ Shops with limited floor space — the largest footprint in the CA10 line at 90" long
What Makes the CA10-DUP Different
Commercial 2-Stage Pump
The CA10-DUP uses an E71 (x2), Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 68.4 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Ultra Pack Upgrades
Includes factory-installed automatic tank drain and refrigerated air dryer — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.
Power Requirements
Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Redundancy + high CFM + accessories
- High-volume commercial shops
- Maximum headroom for growth
- Single-bay / small shops
- Budget-first buyers
CA10-DUP vs. FS-Curtis CA15-H (15 HP Simplex, No Ultra Pack) — Which Compressor Is Right for Your Shop?
| Decision Point | CA10-DUP | FS-Curtis CA15-H (15 HP Simplex, No Ultra Pack) |
|---|---|---|
| Horsepower / Tank | 10 HP x2 / 120 Gal | 15 HP / 120 Gal |
| CFM @ 175 PSI | 68.4 CFM | 42.6 CFM |
| Redundancy + accessories | Duplex pumps + Ultra Pack bundle (auto-drain/dryer) | Simplex, standard configuration |
| Best fit | Shops wanting redundancy, high CFM, and factory accessories together | Shops wanting the highest single-pump horsepower without duplex cost |
Choose the CA10-DUP for the most fully-equipped, redundant, high-CFM setup with factory accessories. Choose the CA15-H for the highest single-pump horsepower in the CA line at a lower price if redundancy isn't required. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CA10-DUP
| Model / Part Number | CA10 Duplex Ultra Pack |
| Horsepower | 10 HP (x2, Duplex) |
| Pump | E71 (x2), Cast-Iron, Two-Stage |
| Configuration | Duplex Two-Stage Reciprocating, Ultra Pack |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 68.4 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FCA10E71D1U-A9L1XX) |
| Ultra Pack Features | factory-installed automatic tank drain and refrigerated air dryer |
| Overall Dimensions | 90" L x 32" W x 53" H |
| Shipping Weight | 1,311 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 90" L x 32" W x 53" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 1,311 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CA10-DUP
FS-Curtis backs the CA10-DUP with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Ultra Pack accessories (auto tank drain, refrigerated air dryer) | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis CA10-DUP
Why Buy the CA10-DUP from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 10 HP (x2, Duplex), 120 Gallon Horizontal ASME tank, 68.4 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the CA10-DUP or the FS-Curtis CA15-H (15 HP Simplex, No Ultra Pack) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
