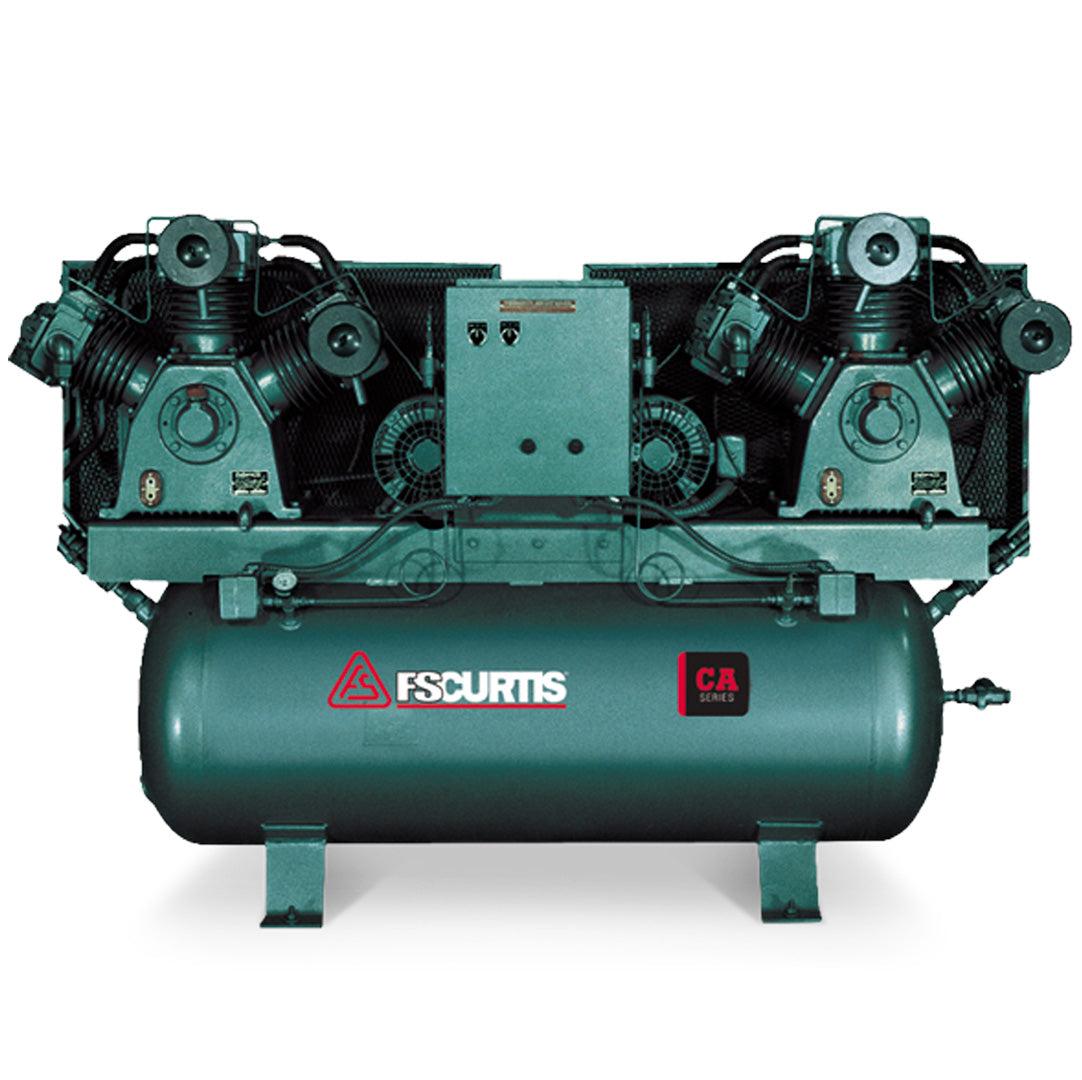

FS-Curtis CA5+ 120G Duplex 5(2)HP Electric Air Compressor #CA5Plus-D
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CA5+ Duplex |
| Horsepower | 5 HP (x2, Duplex) |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 37 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis CA5PLUS-D — 5 HP (x2, Duplex) Air Compressor
A shop that's had a single compressor go down mid-shift and watched every bay grind to a halt waiting on air needs a second pump standing by, not another single point of failure that fails at the worst time.
The FS-Curtis CA5PLUS-D is a duplex two-stage reciprocating compressor rated for 5 HP (x2, Duplex) with a 120 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the CA5PLUS-D Is Built For
- ✅ A multi-bay commercial shop that's already had a compressor failure shut down every bay at once, and won't risk that again without a second pump ready to take over
- ✅ An operation comparing the standard CA5-D against this CA5+ version and choosing the lighter, more efficient E57 pump platform for the same duplex redundancy at less shipping weight
- ✅ A shop that's grown past what a simplex unit can support and needs both more combined CFM (37 vs. a single pump's output) and the uptime insurance of a second pump
- ✅ A facility manager who's tired of scheduling maintenance downtime around a single compressor and wants one pump serviceable while the other keeps the shop running
- ✅ An owner standardizing on the CA5+ pump platform across a multi-bay operation for common parts and service, choosing the duplex configuration for the highest-demand location
What the CA5PLUS-D Is NOT Built For
- ❌ Single-bay or small shops where a simplex unit already covers the air draw
- ❌ Budget-conscious buyers — duplex units cost significantly more than simplex at the same HP
- ❌ Shops with limited floor space — the 120-gallon duplex tank has a larger footprint than a single unit
What Makes the CA5PLUS-D Different
Commercial 2-Stage Pump
The CA5PLUS-D uses an E57 (x2), Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 37 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Single or Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Efficient CA5+ pump redundancy
- 37 CFM combined output
- Multi-bay commercial shops
- Single-bay / small shops
- Tight floor space
CA5PLUS-D vs. Atlas AF9-120H (7.5 HP, 120 Gal Horizontal) — Which Compressor Is Right for Your Shop?
| Decision Point | CA5PLUS-D | Atlas AF9-120H (7.5 HP, 120 Gal Horizontal) |
|---|---|---|
| Horsepower / Tank | 5 HP x2 / 120 Gal Horizontal | 7.5 HP / 120 Gal Horizontal |
| CFM @ 175 PSI | 37 CFM | 22 CFM @ 175 PSI |
| Redundancy | Duplex — two independent pumps, built-in backup | Simplex — single higher-HP pump, no built-in redundancy |
| Best fit | Shops needing uptime guarantees / continuous multi-bay draw | Shops wanting higher single-pump HP without duplex cost |
Choose the CA5+ D when redundancy matters and you want the more efficient CA5+ pump platform. Choose the Atlas AF9-120H for a simpler single-pump setup at a lower price if redundancy isn't required. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CA5PLUS-D
| Model / Part Number | CA5+ Duplex |
| Horsepower | 5 HP (x2, Duplex) |
| Pump | E57 (x2), Cast-Iron, Two-Stage |
| Configuration | Duplex Two-Stage Reciprocating |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 37 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Single or Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/230V (FCA05E57D1S-A2L1XX) Three Phase: 3/60/200-208V (FCA05E57D1S-A9L1XX) 3/60/230V (FCA05E57D1S-A3L1XX) 3/60/460V (FCA05E57D1S-A4L1XX) |
| Overall Dimensions | 78" L x 27" W x 52" H |
| Shipping Weight | 910 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Single or Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 78" L x 27" W x 52" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 910 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CA5PLUS-D
FS-Curtis backs the CA5PLUS-D with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis CA5PLUS-D
Why Buy the CA5PLUS-D from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 5 HP (x2, Duplex), 120 Gallon Horizontal ASME tank, 37 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the CA5PLUS-D or the Atlas AF9-120H (7.5 HP, 120 Gal Horizontal) is the better fit? We’ll walk you through it.
