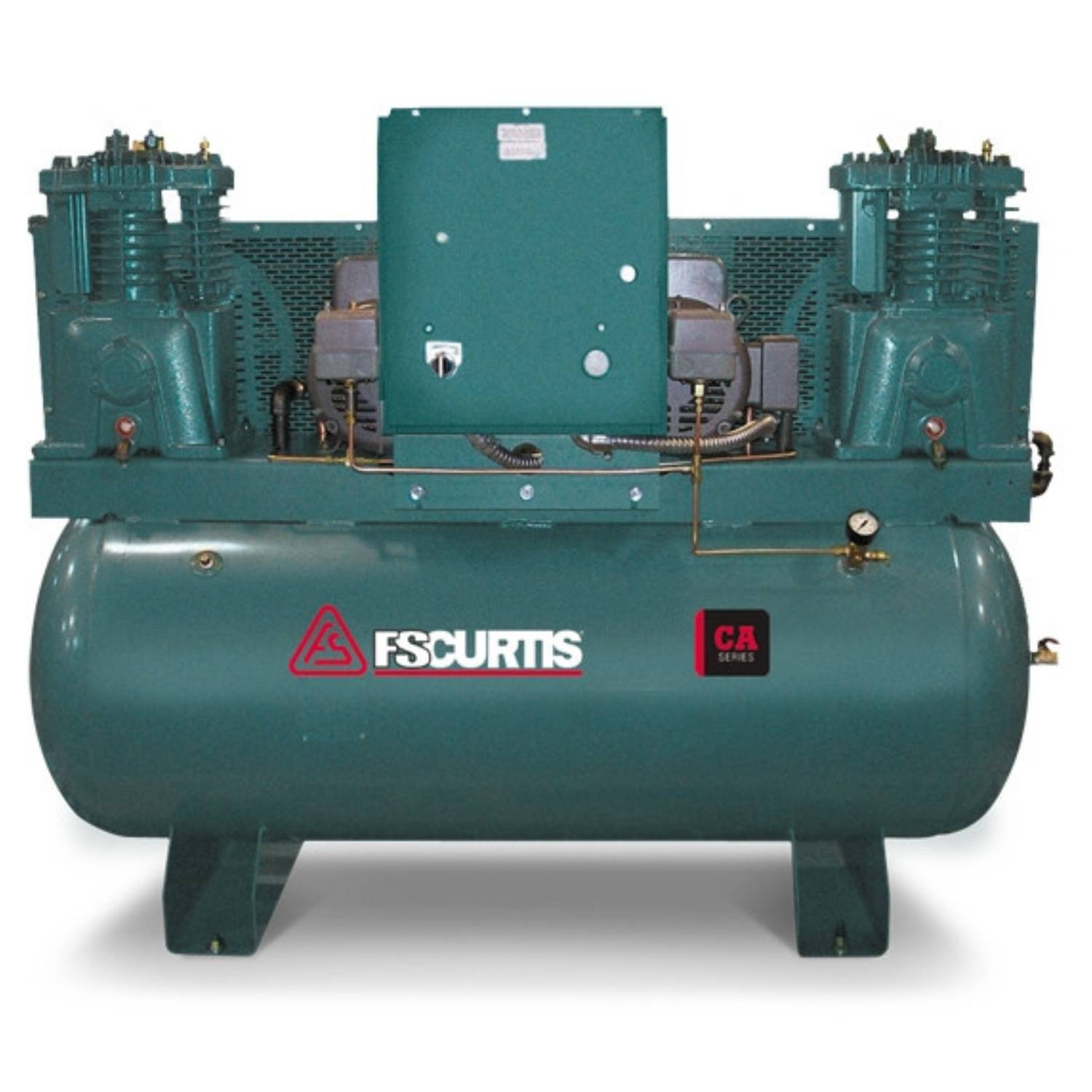

FS-Curtis CA5+ 120G Duplex 5(2)HP Ultra Pack Air Compressor #CA5Plus-DUP
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CA5+ Duplex Ultra Pack |
| Horsepower | 5 HP (x2, Duplex) |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 37 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis CA5PLUS-DUP — 5 HP (x2, Duplex) Air Compressor
A high-volume shop that can't tolerate downtime AND can't tolerate moisture in the air line — where both failures cost real money — needs redundancy and air-quality accessories solved together, not as two separate purchases down the road.
The FS-Curtis CA5PLUS-DUP is a duplex two-stage reciprocating, ultra pack compressor rated for 5 HP (x2, Duplex) with a 120 gallon horizontal ASME tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Ultra Pack — factory-installed automatic tank drain and refrigerated air dryer — cuts down on the maintenance routine so your team spends less time babysitting the compressor and more time on paying work.
Who the CA5PLUS-DUP Is Built For
- ✅ A high-volume collision or fleet shop where a compressor failure during a rush shift means every bay stops billing, and moisture in the line has already cost a paint job — needing both problems solved in one unit
- ✅ An operation standardizing on the CA5+ platform's top tier for its busiest or flagship location, wanting maximum uptime insurance and factory-installed air-quality accessories together
- ✅ A shop planning real growth over the next year or two that would rather buy the fully-equipped duplex Ultra Pack now than upgrade twice as demand increases
- ✅ A facility manager who's had to schedule downtime around a single compressor's maintenance and wants one pump serviceable while the second keeps a demanding operation running
- ✅ A multi-bay paint and finishing operation where both continuous air volume and moisture-free air quality directly affect job outcomes, not just tool performance
What the CA5PLUS-DUP Is NOT Built For
- ❌ Single-bay or small shops — this is the most expensive configuration in the CA5+ line and is overkill for lighter demand
- ❌ Budget-conscious buyers — the base CA5Plus-D duplex without Ultra Pack saves meaningfully if accessories aren't needed yet
- ❌ Shops with limited floor space — the largest footprint in the CA5+ line at 84" long
What Makes the CA5PLUS-DUP Different

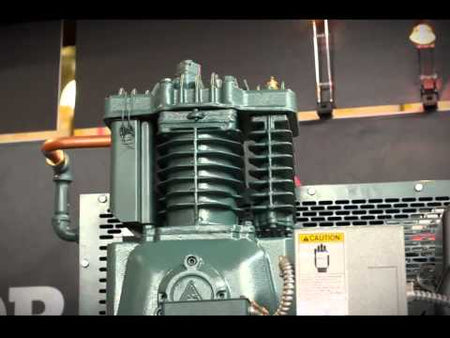

Commercial 2-Stage Pump
The CA5PLUS-DUP uses an E57 (x2), Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 37 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Ultra Pack Upgrades
Includes factory-installed automatic tank drain and refrigerated air dryer — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.
Power Requirements
Single or Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Redundancy + efficiency + accessories
- High-volume commercial shops
- Maximum headroom for growth
- Single-bay / small shops
- Budget-first buyers
CA5PLUS-DUP vs. Atlas AF9-120H (7.5 HP, 120 Gal Horizontal) — Which Compressor Is Right for Your Shop?
| Decision Point | CA5PLUS-DUP | Atlas AF9-120H (7.5 HP, 120 Gal Horizontal) |
|---|---|---|
| Horsepower / Tank | 5 HP x2 / 120 Gal Horizontal | 7.5 HP / 120 Gal Horizontal |
| CFM @ 175 PSI | 37 CFM | 22 CFM @ 175 PSI |
| Redundancy + accessories | Duplex pumps + Ultra Pack bundle (auto-drain/dryer) | Simplex, standard commercial configuration |
| Best fit | Highest-volume shops wanting redundancy and factory accessories together | Shops wanting a simpler single-pump setup at lower cost |
Choose the CA5+ DUP for the most fully-equipped, redundant setup in the CA5+ line. Choose the Atlas AF9-120H for a simpler single-pump 120-gallon setup at a lower price if you don't need redundancy or the Ultra Pack accessories. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CA5PLUS-DUP
| Model / Part Number | CA5+ Duplex Ultra Pack |
| Horsepower | 5 HP (x2, Duplex) |
| Pump | E57 (x2), Cast-Iron, Two-Stage |
| Configuration | Duplex Two-Stage Reciprocating, Ultra Pack |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 37 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Single or Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/230V (FCA05E57D1U-A2L1XX) Three Phase: 3/60/200-208V (FCA05E57D1U-A9L1XX) 3/60/230V (FCA05E57D1U-A3L1XX) 3/60/460V (FCA05E57D1U-A4L1XX) |
| Ultra Pack Features | factory-installed automatic tank drain and refrigerated air dryer |
| Overall Dimensions | 84" L x 30" W x 54" H |
| Shipping Weight | 975 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Single or Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 84" L x 30" W x 54" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 975 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CA5PLUS-DUP
FS-Curtis backs the CA5PLUS-DUP with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Ultra Pack accessories (auto tank drain, refrigerated air dryer) | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis CA5PLUS-DUP
Why Buy the CA5PLUS-DUP from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 5 HP (x2, Duplex), 120 Gallon Horizontal ASME tank, 37 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the CA5PLUS-DUP or the Atlas AF9-120H (7.5 HP, 120 Gal Horizontal) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
