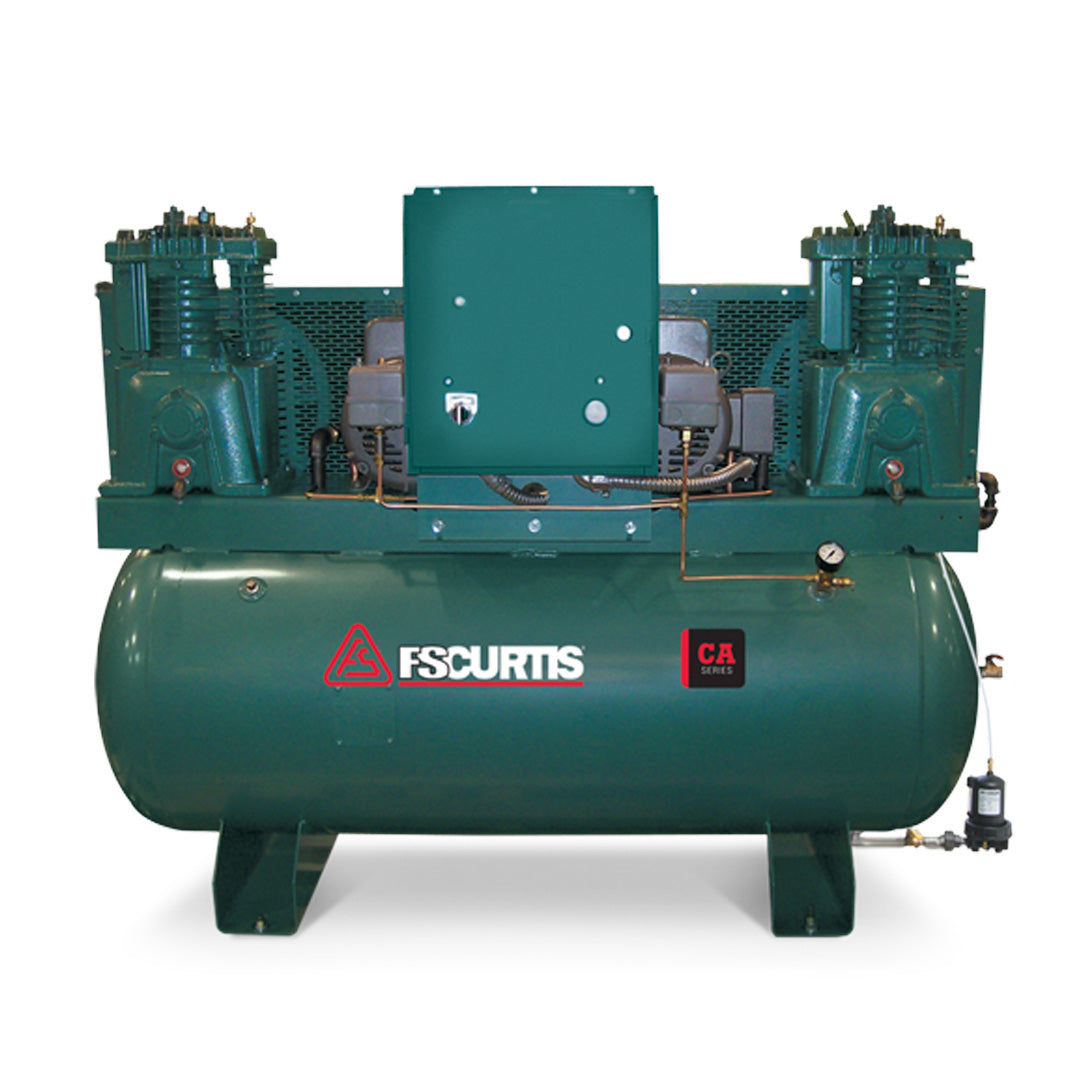

FS-Curtis CA7.5 120G Duplex 7.5(2)HP Ultra Pack Air Compressor #CA7.5-DUP
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CA7.5 Duplex Ultra Pack |
| Horsepower | 7.5 HP (x2, Duplex) |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 46.4 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis CA7.5-DUP — 7.5 HP (x2, Duplex) Air Compressor
The busiest 7.5 HP shops need both pump redundancy and the factory-installed air-quality accessories that keep a high-volume operation running without someone manually draining tanks between jobs.
The FS-Curtis CA7.5-DUP is a duplex two-stage reciprocating, ultra pack compressor rated for 7.5 HP (x2, Duplex) with a 120 gallon horizontal ASME tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Ultra Pack — factory-installed automatic tank drain and refrigerated air dryer — cuts down on the maintenance routine so your team spends less time babysitting the compressor and more time on paying work.
Who the CA7.5-DUP Is Built For
- ✅ A high-volume shop running 7.5 HP CA7.5 units that's already had a compressor failure shut down every bay at once, and won't risk that again without a second pump ready to take over
- ✅ Paint and finishing shops at the 7.5 HP tier where moisture in the air line is a real quality problem, needing both redundancy and factory air-quality accessories together
- ✅ A facility manager who's tired of scheduling maintenance downtime around a single compressor and wants one pump serviceable while the other keeps a demanding operation running
- ✅ An operator standardizing on FS-Curtis's top-tier Ultra Pack duplex configuration for the busiest or flagship location in a multi-bay group
- ✅ A shop planning real growth over the next year that would rather buy the fully-equipped duplex Ultra Pack now than upgrade twice as demand increases
What the CA7.5-DUP Is NOT Built For
- ❌ Single-bay or small shops — this is among the most expensive configurations in the CA7.5 line and is overkill for lighter demand
- ❌ Budget-conscious buyers — the base CA7.5-D duplex without Ultra Pack saves meaningfully if the accessories aren't needed yet
- ❌ Shops with limited floor space — the 120-gallon duplex tank has a larger footprint
What Makes the CA7.5-DUP Different
Commercial 2-Stage Pump

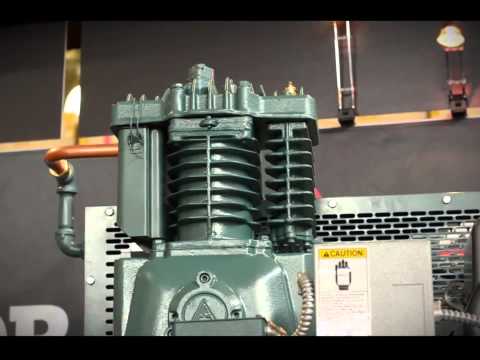

The CA7.5-DUP uses an E57 (x2), Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 46.4 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Ultra Pack Upgrades
Includes factory-installed automatic tank drain and refrigerated air dryer — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.
Power Requirements
Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Redundancy + factory accessories
- High-volume commercial shops
- Zero-downtime operations
- Single-bay / small shops
- Budget-first buyers
CA7.5-DUP vs. FS-Curtis CA10-D (10 HP Duplex, No Ultra Pack) — Which Compressor Is Right for Your Shop?
| Decision Point | CA7.5-DUP | FS-Curtis CA10-D (10 HP Duplex, No Ultra Pack) |
|---|---|---|
| Horsepower / Tank | 7.5 HP x2 / 120 Gal | 10 HP x2 / 120 Gal |
| CFM @ 175 PSI | 46.4 CFM | 68.4 CFM |
| Included accessories | Ultra Pack bundle (auto-drain/dryer per FS-Curtis config) | Standard configuration, no bundled accessories |
| Best fit | Shops wanting factory air-quality accessories at the 7.5 HP tier | Shops wanting more raw combined horsepower without the accessory bundle |
Choose the CA7.5-DUP for factory-installed air-quality accessories at a lower combined horsepower (and typically lower running cost). Choose the CA10-D if you want more raw CFM headroom and don't need the Ultra Pack accessories. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CA7.5-DUP
| Model / Part Number | CA7.5 Duplex Ultra Pack |
| Horsepower | 7.5 HP (x2, Duplex) |
| Pump | E57 (x2), Cast-Iron, Two-Stage |
| Configuration | Duplex Two-Stage Reciprocating, Ultra Pack |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 46.4 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/230V (FCA07E57D1U-A2L1XX) Three Phase: 3/60/200-208V (FCA07E57D1U-A9L1XX) 3/60/230V (FCA07E57D1U-A3L1XX) 3/60/460V (FCA07E57D1U-A4L1XX) |
| Ultra Pack Features | factory-installed automatic tank drain and refrigerated air dryer |
| Overall Dimensions | 78" L x 31" W x 53" H |
| Shipping Weight | 995 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 78" L x 31" W x 53" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 995 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CA7.5-DUP
FS-Curtis backs the CA7.5-DUP with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Ultra Pack accessories (auto tank drain, refrigerated air dryer) | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis CA7.5-DUP
Why Buy the CA7.5-DUP from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 7.5 HP (x2, Duplex), 120 Gallon Horizontal ASME tank, 46.4 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the CA7.5-DUP or the FS-Curtis CA10-D (10 HP Duplex, No Ultra Pack) is the better fit? We’ll walk you through it.
