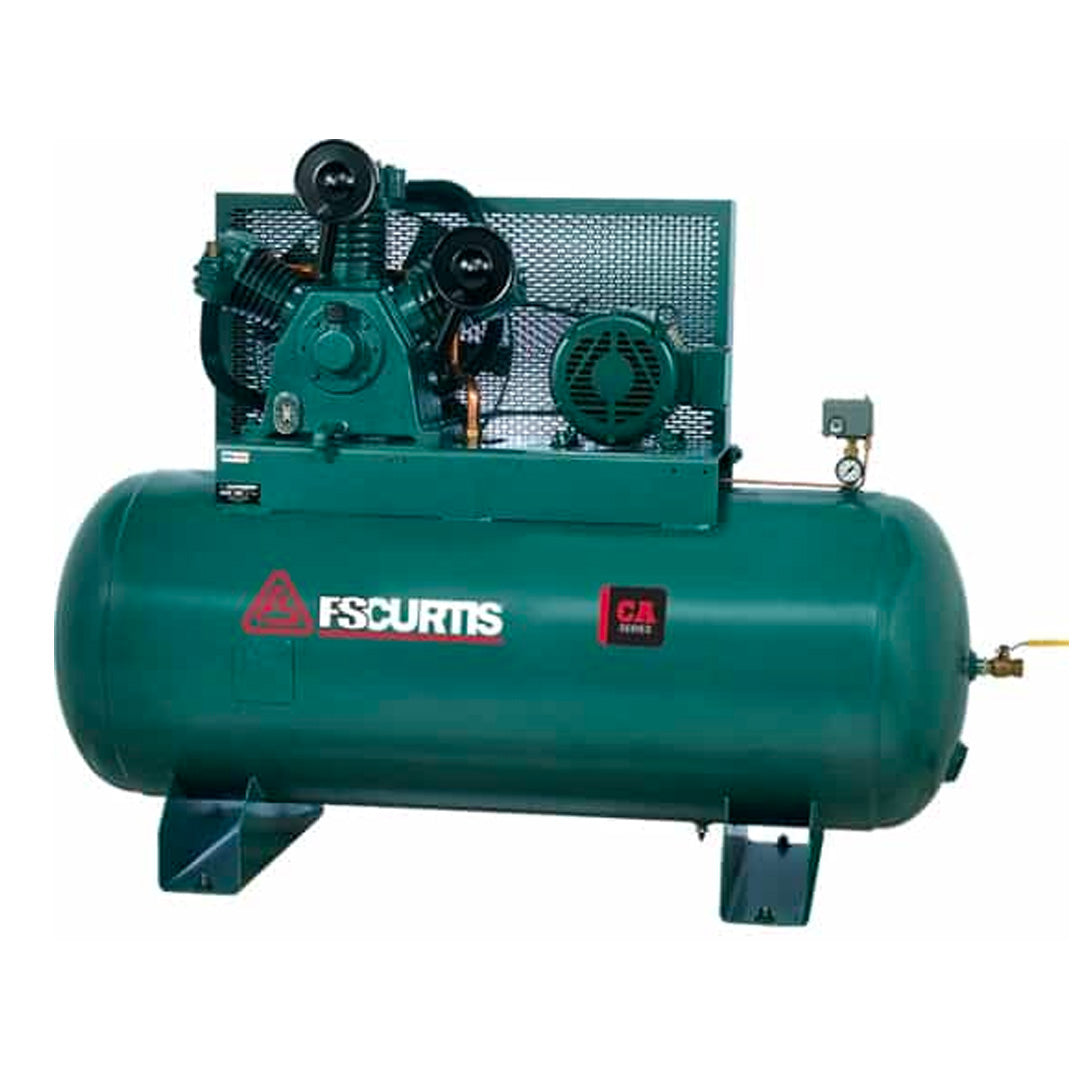

FS-Curtis CA7.5 80G 7.5HP Horizontal Simplex Air Compressor #CA7.5-H
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CA7.5-H |
| Horsepower | 7.5 HP |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 23.2 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis CA7.5-H — 7.5 HP Air Compressor
Shops that need the extra output of a 7.5 HP pump but don't have the ceiling clearance for a tall vertical tank get both in this horizontal configuration — no compromise between capacity and where it physically fits.
The FS-Curtis CA7.5-H is a two-stage reciprocating compressor rated for 7.5 HP with an 80 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the CA7.5-H Is Built For
- ✅ A shop working in a converted space with a low drop ceiling that's also outgrown a 5 HP compressor's output, needing both the extra CFM and the horizontal tank's low clearance at once
- ✅ A multi-tech operation running 2-3 air tools simultaneously where an undersized compressor means someone's tool starts losing pressure mid-job
- ✅ An owner who's outgrown the CA5/CA5+ line's output but doesn't yet need the cost and footprint of a full duplex setup
- ✅ A shop tucking the compressor under a mezzanine or raised storage platform where the low horizontal tank fits under the structure without cutting a notch, even at the higher 7.5 HP tier
- ✅ A general repair or commercial shop standardizing on FS-Curtis's CA Series and stepping up a tier as its air demand has grown past what a 5 HP unit can reliably support
What the CA7.5-H Is NOT Built For
- ❌ Single-bay or home garage use — a 5 HP or smaller portable unit is more cost-effective
- ❌ Shops needing more than roughly 23-24 CFM continuous or wanting redundancy — look at a duplex configuration instead
- ❌ Budget-first buyers who don't yet need the extra HP over a 5 HP CA5/CA5+ unit
What Makes the CA7.5-H Different
Commercial 2-Stage Pump

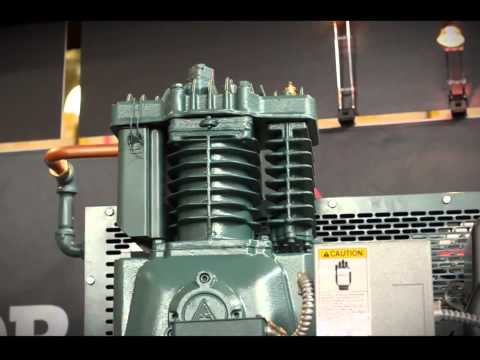

The CA7.5-H uses an E57, Cast-Iron, Two-Stage, 2-Cylinder pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 23.2 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Single or Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- 7.5 HP in a low-clearance tank
- Multi-tech simultaneous draw
- No vertical height needed
- Home garages / occasional use
- Shops needing full duplex redundancy
CA7.5-H vs. Atlas AF8P (5 HP, 80 Gal, w/ Plus Package) — Which Compressor Is Right for Your Shop?
| Decision Point | CA7.5-H | Atlas AF8P (5 HP, 80 Gal, w/ Plus Package) |
|---|---|---|
| Horsepower / Tank | 7.5 HP / 80 Gal Horizontal | 5 HP / 80 Gal |
| CFM @ 175 PSI | 23.2 CFM | 19 CFM @ 175 PSI |
| Included accessories | Standard configuration, no bundled accessories | Plus Package (auto low-oil monitor, auto tank drain, aftercooler) |
| Best fit | Shops wanting more raw horsepower at the same 80-gallon tank size | Shops prioritizing factory accessories over extra HP |
Choose the CA7.5-H for more raw horsepower and CFM headroom in a low-clearance horizontal tank. Choose the Atlas AF8P if the Plus Package's auto-drain and low-oil monitoring matter more than the extra 2.5 HP. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CA7.5-H
| Model / Part Number | CA7.5-H |
| Horsepower | 7.5 HP |
| Pump | E57, Cast-Iron, Two-Stage, 2-Cylinder |
| Configuration | Two-Stage Reciprocating |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 23.2 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Single or Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/230V (FCA07E57H8S-A2L1XX) Three Phase: 3/60/200-208V (FCA07E57H8S-A9L1XX) 3/60/230V (FCA07E57H8S-A3L1XX) 3/60/460V (FCA07E57H8S-A4L1XX) |
| Overall Dimensions | 69" L x 24" W x 47" H |
| Shipping Weight | 530 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Single or Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 69" L x 24" W x 47" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 530 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CA7.5-H
FS-Curtis backs the CA7.5-H with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis CA7.5-H
Why Buy the CA7.5-H from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 7.5 HP, 80 Gallon Horizontal ASME tank, 23.2 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the CA7.5-H or the Atlas AF8P (5 HP, 80 Gal, w/ Plus Package) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
