FS-Curtis CT Series CT75 5-7.5HP Basic Pump #FCT75
FS Curtis shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
Couldn't load pickup availability
| Part Number | FCT75 |
| HP | 5-7.5 HP |
| CFM Rating | 29 CFM @ 175 PSI |
| Configuration | Splash-Lubricated, Cast Iron |
| Discharge Size | 3/4" NPT |
| Oil Capacity | 3 quarts |

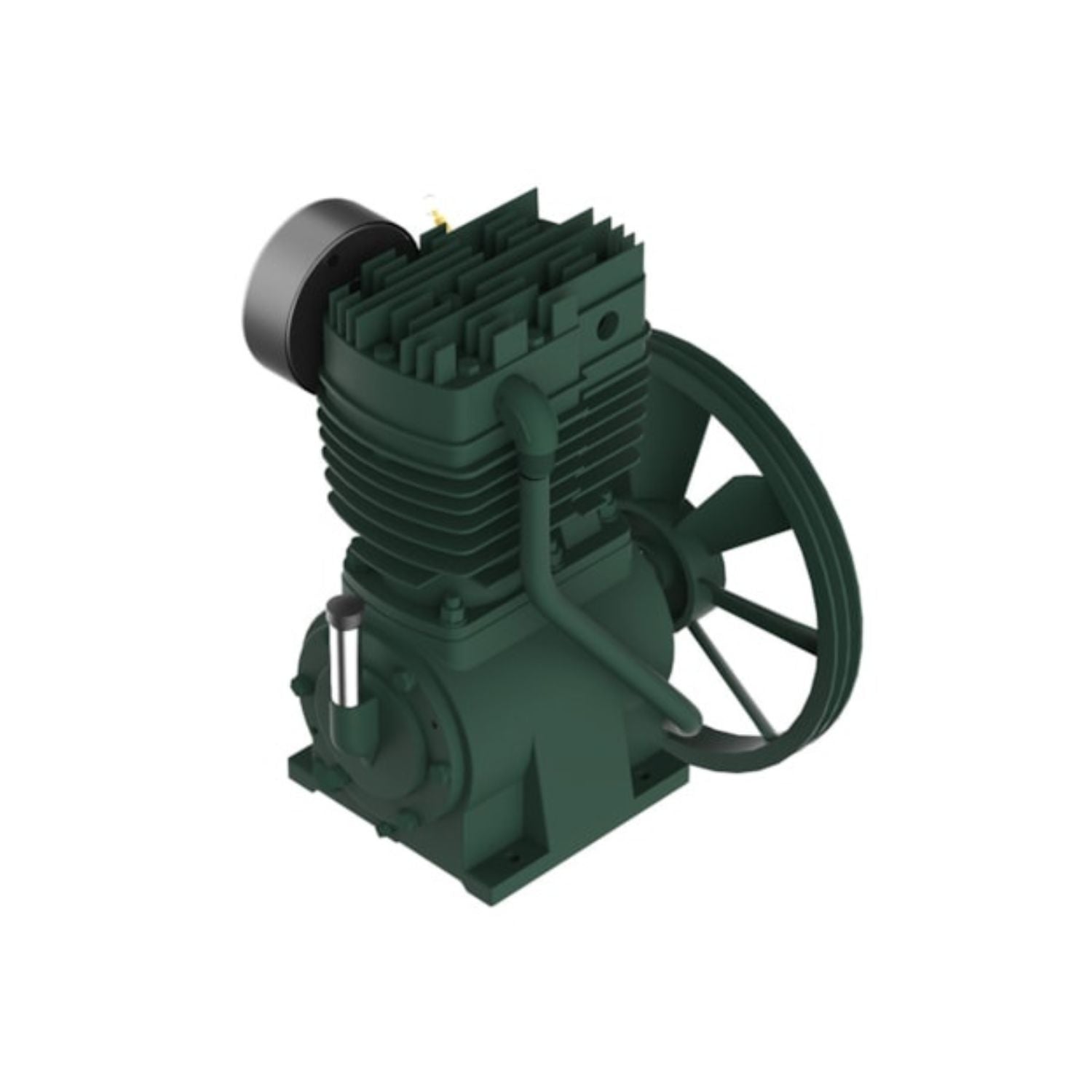

FS-Curtis CT Series CT75 5-7.5HP Basic Pump #FCT75
Bare replacement pump for the FS-Curtis CT Series 5-7.5HP compressor line, rated 29 CFM @ 175 PSI. Steps up from the CT55 with a stainless steel channel valve, Load Genie check valve, and a larger 3/4" NPT inlet for higher output.
Sold as a bare pump only — for compressor rebuilds, custom air compressor builds, or replacing a worn-out pump on an existing CT75-equipped unit. It ships without a tank or motor, so plan on mounting it onto an existing tank/motor assembly.
Ships by freight. Add to cart and enter your ZIP for a freight quote, or call us.
Need help confirming the FCT75 is the right replacement pump? Call (817) 865-3707. Have the FCT75 part number ready when you call so we can match it to your setup.
Frequently Asked Questions
Shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the freight method and total before sending a payment link.
See the attached document for FS CURTIS WARRANTY
