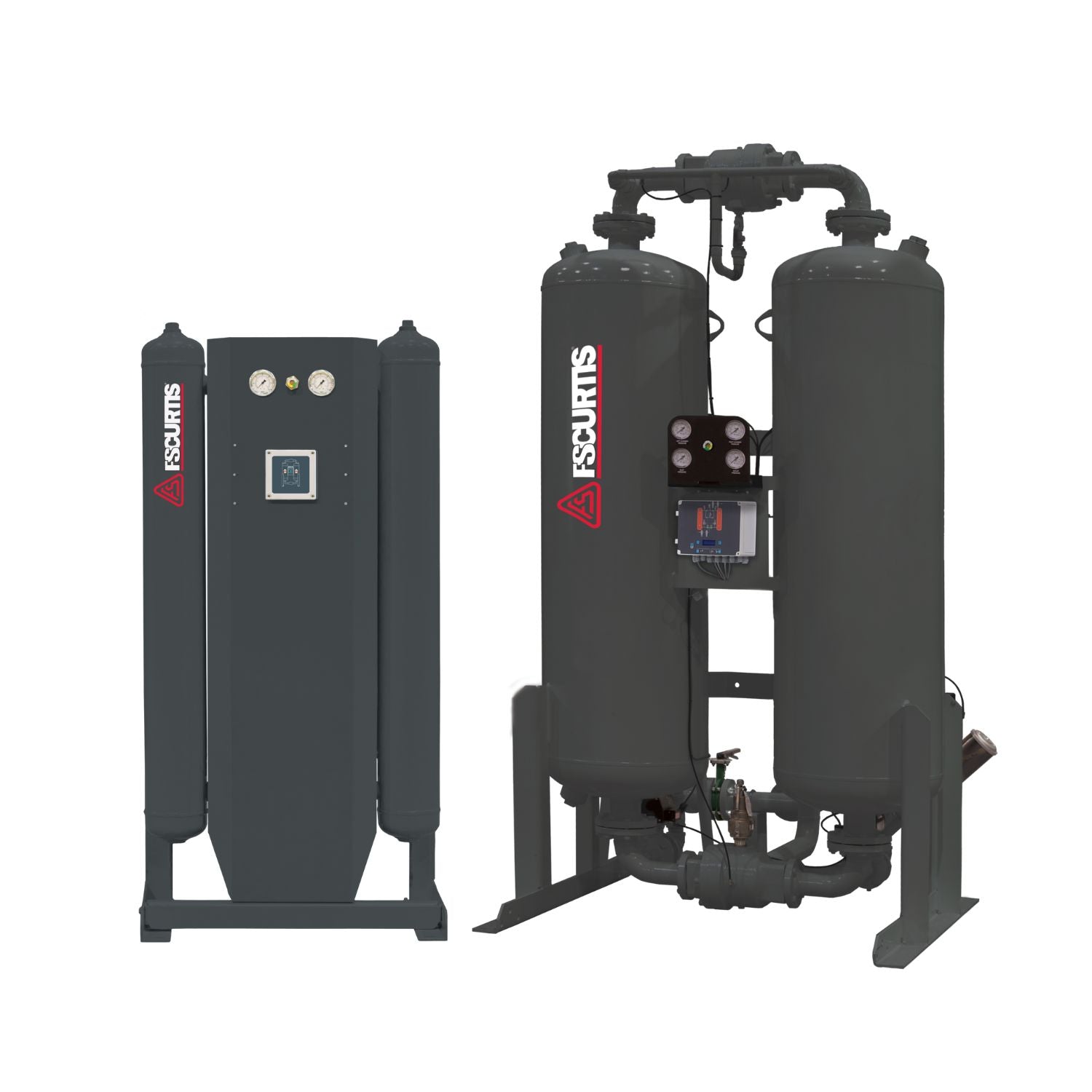

FS-Curtis DLX930 Heatless Desiccant Air Dryer #DLX930
Couldn't load pickup availability
-
DESCRIPTION
The FS-Curtis DLX930 Heatless Desiccant Air Dryer #DLX930 is engineered to deliver dependable, ultra-dry compressed air for industrial applications where performance and efficiency are critical. Designed for variable-demand systems, the DLX930 provides consistent, low-dew-point air while optimizing operating efficiency to help reduce long-term energy costs. Built on proven heatless desiccant drying technology and advanced system control, this dryer is ideal for manufacturing, automotive, and industrial environments that require reliable moisture removal and stable compressed air quality.
DLX Series Coda Controller with Automatic Sensatherm Energy Savings
DLX Series Coda Controller with Sensatherm automatically matches purge air usage to system demand. This ensures maximum performance, and the energy savings go right to your bottom line. The Coda Controller features a large, high-resolution touchscreen backed by a powerful microprocessor controller with robust communication capability for your IOT application.
-
FEATURES + BENEFITS
FS-Curtis DL desiccant dryers are available with three application-specific control systems. No matter what your application, there’s a control system just right for your needs. FS-Curtis DL heatless desiccant dryers deliver consistent outlet pressure dew points to -100˚F. By combining the proven benefits of desiccant drying technology with the industry-leading design, FS-Curtis’ DL dryers provide the most reliable compressed air drying system for various applications.
- Up-flow drying, which allows water and heavy contaminants to drop out of the air stream
- Premium grade desiccant beads enhance surface area, require minimum purge air, and have high crush strength
- ASME and CRN certified pressure vessels
- An optional pre-mounted filtration package increases the lifetime of the desiccant and avoids system contamination
- Precision switch valves automatically shift to the low-pressure side of the circuit to control process flow
-
SPECIFICATIONS
Model Number DLX930 Inlet Flow scfm 930 Standard Voltage 115/1/60 Maximum Operating Pressure 150 psig standard; (250 psig available,
please contact Alamo Equipment)Connections (in.) 2” NTP Dimensions 112" H x 63" W x 59" D Weight (lbs.) 2,414 Replacement Desiccant (lbs.) 1,180 Note: Replacement Desiccant: Premium Grade Activated Alumina AA-4, 1/8” Desiccant; weight is for two towers
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
