FS-Curtis E57 Basic Compressor Pump #FE57AB
| Part Number | FE57AB |
| Pump Model | E57 |
| Product Type | Basic Reciprocating Compressor Pump with Flywheel |
| Compression | Two-Stage |
| Horsepower Range | 5 - 7.5 HP |
| Construction | Cast-Iron Cylinders and Cylinder Heads |
| Lubrication | Splash Lubricated |
| Intercooling | Finned Intercooler |
| Documented CA Series Applications | CA5+ and CA7.5 |

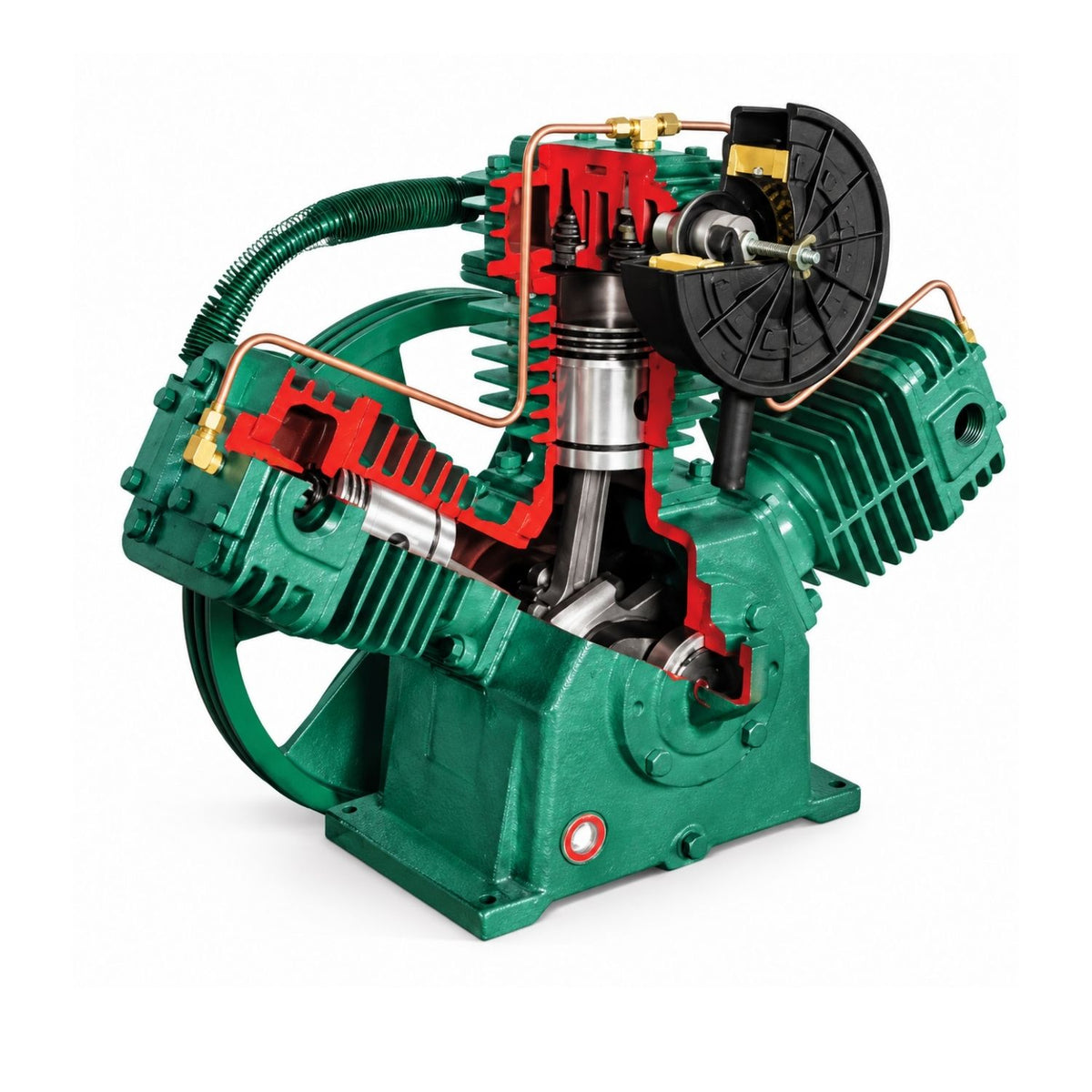

FS-Curtis E57 Basic Compressor Pump #FE57AB
FS-Curtis FE57AB is the E57 basic two-stage reciprocating compressor pump for compatible FS-Curtis CA Series compressor packages. The E57 pump is used in current CA5+ 5 HP and CA7.5 7.5 HP configurations and is available as a replacement pump assembly with flywheel.
The E57 follows the heavy-duty CA Series pump design, including cast-iron cylinders and cylinder heads, splash lubrication, industrial-grade main roller bearings, a stainless-steel valve system, finned intercooling, and suction-valve head unloaders.
Product Features
- Two-stage reciprocating compressor pump
- Designed for 5 to 7.5 HP applications
- Cast-iron cylinder and cylinder-head construction
- Splash-lubricated design
- Industrial-grade main roller bearings
- Heavy-duty stainless-steel valve system
- Finned intercooler for two-stage compression
- Suction-valve head unloaders
- Replacement basic pump supplied with flywheel
Compatibility & Fitment
FS-Curtis currently uses the E57 pump in multiple CA Series configurations. Pump compatibility should be confirmed by the complete compressor model and serial number because drive speed, motor horsepower, control arrangement, and package configuration vary between compressors.
| CA Series | Power | Pump |
|---|---|---|
| CA5+ | 5 HP | E57 |
| CA7.5 | 7.5 HP | E57 |
FS-Curtis also uses the E57 pump in selected duplex and gas-driven CA Series configurations. Confirm the exact compressor model and serial number rather than selecting a pump by horsepower alone.
Before Installation
- Confirm the complete compressor model and serial number.
- Verify that the existing compressor uses the E57 pump family.
- Confirm motor horsepower and existing drive configuration.
- Follow the applicable FS-Curtis installation and service procedures.
- Set belt alignment and tension according to the compressor manufacturer's requirements.
