FS-Curtis ML Series D96 5-7.5HP Basic Pump #FMLD96
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
FS Curtis shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
Couldn't load pickup availability
| Part Number | FMLD96 |
| HP | 5-7.5 HP |
| Configuration | Centro-Ring Pressure-Lubricated, 100% Cast Iron |
| Discharge Size | 1" NPT |
| Oil Capacity | 2 quarts |
| RPM Range | 500-800 |
| Flywheel Configuration | 2A |
| Dimensions | 17" L x 18" W x 26" H |
| Shipping Weight | 190 lbs |

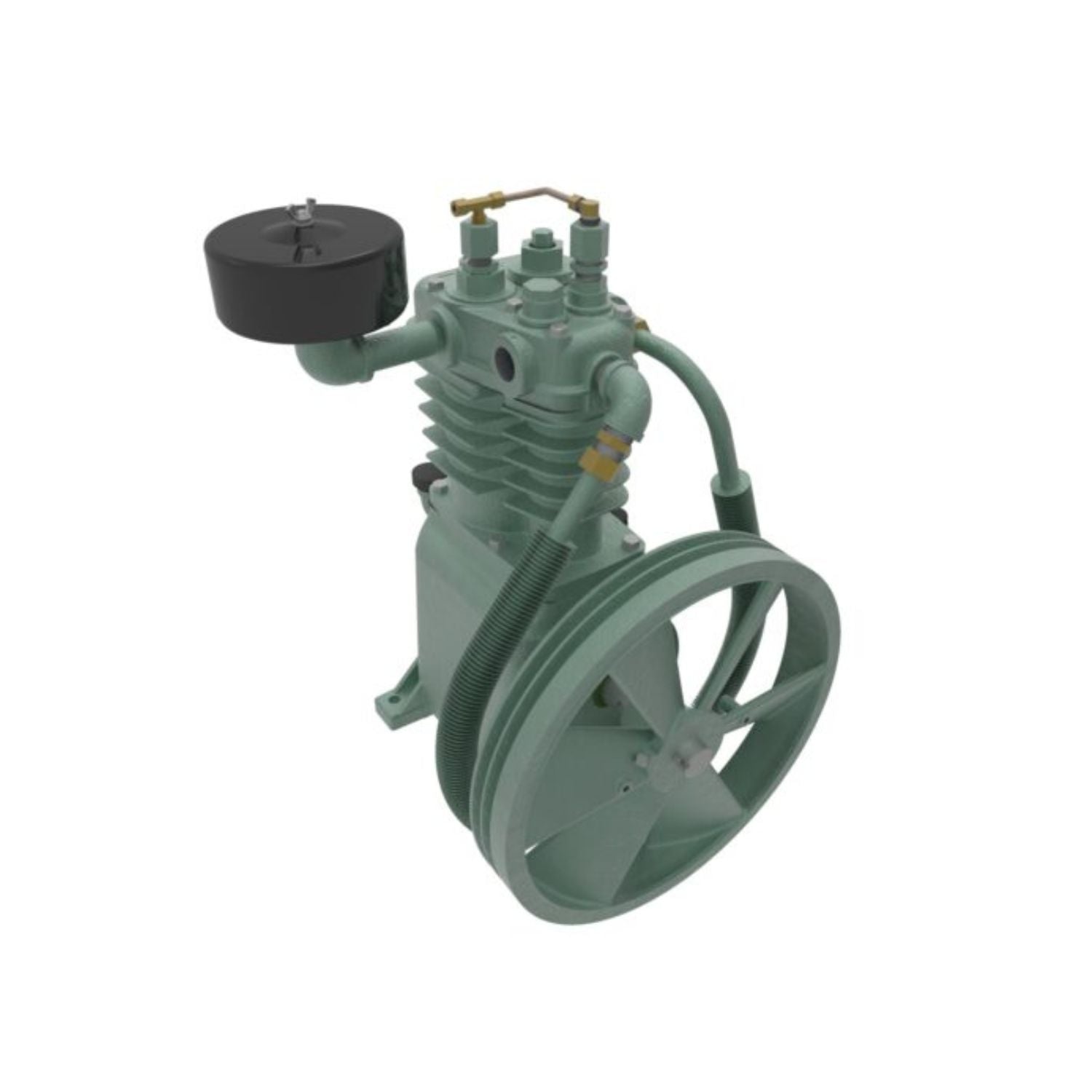

FS-Curtis ML Series D96 5-7.5HP Basic Pump #FMLD96
Bare replacement pump for the FS-Curtis ML Series 5-7.5HP Masterline compressor line. Uses FS-Curtis's patented Centro-Ring pressure lubrication, which supplies pressurized oil internally to all bearings and critical wear surfaces through a rifle-drilled crankshaft and connecting rods — built for longer service life than splash-lubricated pumps.
Sold as a bare pump only — for compressor rebuilds, custom air compressor builds, or replacing a worn-out pump on an existing ML5-equipped unit. There's no tank or motor included, so it has to be installed onto an existing tank/motor assembly.
Ships by freight. Add to cart and enter your ZIP for a freight quote, or call us.
Questions before ordering the FMLD96? Reach out at (817) 865-3707. Give us the FMLD96 part number on the call so we can verify fit before you order.
Frequently Asked Questions
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
See the attached document for FS CURTIS WARRANTY
