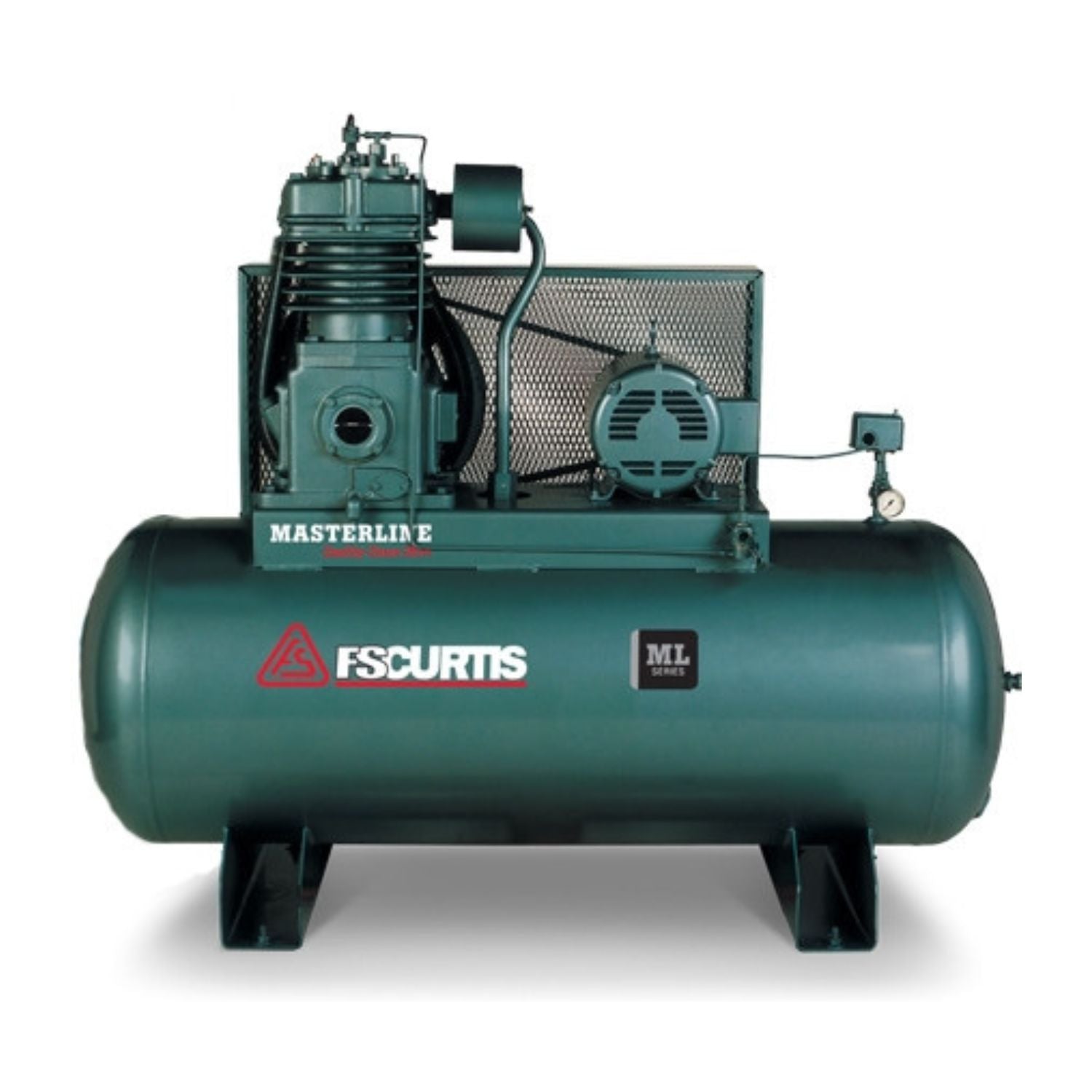

FS-Curtis ML10 120G Horizontal 10HP Simplex Tank Electric Air Compressor #ML10-SH
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML10-SH |
| Horsepower | 10 HP |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 39.8 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML10-SH — 10 HP Air Compressor
A commercial shop that's just added a second and third bay has watched its compressor's tank empty faster than it recovers once two techs pull air at the same time — that's the moment an owner realizes a smaller CA-series unit has run out of headroom and it's time to step up to the ML Series' industrial pump platform.
The FS-Curtis ML10-SH is a two-stage reciprocating compressor rated for 10 HP with a 120 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the ML10-SH Is Built For
- ✅ A multi-bay commercial shop that's outgrown the CA-series output and needs the ML Series' heavier-duty pump platform, but doesn't need the Ultra Pack accessories yet
- ✅ An owner replacing a worn compressor who wants the lower entry price of a base configuration and plans to add accessories later if needed
- ✅ A shop with an existing air dryer or filtration system already installed that doesn't need factory-bundled accessories duplicating what's already in place
- ✅ A commercial operation running several bays simultaneously that needs sustained 40 CFM output without the added cost of Ultra Pack extras
- ✅ A shop standardizing on FS-Curtis's ML Series for parts and service commonality, starting with the base tier
What the ML10-SH Is NOT Built For
- ❌ Single-bay or smaller shops — the CA5/CA7.5/CA10 line covers lighter demand at a lower price
- ❌ Shops wanting factory auto-drain/dryer accessories standard — the Ultra Pack (ML10-HUP) adds those, this base unit doesn't
- ❌ Shops needing 120V/240V single-phase power — this series is three-phase only
What Makes the ML10-SH Different
Commercial 2-Stage Pump
The ML10-SH uses a D97, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 39.8 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Three-Phase only, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Higher CFM at lower entry price
- ML Series industrial pump platform
- Multi-bay commercial shops
- Single-bay / smaller shops
- Single-phase-only electrical
ML10-SH vs. FS-Curtis CA10-VUP (10 HP, 120 Gal Vertical, Ultra Pack) — Which Compressor Is Right for Your Shop?
| Decision Point | ML10-SH | FS-Curtis CA10-VUP (10 HP, 120 Gal Vertical, Ultra Pack) |
|---|---|---|
| Horsepower / Tank | 10 HP / 120 Gal Horizontal | 10 HP / 120 Gal Vertical |
| CFM @ 175 PSI | 39.8 CFM | 34.2 CFM |
| Included accessories | Standard configuration, no bundled accessories | Ultra Pack bundle (auto-drain/dryer) |
| Best fit | Shops wanting more CFM at a lower entry price | Shops wanting factory air-quality accessories included |
Choose the ML10-SH for more CFM output at a lower entry price if you don't need bundled accessories. Choose the FS-Curtis CA10-VUP if factory-installed air-quality accessories matter more than raw CFM. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML10-SH
| Model / Part Number | ML10-SH |
| Horsepower | 10 HP |
| Pump | D97, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 39.8 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase only, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FML10D97H1S-A9L1XX) |
| Overall Dimensions | 72" L x 28" W x 58" H |
| Shipping Weight | 1055 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase only, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 72" L x 28" W x 58" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 1055 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML10-SH
FS-Curtis backs the ML10-SH with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML10-SH
Why Buy the ML10-SH from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 10 HP, a 120 gallon horizontal ASME tank, 39.8 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML10-SH or the FS-Curtis CA10-VUP (10 HP, 120 Gal Vertical, Ultra Pack) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
