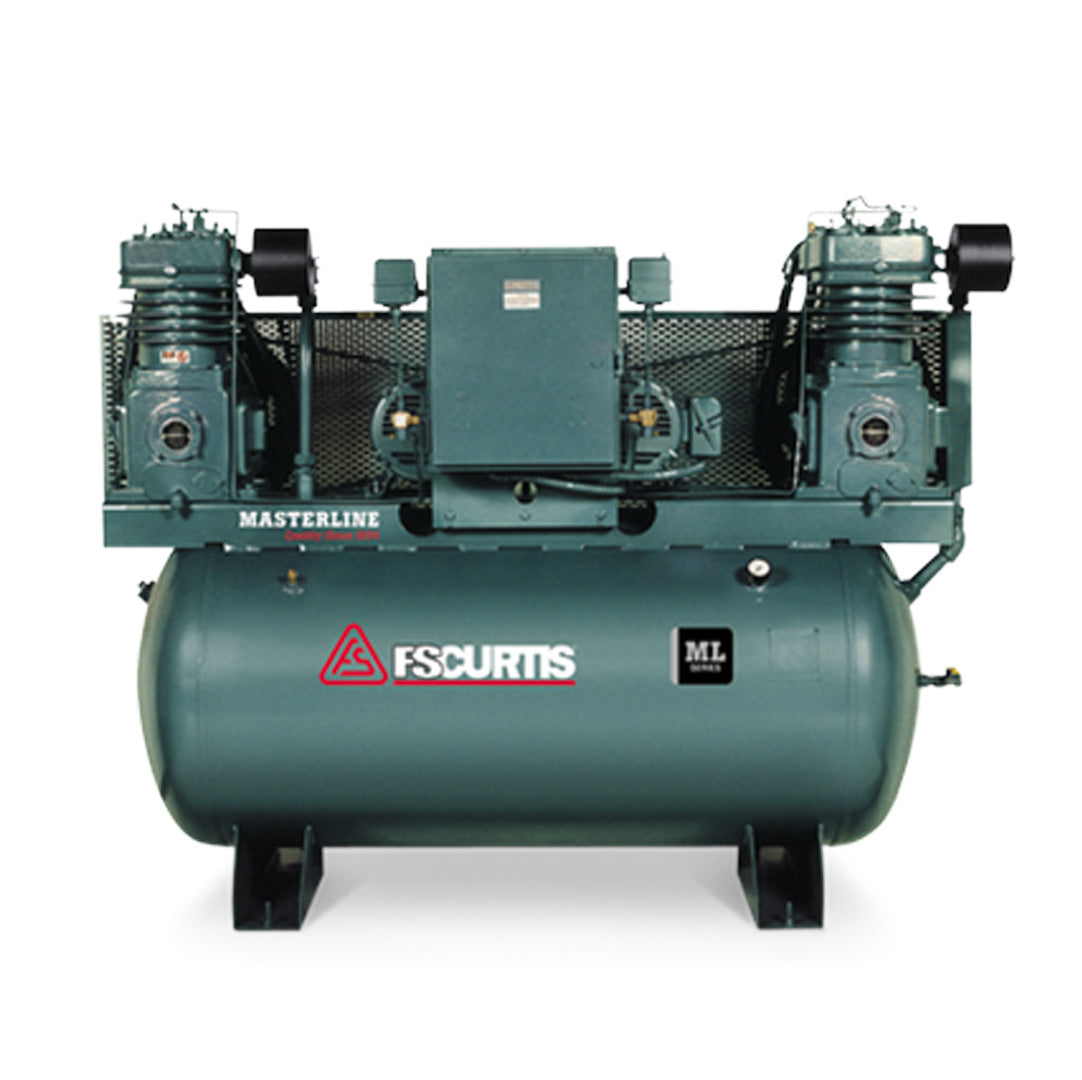

FS-Curtis ML10 200G 10HP(2) Duplex Tank Mounted Electric Air Compressor #ML10-D
Couldn't load pickup availability
| Model / Part Number | ML10 Duplex |
| Horsepower | 10 HP (x2, Duplex) |
| Tank | 200 Gallon Horizontal ASME |
| Airflow | 79.6 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML10-D — 10 HP (x2, Duplex) Air Compressor
A commercial operation that can't tolerate a compressor going down mid-shift needs two independent 10 HP pumps sharing one tank — if one needs service, the second keeps the whole facility running.
The FS-Curtis ML10-D is a duplex two-stage reciprocating compressor rated for 10 HP (x2, Duplex) with a 200 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the ML10-D Is Built For
- ✅ A large commercial or fleet operation where compressed air downtime stops multiple bays at once and a second pump keeping the shop running pays for itself the first time it's needed
- ✅ A facility running continuous high-draw demand across several bays or booths simultaneously that a single 10 HP pump can't sustain alone
- ✅ An operator who's had a single-compressor setup fail during a busy shift and doesn't want to repeat that at a higher-volume facility
- ✅ A shop planning to add more bays or techs and wanting real headroom now instead of upgrading again later
- ✅ A commercial operation standardizing on FS-Curtis's ML Series for the largest, highest-demand location in a multi-shop group
What the ML10-D Is NOT Built For
- ❌ Single-bay or mid-size shops where a simplex 10 HP unit (ML10-SH) already covers the air draw
- ❌ Budget-conscious buyers — duplex units cost significantly more than a simplex configuration at the same HP
- ❌ Shops with limited floor space — the 200-gallon duplex tank has the largest footprint in the ML10 line
What Makes the ML10-D Different
Commercial 2-Stage Pump
The ML10-D uses a D97 (x2), Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 79.6 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Three-Phase only, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Built-in pump redundancy
- 79.6 CFM combined output
- Large multi-bay facilities
- Single-bay / mid-size shops
- Tight floor space
ML10-D vs. FS-Curtis CA10-VUP (10 HP, 120 Gal Vertical, Ultra Pack) — Which Compressor Is Right for Your Shop?
| Decision Point | ML10-D | FS-Curtis CA10-VUP (10 HP, 120 Gal Vertical, Ultra Pack) |
|---|---|---|
| Horsepower / Tank | 10 HP x2 / 200 Gal Horizontal | 10 HP / 120 Gal Vertical |
| CFM @ 175 PSI | 79.6 CFM | 34.2 CFM |
| Redundancy | Duplex — two independent pumps, built-in backup | Simplex — single pump, no built-in redundancy |
| Best fit | Facilities needing uptime guarantees / continuous high-volume draw | Shops wanting a smaller footprint without duplex cost |
Choose the ML10-D when redundancy and raw CFM output matter more than footprint or price. Choose the FS-Curtis CA10-VUP for a simpler simplex setup at a much lower price if uptime redundancy isn't required. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML10-D
| Model / Part Number | ML10 Duplex |
| Horsepower | 10 HP (x2, Duplex) |
| Pump | D97 (x2), Cast-Iron, Two-Stage |
| Configuration | Duplex Two-Stage Reciprocating |
| Tank | 200 Gallon Horizontal ASME |
| Airflow | 79.6 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase only, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FML10D97D2S-A9L1XX) |
| Overall Dimensions | 88" L x 32" W x 64" H |
| Shipping Weight | 2600 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase only, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 88" L x 32" W x 64" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 2600 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML10-D
FS-Curtis backs the ML10-D with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML10-D
Why Buy the ML10-D from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 10 HP (x2, Duplex), a 200 gallon horizontal ASME tank, 79.6 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML10-D or the FS-Curtis CA10-VUP (10 HP, 120 Gal Vertical, Ultra Pack) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
