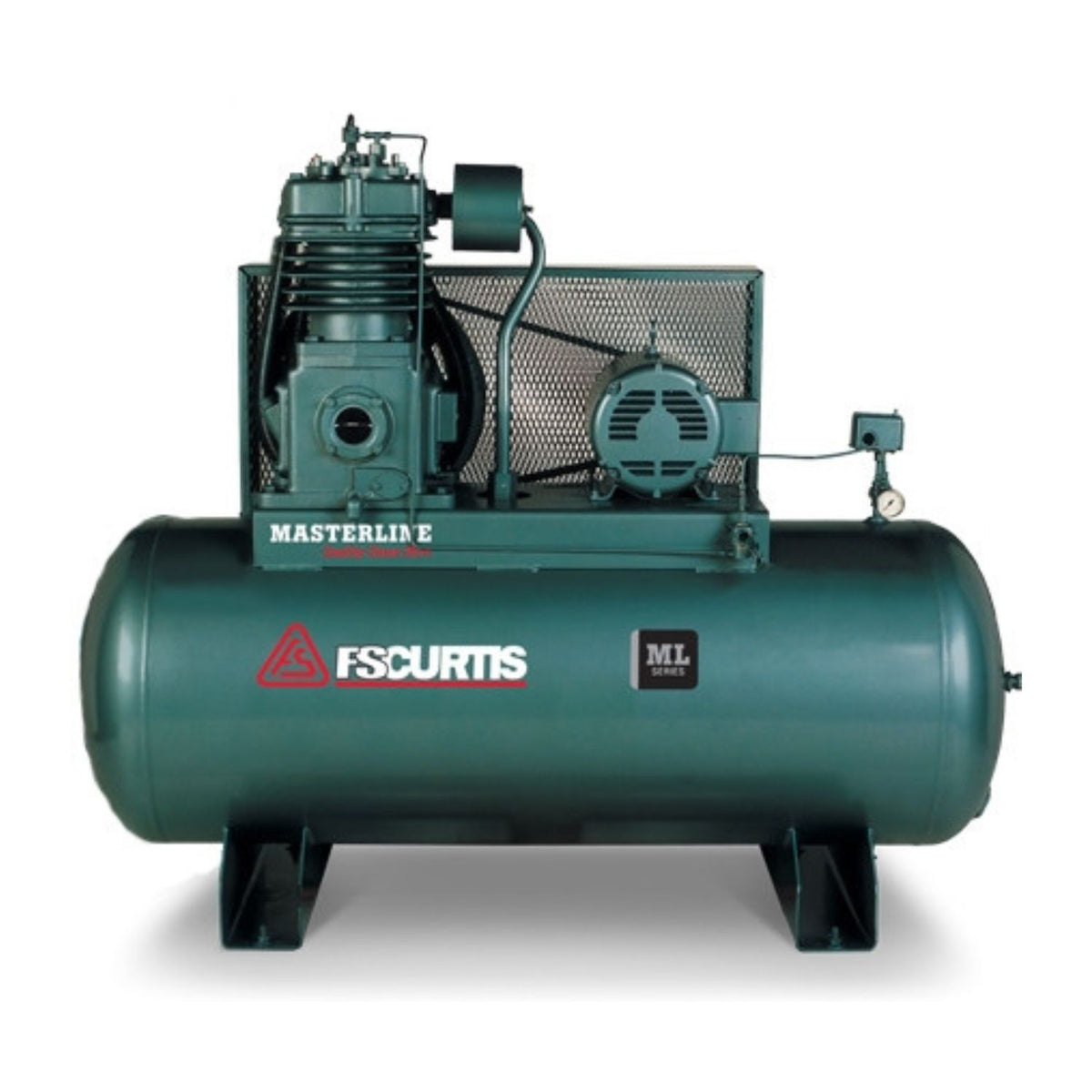

FS-Curtis ML20 120G Horizontal 20HP Simplex Tank Electric Air Compressor #ML20-SH
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML20 Simplex |
| Horsepower | 20 HP |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 65.1 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML20-SH — 20 HP Air Compressor
A production line supervisor has watched a 15 HP compressor lose pressure every time the second and third pneumatic stations run at once — the facility just needs the extra CFM of the 20 HP tier, since maintenance already handles the tank drain manually and doesn't want that changed.
The FS-Curtis ML20-SH is a two-stage reciprocating compressor rated for 20 HP with a 120 gallon horizontal ASME tank, built for shops and commercial operations running compressed air all day, in a base configuration that keeps the upfront cost down.
Who the ML20-SH Is Built For
- ✅ A production facility that's watched a 15 HP compressor lose pressure under real multi-station demand and needs the extra CFM headroom of the 20 HP tier
- ✅ A facility with an existing air dryer or filtration system already installed, not needing factory-bundled accessories duplicating what's in place
- ✅ An operation wanting the lower entry price of a base configuration with the option to add accessories later if demand changes
- ✅ A commercial shop replacing an aging compressor that's started struggling under real daily multi-tool load
- ✅ A facility standardizing on FS-Curtis's ML Series for parts and service commonality, starting at the base 20 HP tier
What the ML20-SH Is NOT Built For
- ❌ Smaller shops whose demand is fully covered by a 10-15 HP unit — the ML10/ML15 line saves real money if 65 CFM isn't needed
- ❌ Shops wanting factory auto-drain/dryer accessories standard — the Ultra Pack (ML20-HUP) adds those, this base unit doesn't
- ❌ Facilities needing 120V/240V single-phase power — this unit is three-phase only
What Makes the ML20-SH Different
Commercial 2-Stage Pump
The ML20-SH uses a C89, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Puts out 65.1 CFM @ 175 PSI, holding up to 175 PSI — enough capacity to run impact wrenches, tire equipment, and paint tools without the compressor falling behind.
Power Requirements
Three-Phase only, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- 65.1 CFM at 20 HP
- Lower entry price, no bundled accessories
- Multi-station production facilities
- Shops covered by 10-15 HP
- Single-phase-only electrical
ML20-SH vs. FS-Curtis ML20-HUP (20 HP, Ultra Pack) — Which Compressor Is Right for Your Shop?
| Decision Point | ML20-SH | FS-Curtis ML20-HUP (20 HP, Ultra Pack) |
|---|---|---|
| Horsepower / Tank | 20 HP / 120 Gal Horizontal | 20 HP / 120 Gal Horizontal |
| CFM @ 175 PSI | 65.1 CFM | 65.1 CFM |
| Included accessories | Standard configuration, no bundled accessories | Ultra Pack bundle (auto-drain/dryer) |
| Best fit | Facilities wanting more CFM at a lower entry price | Facilities wanting factory air-quality accessories included |
Choose the ML20-SH for the same 65.1 CFM output at a lower entry price if you don't need bundled accessories. Choose the ML20-HUP if factory-installed air-quality accessories matter more than saving on the upfront price. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML20-SH
| Model / Part Number | ML20 Simplex |
| Horsepower | 20 HP |
| Pump | C89, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 65.1 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase only, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FML20C89H1S-A9L1XX) |
| Overall Dimensions | 73" L x 33" W x 58" H |
| Shipping Weight | 1095 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase only, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 73" L x 33" W x 58" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 1095 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML20-SH
FS-Curtis backs the ML20-SH with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML20-SH
Why Buy the ML20-SH from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 20 HP, a 120 gallon horizontal ASME tank, 65.1 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML20-SH or the FS-Curtis ML20-HUP (20 HP, Ultra Pack) is the better fit? We’ll walk you through it.
