FS-Curtis ML30 240G 30HP(2) Duplex Ultra Pack Air Comp #ML30-DUP
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML30 Ultra Pack Duplex |
| Horsepower | 30 HP (x2, Duplex) |
| Tank | 240 Gallon Horizontal ASME |
| Airflow | 204.4 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |

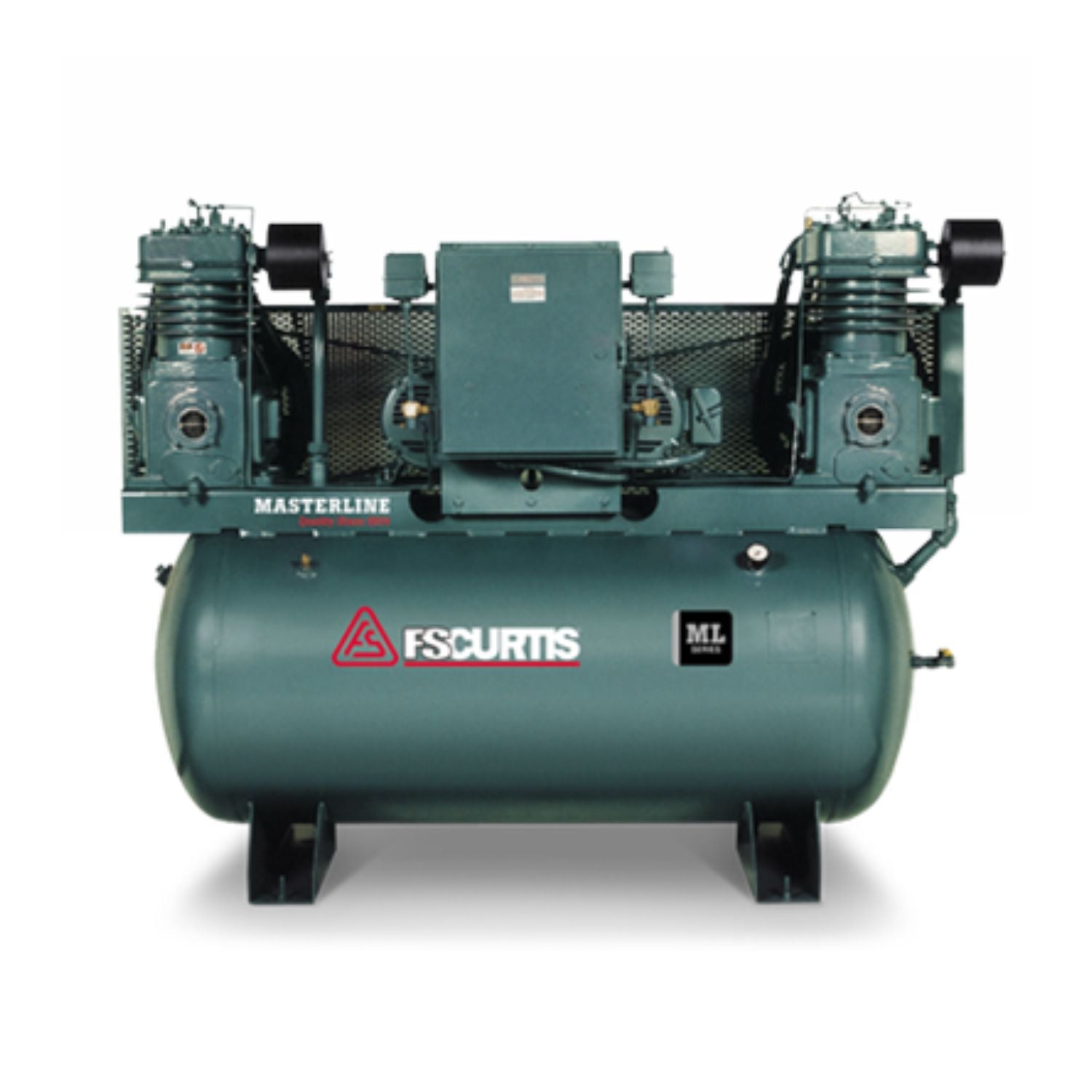

FS-Curtis ML30-DUP — 30 HP (x2, Duplex) Air Compressor
A 24/7 stamping plant lost an entire night shift last quarter when its single compressor pump failed at 2 AM — by the time a tech arrived at 6 AM, six hours of production were gone and the morning shift walked into a backlog that took two days to clear.
The FS-Curtis ML30-DUP is a duplex two-stage reciprocating, ultra pack compressor rated for 30 HP (x2, Duplex) with a 240 gallon horizontal ASME tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Ultra Pack — factory-installed automatic tank drain and refrigerated air dryer — means less time spent on manual upkeep and more consistent air quality without anyone having to remember a maintenance step.
Who the ML30-DUP Is Built For
- ✅ The single largest, most demanding industrial facilities in FS-Curtis's ML lineup, needing the highest combined CFM (204.4) with full pump redundancy and factory accessories together
- ✅ A 24/7 manufacturing plant that's had both a pump failure and a moisture-related quality escape in the same production year, solving both problems in one purchase
- ✅ An operation that's grown past what any simplex unit can support and needs the absolute top of FS-Curtis's ML Series lineup
- ✅ A flagship facility in a multi-plant operation where downtime costs are highest and every available safeguard is worth the investment
- ✅ A facility manager who's calculated that a single hour of production downtime costs more than the price difference between this and the base ML30-D
What the ML30-DUP Is NOT Built For
- ❌ The vast majority of shops and facilities — this is the single most expensive, highest-capacity unit in FS-Curtis's entire ML lineup
- ❌ Budget-conscious buyers — the base ML30-D duplex without Ultra Pack saves meaningfully if accessories aren't needed yet
- ❌ Facilities with limited floor space — this is the largest-footprint unit in the ML line
What Makes the ML30-DUP Different
Commercial 2-Stage Pump
The ML30-DUP uses a C98 (x2), Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
At 204.4 CFM @ 175 PSI and up to 175 PSI, this compressor has the margin to run impact wrenches, tire equipment, and paint tools without the tank ever running low.
Ultra Pack Upgrades
Includes factory-installed automatic tank drain and refrigerated air dryer — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.
Power Requirements
Three-Phase only, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Redundancy + factory accessories
- 204.4 CFM — highest in the ML line
- The largest industrial facilities
- Most shops / smaller facilities
- Budget-first buyers
ML30-DUP vs. FS-Curtis ML30-D (Duplex, no accessories) — Which Compressor Is Right for Your Shop?
| Decision Point | ML30-DUP | FS-Curtis ML30-D (Duplex, no accessories) |
|---|---|---|
| Horsepower / Tank | 30 HP x2 / 240 Gal Horizontal | 30 HP x2 / 240 Gal Horizontal |
| CFM @ 175 PSI | 204.4 CFM combined | 204.4 CFM combined |
| Redundancy + accessories | Duplex pumps + Ultra Pack bundle (auto-drain/dryer) | Duplex pumps, standard configuration |
| Best fit | The largest facilities wanting redundancy and factory accessories together | Large facilities wanting redundancy at a lower price |
Choose the ML30-DUP for the most fully-equipped, highest-capacity configuration FS-Curtis's ML Series offers. Choose the ML30-D for the same redundancy and CFM at a lower price if you don't need the Ultra Pack accessories. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML30-DUP
| Model / Part Number | ML30 Ultra Pack Duplex |
| Horsepower | 30 HP (x2, Duplex) |
| Pump | C98 (x2), Cast-Iron, Two-Stage |
| Configuration | Duplex Two-Stage Reciprocating, Ultra Pack |
| Tank | 240 Gallon Horizontal ASME |
| Airflow | 204.4 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase only, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FML30C98D4U-A9L1XX) |
| Ultra Pack Features | factory-installed automatic tank drain and refrigerated air dryer |
| Overall Dimensions | 105" L x 53" W x 73" H |
| Shipping Weight | 4075 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase only, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 105" L x 53" W x 73" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 4075 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML30-DUP
FS-Curtis backs the ML30-DUP with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Ultra Pack accessories (auto tank drain, refrigerated air dryer) | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML30-DUP
Why Buy the ML30-DUP from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 30 HP (x2, Duplex), a 240 gallon horizontal ASME tank, 204.4 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML30-DUP or the FS-Curtis ML30-D (Duplex, no accessories) is the better fit? We’ll walk you through it.
