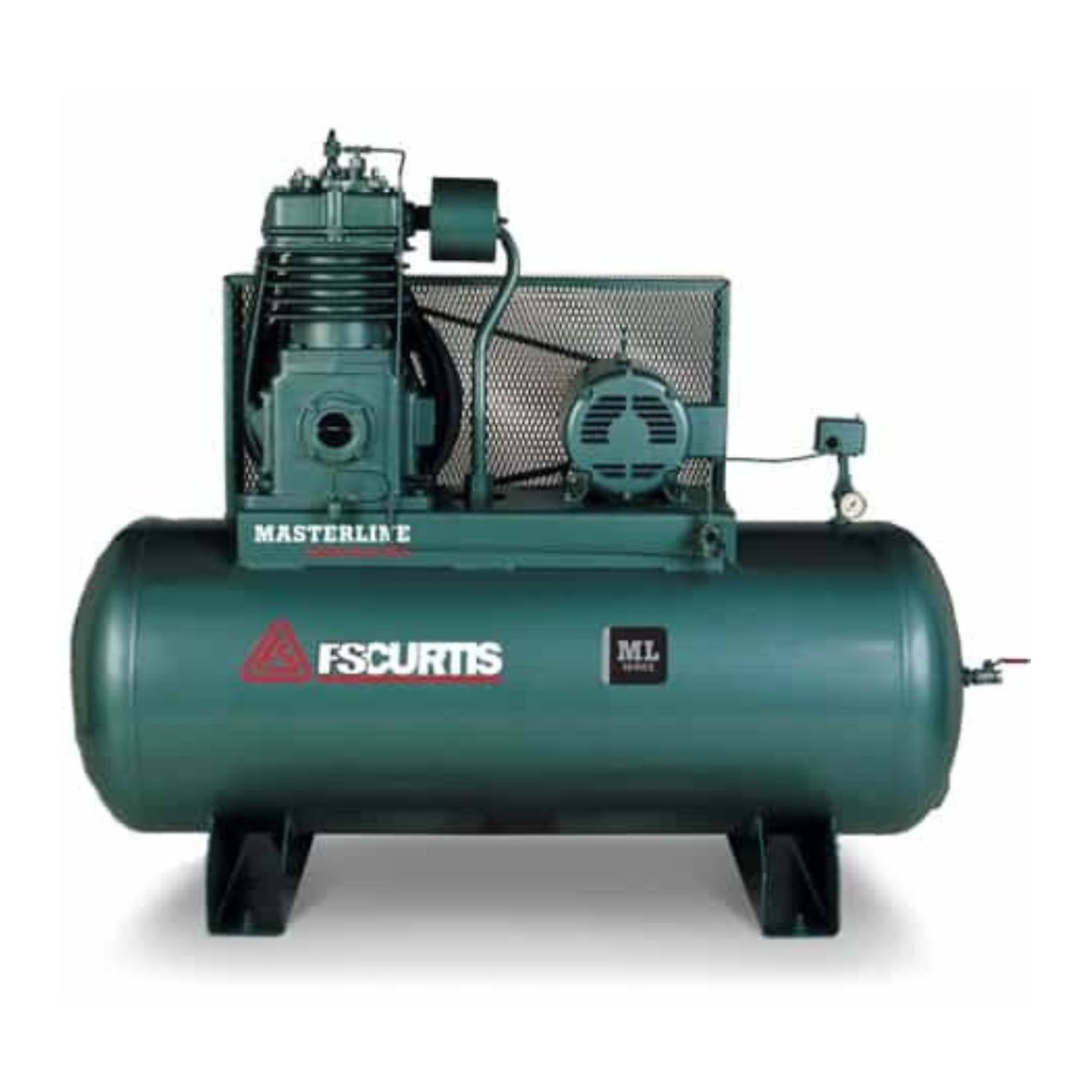

FS-Curtis ML5 80G Horizontal 5HP Simplex Tank Electric Air Compressor #ML5-SH
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML5 Simplex |
| Horsepower | 5 HP |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 19.1 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML5-SH — 5 HP Air Compressor
A shop replacing a worn-out 5 HP compressor that's started tripping breakers under load wants the heavier-duty ML Series pump platform this time, without paying extra for accessories it doesn't need yet.
The FS-Curtis ML5-SH is a two-stage reciprocating compressor rated for 5 HP with an 80 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the ML5-SH Is Built For
- ✅ A shop replacing an aging 5 HP compressor that's started struggling under daily use, stepping up to FS-Curtis's heavier-duty ML Series pump platform
- ✅ An owner who wants the lower entry price of a base configuration and plans to add accessories like an auto-drain later if needed
- ✅ A shop with an existing air dryer or filtration system already installed that doesn't need factory-bundled accessories duplicating what's in place
- ✅ A tight-footprint installation where the horizontal 80-gallon tank's lower clearance fits under low ceiling space
- ✅ A shop standardizing on FS-Curtis's ML Series for parts and service commonality, starting at the base tier
What the ML5-SH Is NOT Built For
- ❌ Multi-bay shops needing more than roughly 19-20 CFM continuous — look at the ML7.5 or ML10 tier instead
- ❌ Shops wanting factory auto-drain/dryer accessories standard — the Ultra Pack (ML5-HUP) adds those, this base unit doesn't
- ❌ Shops needing built-in redundancy — this is a simplex (single-pump) unit; look at the ML5-D instead
What Makes the ML5-SH Different
Commercial 2-Stage Pump
The ML5-SH uses a D96, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 19.1 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Single or Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- ML Series heavier-duty pump platform
- Lower entry price, no bundled accessories
- Compact horizontal footprint
- Multi-bay shops needing more CFM
- Shops needing redundancy
ML5-SH vs. FS-Curtis ML5-SV (5 HP, Vertical tank) — Which Compressor Is Right for Your Shop?
| Decision Point | ML5-SH | FS-Curtis ML5-SV (5 HP, Vertical tank) |
|---|---|---|
| Horsepower / Tank | 5 HP / 80 Gal Horizontal | 5 HP / 80 Gal Vertical |
| CFM @ 175 PSI | 19.1 CFM | 19.1 CFM |
| Tank orientation | Horizontal — lower overall height | Vertical — smaller floor footprint |
| Best fit | Shops with low ceiling clearance | Shops with tight floor space but taller ceilings |
Choose the ML5-SH when ceiling clearance is limited and you want a lower-profile unit. Choose the ML5-SV when floor space is the bigger constraint and you have the ceiling height for a vertical tank. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML5-SH
| Model / Part Number | ML5 Simplex |
| Horsepower | 5 HP |
| Pump | D96, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 19.1 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Single or Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/230V (FML05D96H8S-A2L1XX) Three Phase: 3/60/200-208V (FML05D96H8S-A9L1XX) 3/60/230V (FML05D96H8S-A3L1XX) 3/60/460V (FML05D96H8S-A4L1XX) |
| Overall Dimensions | 67" L x 29" W x 52" H |
| Shipping Weight | 650 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Single or Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 67" L x 29" W x 52" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 650 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML5-SH
FS-Curtis backs the ML5-SH with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML5-SH
Why Buy the ML5-SH from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 5 HP, an 80 gallon horizontal ASME tank, 19.1 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML5-SH or the FS-Curtis ML5-SV (5 HP, Vertical tank) is the better fit? We’ll walk you through it.
