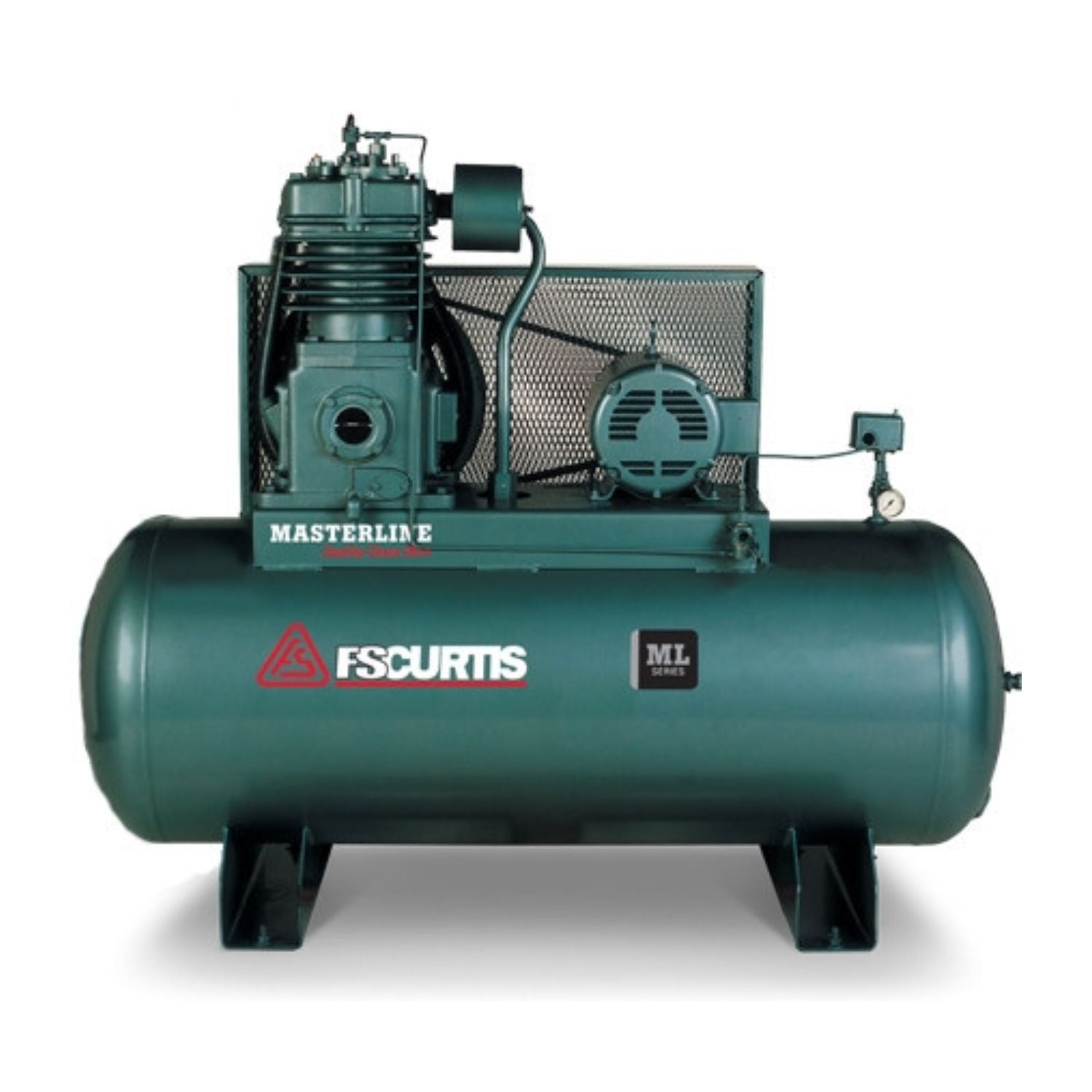

FS-Curtis ML7.5 80G Horiz 7.5HP Simplex Tank Electric Air Comp #ML7.5-SH
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML7.5 Simplex |
| Horsepower | 7.5 HP |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 28.7 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML7.5-SH — 7.5 HP Air Compressor
A shop that's outgrown a 5 HP compressor's output during a busy multi-bay afternoon needs the extra CFM of the 7.5 HP tier without paying for accessories it doesn't need yet.
The FS-Curtis ML7.5-SH is a two-stage reciprocating compressor rated for 7.5 HP with an 80 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the ML7.5-SH Is Built For
- ✅ A three-bay shop that added a tire machine last year and started noticing the compressor cycling nonstop by Thursday afternoon — the old 5 HP unit just can't keep up anymore, and 28.7 CFM at 7.5 HP is the fix
- ✅ An owner who installed a standalone refrigerated dryer on the shop's main line two years ago and doesn't want to pay for a second one bundled into a new compressor — this base unit skips that cost
- ✅ A shop tucked under a low storage mezzanine where the horizontal tank's lower overall height is the only configuration that physically clears the joists
- ✅ A multi-location operator who's already running three ML Series units at other shops and wants the fourth location on the same parts and service plan, starting at the entry tier to control this year's capital spend
- ✅ A tech who's had to wait on air pressure recovering mid-brake-job more than once this quarter, and the shop owner finally approved the upgrade from a 5 HP unit rather than living with it another season
What the ML7.5-SH Is NOT Built For
- ❌ Shops whose demand is fully covered by a 5 HP unit — the ML5 line saves real money if 19 CFM is enough
- ❌ Shops wanting factory auto-drain/dryer accessories standard — the Ultra Pack (ML7.5-HUP) adds those, this base unit doesn't
- ❌ Shops needing built-in redundancy — this is a simplex (single-pump) unit; look at the ML7.5-D instead
What Makes the ML7.5-SH Different
Commercial 2-Stage Pump
The ML7.5-SH uses a C79, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 28.7 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Single or Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- 7.5 HP daily-duty output
- Lower entry price, no bundled accessories
- Compact horizontal footprint
- Shops fully covered by 5 HP
- Shops needing redundancy
ML7.5-SH vs. FS-Curtis ML7.5-SV (7.5 HP, Vertical tank) — Which Compressor Is Right for Your Shop?
| Decision Point | ML7.5-SH | FS-Curtis ML7.5-SV (7.5 HP, Vertical tank) |
|---|---|---|
| Horsepower / Tank | 7.5 HP / 80 Gal Horizontal | 7.5 HP / 80 Gal Vertical |
| CFM @ 175 PSI | 28.7 CFM | 28.7 CFM |
| Tank orientation | Horizontal — lower overall height | Vertical — smaller floor footprint |
| Best fit | Shops with low ceiling clearance | Shops with tight floor space but taller ceilings |
Choose the ML7.5-SH when ceiling clearance is limited and you want a lower-profile unit. Choose the ML7.5-SV when floor space is the bigger constraint and you have the ceiling height for a vertical tank. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML7.5-SH
| Model / Part Number | ML7.5 Simplex |
| Horsepower | 7.5 HP |
| Pump | C79, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 28.7 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Single or Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/230V (FML07C79H8S-A2L1XX) Three Phase: 3/60/200-208V (FML07C79H8S-A9L1XX) 3/60/230V (FML07C79H8S-A3L1XX) 3/60/460V (FML07C79H8S-A4L1XX) |
| Overall Dimensions | 67" L x 26" W x 49" H |
| Shipping Weight | 650 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Single or Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 67" L x 26" W x 49" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 650 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML7.5-SH
FS-Curtis backs the ML7.5-SH with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML7.5-SH
Why Buy the ML7.5-SH from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 7.5 HP, an 80 gallon horizontal ASME tank, 28.7 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML7.5-SH or the FS-Curtis ML7.5-SV (7.5 HP, Vertical tank) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
