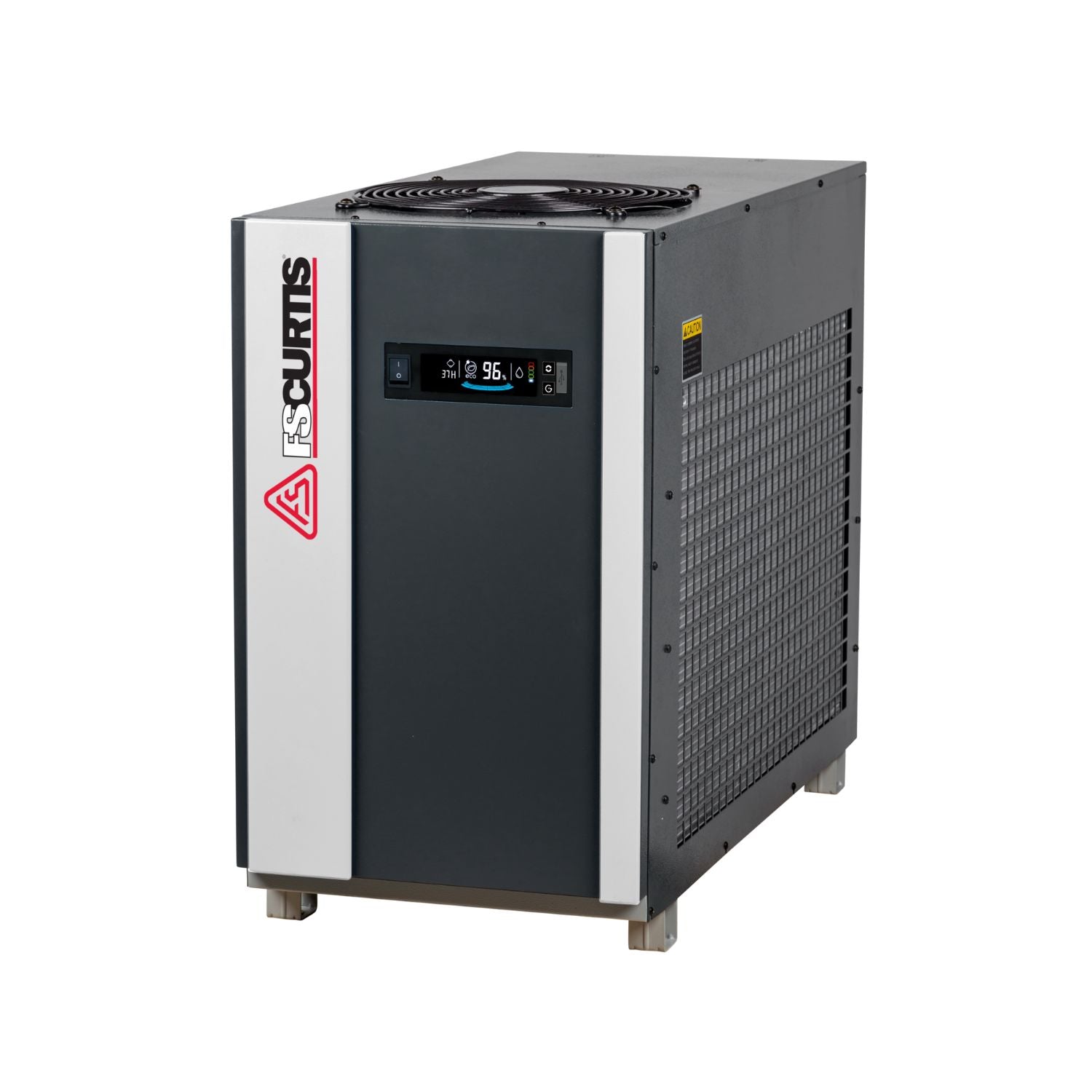

FS-Curtis RES2000-FP Refrigerated Energy Saving Air Dryer #RES2000-FP
Couldn't load pickup availability
-
DESCRIPTION
The FS-Curtis RES2000-FP Refrigerated Energy Saving Air Dryer #RES2000-FP is a high-capacity compressed air dryer engineered to deliver clean, dry air while reducing energy consumption in compressed air systems rated up to 2000 CFM. This energy saving dryer uses an advanced thermal mass heat exchanger to store and release cooling energy, reducing refrigeration compressor run time and lowering operating costs while maintaining a stable pressure dew point. Designed for dependable moisture removal and long-term performance, the RES2000-FP helps protect tools, equipment, and downstream systems from corrosion and water damage.
RES Series dryers are designed with 4-in-1 heat exchangers (patent pending) and a phase change material (PCM) encapsulated between the refrigeration and compressed air circuits, serving as a highly effective reservoir for thermal storage. The PCM possesses high latent heat properties which enables it to melt or freeze at a constant temperature. The phase change material will absorb heat from warm, moisture-laden compressed air without a significant rise in temperature. The phase change material stays colder for longer periods of time, cycling the refrigerant compressor less often than conventional energy-saving designs.
-
FEATURES + BENEFITS
The RES Series is the ideal solution to reliably and economically dry compressed air. The innovative technology does not require a recirculating pump and associated piping. This results in a simpler, more energy-efficient design.
Stainless steel brazed plate 4-in-1 heat exchanger (patent pending), with phase change material reservoir
- The PCM thermal reservoir operates at a precise temperature to deliver a stable pressure dew point.
- Smooth, non-fouling stainless steel surfaces promote low resistance to flow, optimizing air system efficiency
No-air-loss, demand drain efficiently removes condensate without loss of compressed air
- Condensate drain lines terminate at discharge connections conveniently located on the side of the dryer
- Failure to discharge alarm on the operator interface enhances system reliability
High efficiency, up-flow aluminum air-cooled condenser
- Pulls ambient air through the condenser and releases out the top of the dryer condenser
- Provides cooler condensing air and greater efficiency
Reliable, semi-hermetic refrigerant compressors
- Environmentally friendly, globally accepted refrigerants
- Rugged design, for long-term operation
-
SPECIFICATIONS
Model Number RES2000-FP Rated Flow scfm 2000 Available Voltage 460/3/60
Inlet/Outlet Connections FLG 4”
Power kW 10
Dimensions 59" L x 39" W x 69" D
Weight 2028 lbs
Maximum Inlet Temperature 120°F (49°C)
