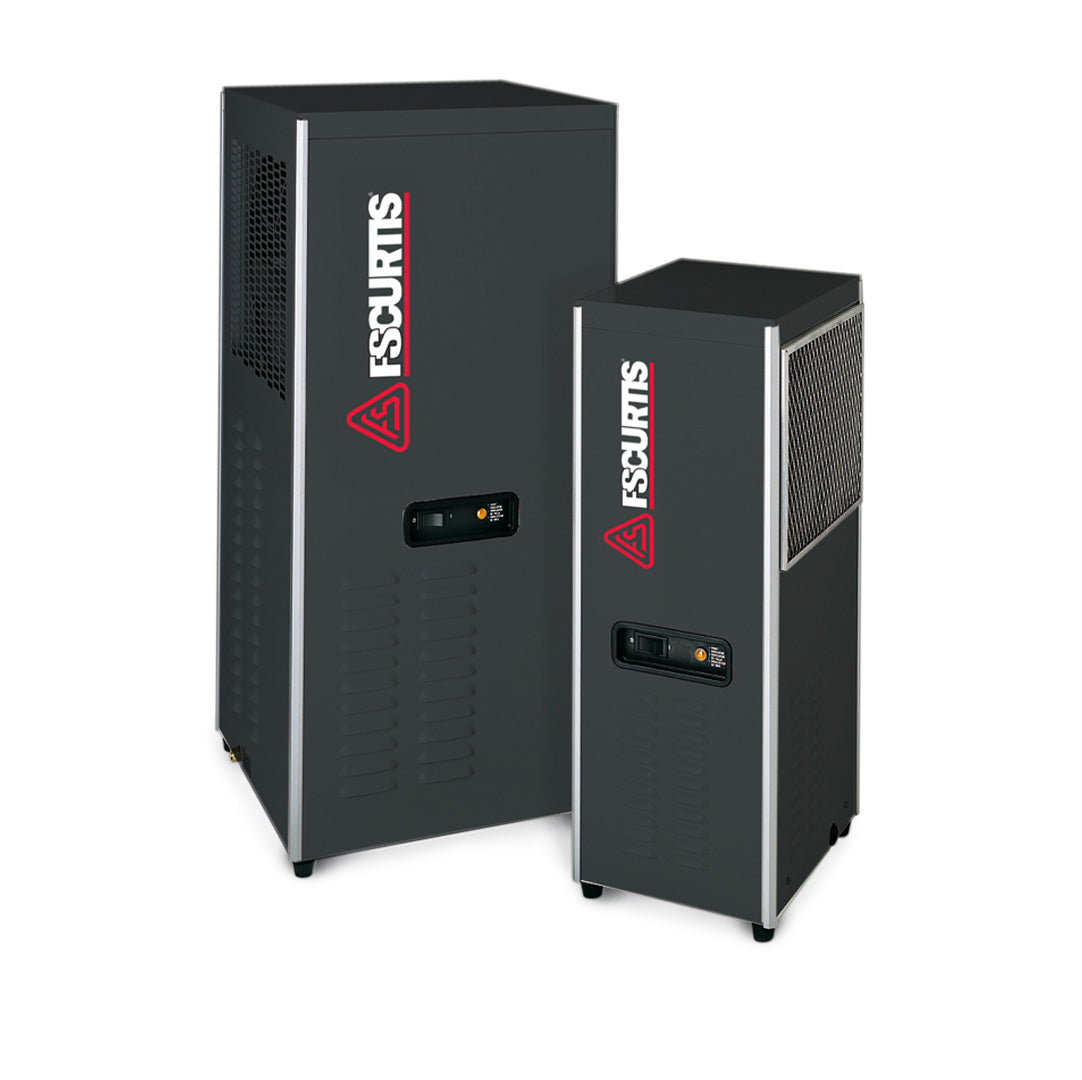

FS-Curtis RNHI50 High Temp Dryer 50cfm #RNHI50
FS Curtis shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
Couldn't load pickup availability
-
DESCRIPTION
The perfect choice for reciprocating compressors, RNH dryers eliminate the need for a standalone separator and aftercooler.
For compressors with a high discharge temperature, such as reciprocating models without aftercooler, RHN dryers are ideal. They provide a single air treatment system that replaces four separate components — the aftercooler, separator, dryer and filter. You get everything you need in one unit.
The automatic refrigeration temperature control system ensures stable performance for clean, dry, consistent-quality compressed air so that your equipment can operate at peak efficiency. The fan switch helps save energy at low loads, and the cleanable cabinet air filter cuts maintenance costs.
RNHI With Filtration Package
Dryers purchased with a Filtration Package and the annual purchase of a maitenance kit will receive 3-Years of additional protection, parts, labor, a total of 5 years. All major components are covered.
-
FEATURES + BENEFITS
- Robust and designed to fit industrial applications, this RNE performs to ISO 8573.1 Class 6 Dew Point Standards
- Handles high inlet temperatures of up to 180° F
- Stainless-steel brazed plate heat exchanger optimizes the thermal efficiency and saves money by reducing pressure drop
- Integrated 3-micron separator removes solid contaminants and 60% of oil aerosols
- Fan switch allows operation in low ambient temperatures (35° F)
- Cleanable cabinet air filter
- Small footprint design
- Environmentally friendly CFC-free refrigerant
-
SPECIFICATIONS
Specifications RNHI50 1-Capacity scfm 50 Power Supply 115/1/60 Standard
Inlet/Outlet npt. Male 1” NPT
Dimension 37" H x 17" W x 17" D
Weight 125 lbs
Maximum Inlet Air Temperature 180°F (82°C)
Maximum Operating Pressure 225 psig (17 bar)
Shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the freight method and total before sending a payment link.
See the attached document for FS CURTIS WARRANTY
