Graco Air Filter-Regulator-Lubricator, 3/8 in. NPT #110150
Regular price
$575.00
📚 Manufacturer Resources
Quick Specs
| Part number | 110150 |
| Manufacturer | Graco |
| Type | Air filter-regulator-lubricator (F-R-L) kit |
| Inlet / outlet | 3/8 NPT |
| Maximum working pressure | 250 psi (17.5 bar) |
| Temperature range | 40-150°F (4-65°C) |
| Dimensions (W x H x D) | 8.8 x 9.6 x 4.1 in. (222 x 244 x 105 mm) |
| Includes | Filter #106148, regulator #110234, lubricator #214847, gauge #101689 |
| Filter | 20 micron, 5 oz (150 ml) bowl, 77 SCFM (2.2 m³/min) max |
| Lubricator | 5 oz (150 ml) bowl, 88 SCFM (2.5 m³/min) max |
| Pump systems | President, Fire-Ball, Monark, Standard |
| Reference manual | Graco 308169 |

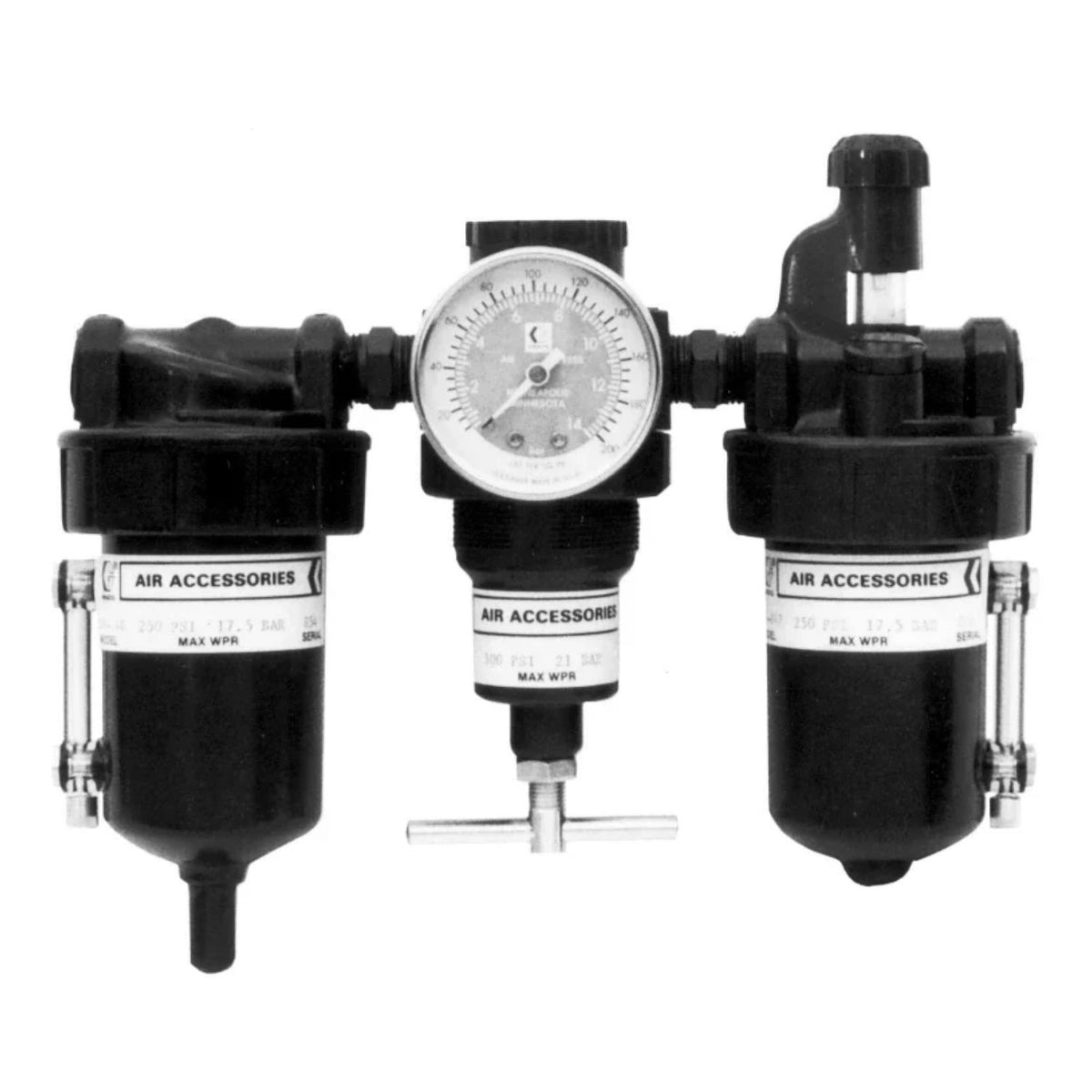

Graco Air Filter-Regulator-Lubricator, 3/8 in. NPT (#110150)
The Graco Air Filter-Regulator-Lubricator, 3/8 in. NPT (#110150) is a 3/8 in. NPT filter-regulator-lubricator kit. It filters the air supply, regulates air pressure, and lubricates the air motor in one assembly. Graco charts it for President, Fire-Ball, Monark and Standard pump systems.
Compatibility & Fitment
- Graco's application chart (manual 308169) pairs the 3/8 NPT kit 110150 with President, Fire-Ball, Monark and Standard pump systems.
- Other sizes in the same chart: 1/4 NPT kit 110149 (Husky 715, Prince, Fast-Flo, Fast-Ball) and 1/2 NPT kit 217072 (Bulldog, Senator, Glutton, Husky 1030).
