Graco Fire-Ball 300 5:1 Bulk Oil Bench/Top Tank Package #224534
Graco shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Part Number | 224534 |
| Pump | Fire-Ball 300 5:1 (203876) |
| Pump Ratio | 5:1 |
| Maximum Fluid Working Pressure | 900 psi |
| Maximum Air Input Pressure | 180 psi |
| Maximum Flow | 2.8 gpm at 80 cpm |
| Hose Reel | SDX™ 20 (SDM6HB), 1/2 in. × 50 ft, tank/bench mount |
| Meter | SDM8 Electronic Manual Oil Meter (25M404), rigid extension |
| Dispensing Location | Bench/Top Tank |
Graco Fire-Ball 300 5:1 Bulk Oil Bench/Top Tank Package #224534
The Graco #224534 is a Fire-Ball 300 5:1 bulk oil dispensing package designed for bench- or top-tank installations — the catalog's bench/top-tank configuration of the Fire-Ball 300 package line.
It pairs the Fire-Ball 300 5:1 pump with the SDX 20 tank/bench-mount hose reel (50 ft) and the SDM8 electronic manual meter for measured dispensing from a stationary bulk oil supply.

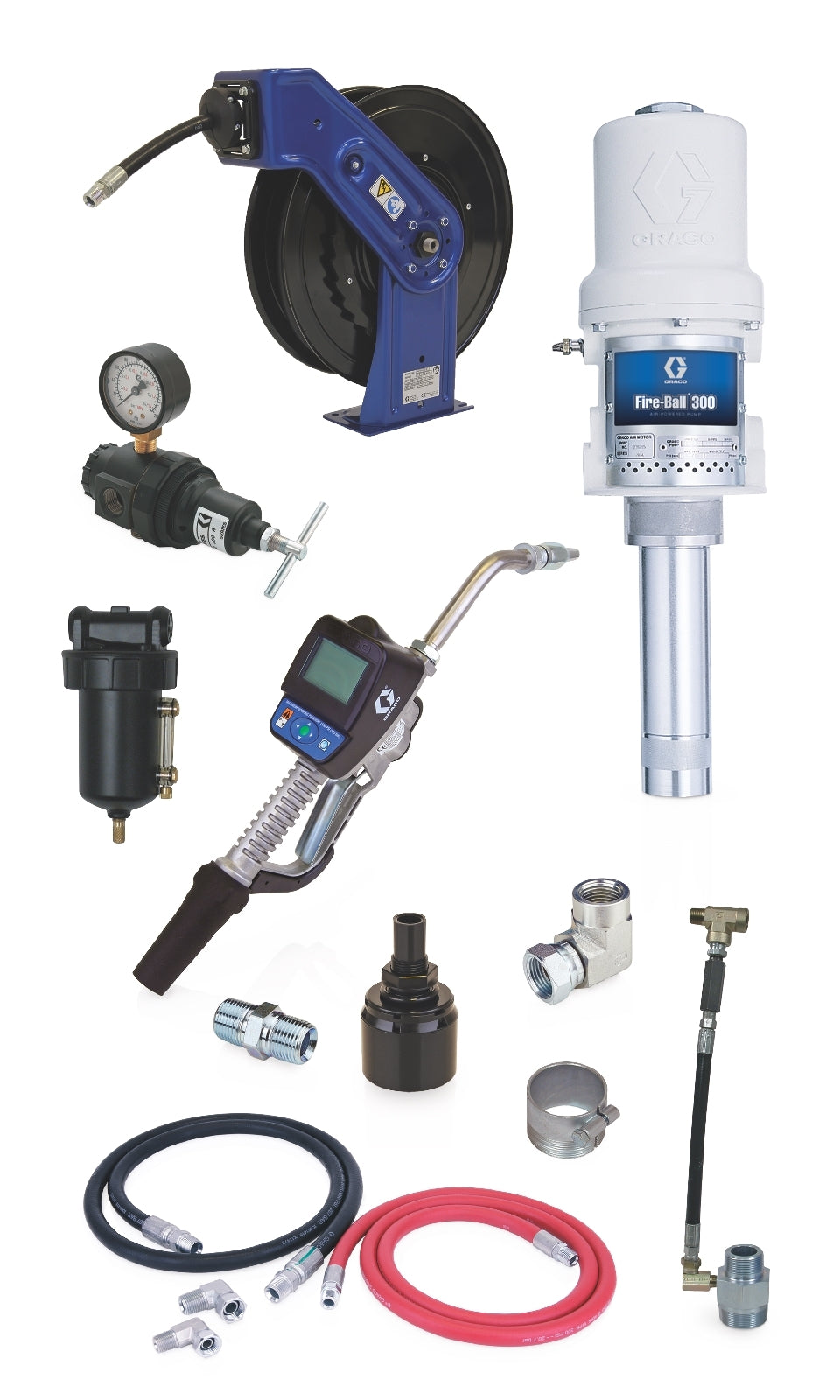

Included Components
- Fire-Ball 300 Series 5:1 oil pump (203876)
- SDX™ 20 hose reel (SDM6HB) with 1/2 in. × 50 ft hose, tank/bench mount
- SDM8 electronic manual oil meter (25M404), rigid extension
- Bung adapter, 2 in. NPT (222308)
- Air filter, 3/8 in. NPT with 20-micron filter (106148)
- Hose fitting, 3/8 in. (156849)
Fitment & Setup
Confirm your tank opening, reel mounting location, air supply (40–180 psi), and fluid plumbing before installation. The bulk oil tank is not included. This package connects to your existing tank or bench/top-tank system.
Need help confirming this Graco package before ordering? Call Alamo Equipment at (817) 865-3707.
Part numbers: 224534
