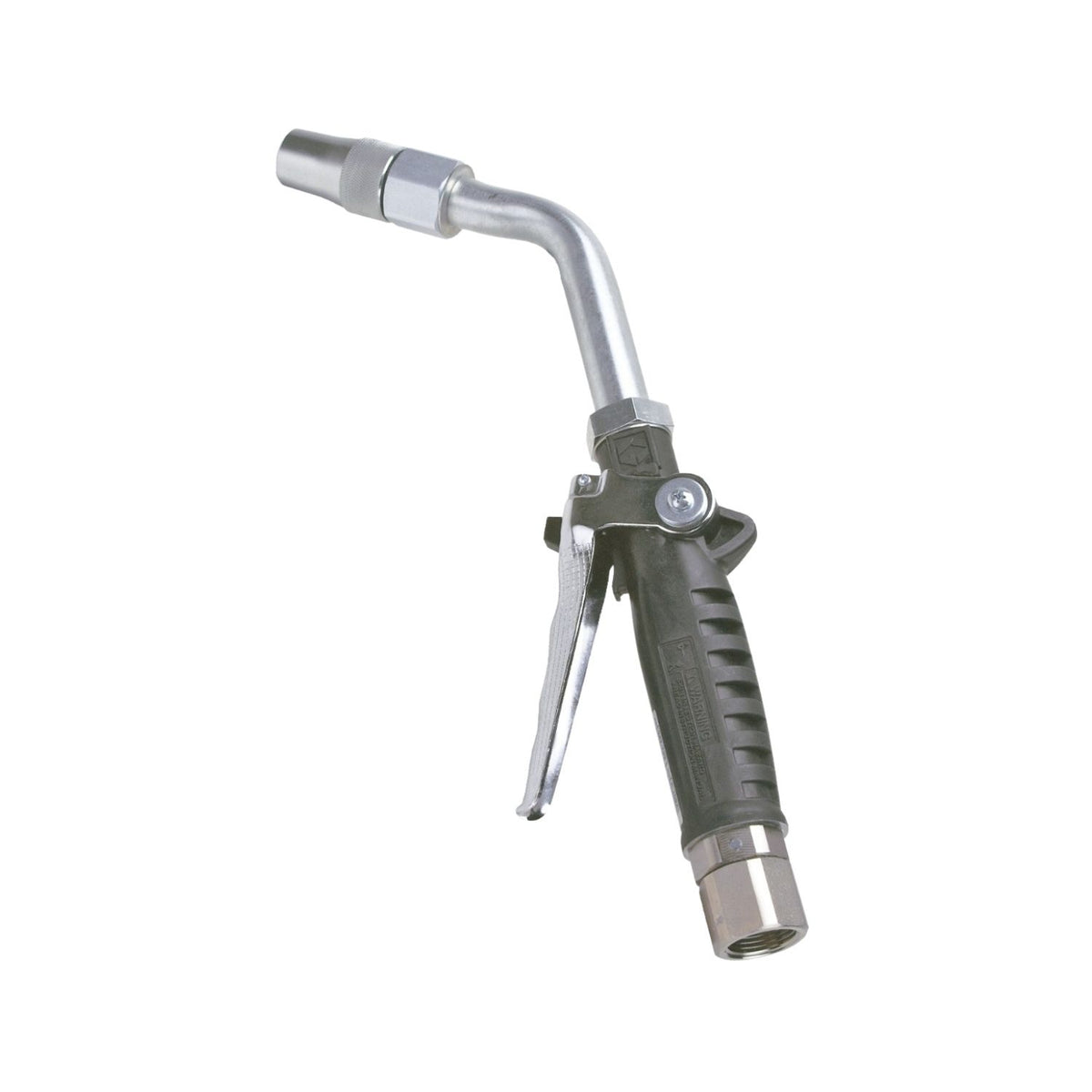

Graco XDV20 High-Flow Oil Control Valve #247718
| Part Number | 247718 |
| Model | XDV20 |
| Type | Non-Metered Manual Dispense Valve, High-Flow |
| Extension | Rigid, with high-flow nozzle |
| Compatible Material | Oil, Antifreeze |
| Inlet | 1/2 in. NPT (female) |
| Outlet | 7/8 in. Straight Thread O-Ring (female) |
| Flow Rate | Up to 20 gpm (75.7 lpm) |
| Max Working Pressure | 1,500 psi |
| Trigger | Locking (lock-on/lock-off) |
| Weight | 0.4 lb |
Graco XDV20 High-Flow Oil Control Valve, Rigid Extension, 1/2 in. NPT Inlet #247718
Graco's XDV20 control valve steps up flow capacity for larger dealerships and higher-usage service operations, pumping oil up to 20 gpm through a 1/2 in. NPT inlet with swivel. Like the SDV15, it uses a sturdy cast body for tough shop environments and a lock-on/lock-off trigger for hands-free operation, but adds a high-flow nozzle and larger 7/8 in. outlet to move more fluid per minute. The valve is also rated for antifreeze in addition to oil.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
1/2 in. NPT female inlet connects to standard shop supply lines; 7/8 in. straight-thread O-ring outlet accepts the rigid extension and high-flow nozzle assembly. Rated to 1,500 psi for oil and antifreeze, indoor or outdoor use.
Warranty
Graco backs this equipment with its standard 1-year warranty against defects in material and workmanship from the date of sale.
