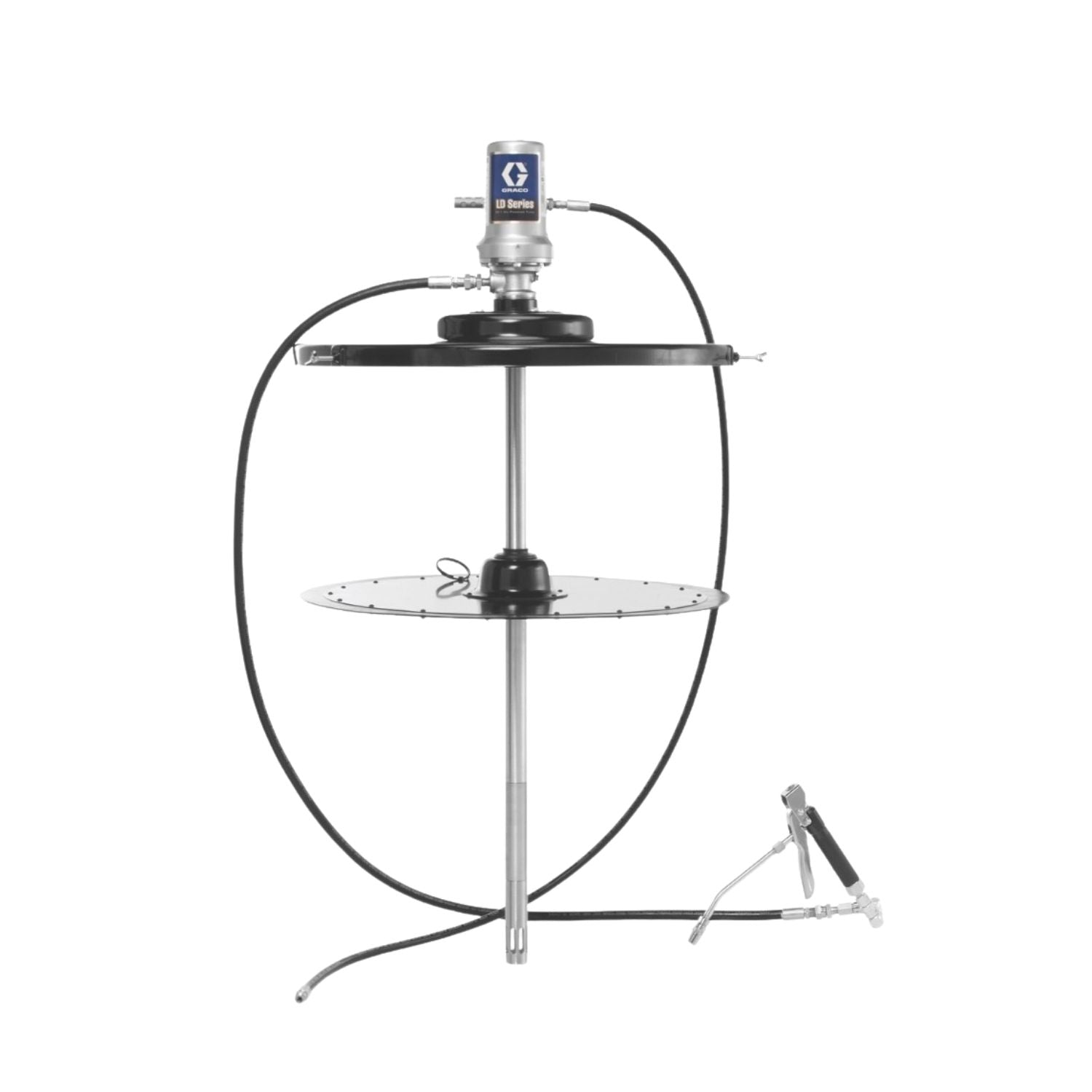

Graco LD 50:1 Grease Pump Package (400 lb (180 kg) drum) #24J042
| Part Number | 24J042 |
| Model / Series | LD Series |
| Type | Piston Pump Package, Stationary |
| Compatible Material | Grease |
| Pump Ratio | 50:1 |
| Container Size | 400 lb (180 kg) drum |
| Air Inlet | 1/4 in. NPT |
| Fluid Outlet | 1/4 in. NPT |
| Max Working Pressure | 5,000 psi (345 bar) |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
| Includes | 24G606 pump, 129581 grease valve, 129591 Z-swivel |
Graco LD Series 50:1 Grease Pump Stationary Package, 400 lb Drum #24J042
This ready-to-run grease dispensing package pairs the LD 50:1 pump with a dispense valve and Z-swivel, so a shop can start dispensing without sourcing matching parts separately. The 50:1 ratio pushes up to 5,000 psi for long hose runs and stiff, cold grease. It's built for lower-volume use -- up to about 7,000 lb of grease dispensed per year -- and sized for a full 400 lb drum, giving a shop more run time between refills than the smaller pail packages.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
Sized for a 400 lb (180 kg) grease drum. This is a stationary package -- it does not include a mobile cart. A drum cart and drum dolly sized for 400 lb drums are available separately as recommended accessories.
Warranty
Graco backs this equipment with its standard 1-year warranty against defects in material and workmanship from the date of sale.
