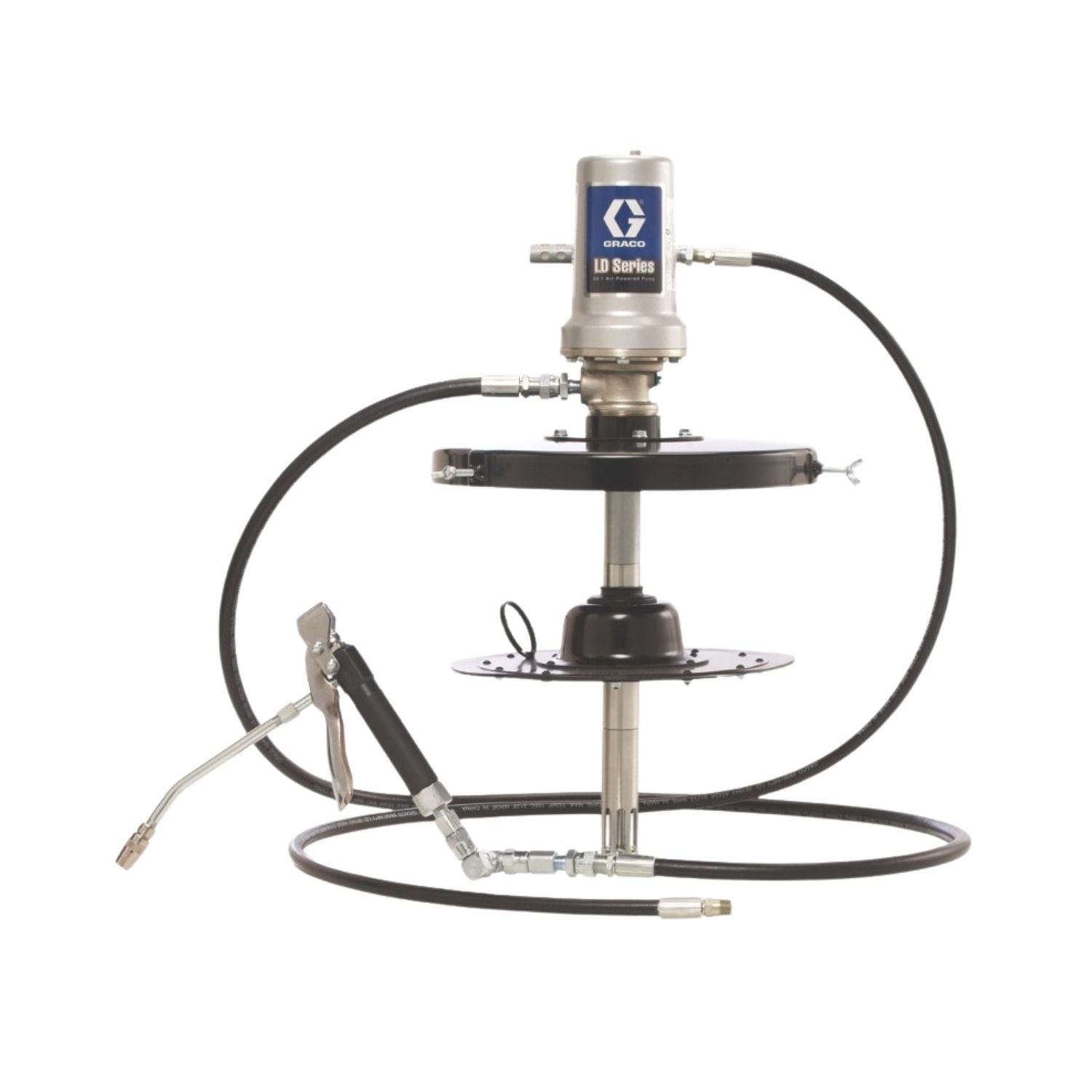

Graco LD 50:1 Grease Pump Package (35 lb (16 kg) drum/pail) #24J030
| Part Number | 24J030 |
| Model / Series | LD |
| Type | Piston Pump Package |
| Compatible Material | Grease |
| Pump Ratio | 50:1 |
| Container Size | 35 lb. pail |
| Air Inlet | 1/4 in. |
| Fluid Outlet | 1/4 in. |
| Max Working Pressure | 5,000 psi |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
| Package Contents | 24G600 LD 50:1 pump, 129581 grease valve (1/4 in. NPT), 129591 LD Z-swivel |
Graco LD 50:1 Grease Pump Package, 35 lb. (16 kg) Pail #24J030
The Graco 24J030 is a ready-to-plumb grease pump package built around the same LD Series 50:1 pump sold separately as the 24G600 - a powerful 3 in. air motor with a patented cup-and-plate piston design that eliminates wear-prone O-rings, plus a modular air valve for simple four-bolt reconfiguration. What sets the 24J030 apart is what's in the box: it bundles the 24G600 pump with a 1/4 in. NPT grease dispense valve (129581) and an LD Z-swivel (129591), so you get a working pump-to-valve setup for a 35 lb. pail without sourcing those accessories separately. If you already have a compatible valve and swivel on hand, the bare 24G600 pump is the lower-cost option.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
Sized to mount on a standard 35 lb. (16 kg) grease pail. Includes a 1/4 in. NPT grease valve and Z-swivel pre-matched to the pump's 1/4 in. fluid outlet; shop air line should be regulated per the included instructions before startup.
Warranty
Graco backs this equipment with its standard 1-year warranty against defects in material and workmanship from the date of sale.
