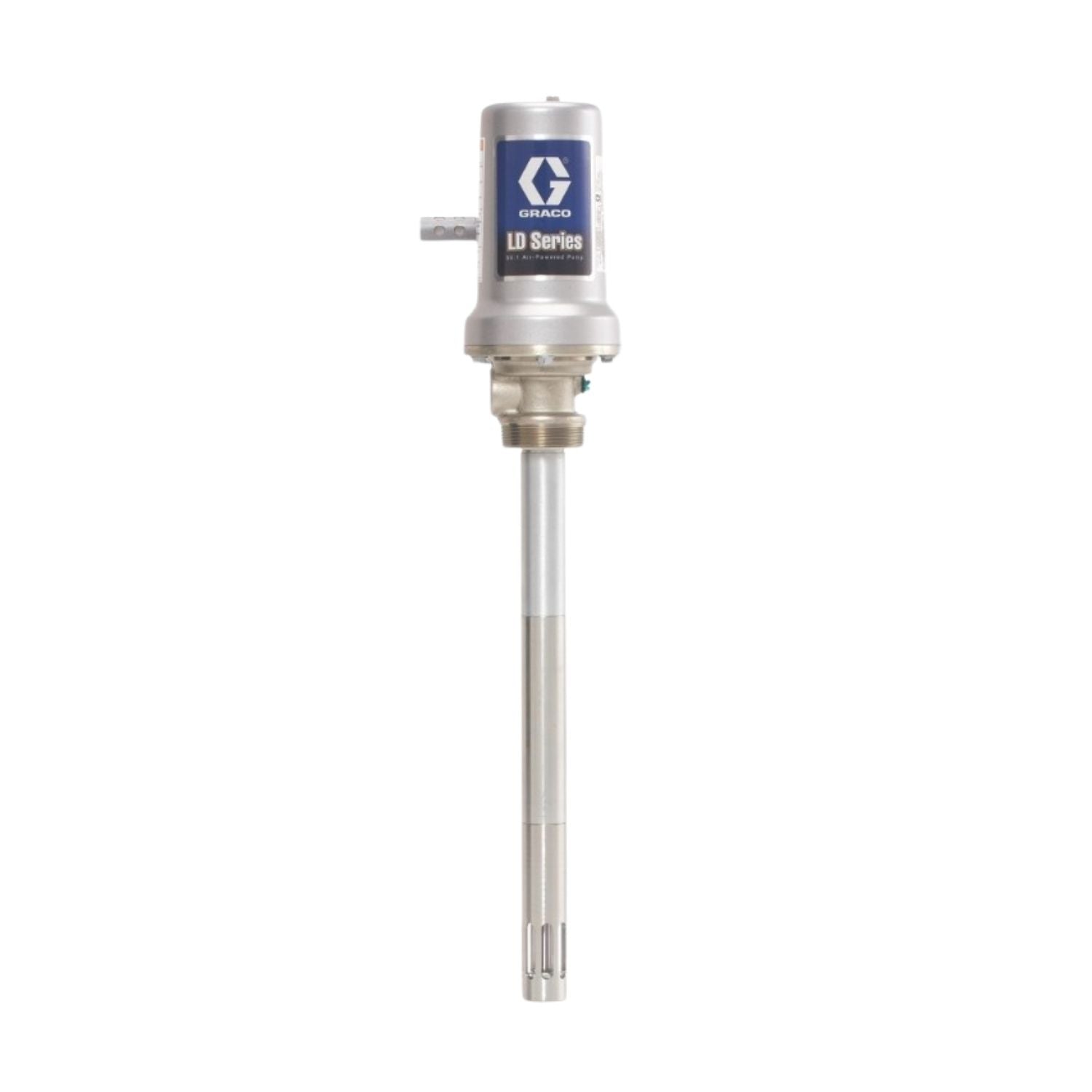

Graco LD Series 50:1 Grease Pump, 35 lb (16 kg) Pail #24G600
| Part Number | 24G600 |
| Model / Series | LD |
| Type | Pneumatic Piston Pump (bare pump) |
| Compatible Material | Grease, up to NLGI #2 |
| Pump Ratio | 50:1 |
| Container Size | 35 lb. (16 kg) pail |
| Air Inlet | 1/4 in. NPT |
| Fluid Outlet | 1/4 in. NPT |
| Max Air Inlet Pressure | 150 psi |
| Max Fluid Working Pressure | 7,500 psi (517 bar, 51.7 MPa) |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
| Weight | 11.2 lb. |
Graco LD Series 50:1 Grease Pump, 35 lb. (16 kg) Pail #24G600
Graco's LD Series 50:1 grease pump delivers full-featured performance at a competitive price for lower-volume grease applications up to 7,000 lb./year. A powerful 3 in. air motor drives consistent flow, while a patented cup-and-plate piston design eliminates wear-prone O-rings for longer service life, and a modular air valve keeps repairs simple - reconfigure air inlet and exhaust with just four bolts. The 24G600 is the bare pump sized for a 35 lb. pail; it ships without a control valve or Z-swivel, so add those separately (or step up to the 24J030 package, which bundles this same pump with a grease valve and Z-swivel ready to plumb in).
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
Sized to mount on a standard 35 lb. (16 kg) grease pail. 1/4 in. NPT female air inlet requires a shop air line regulated to 150 psi max; 1/4 in. NPT female fluid outlet requires a separately ordered dispense valve and hose connection (included in the 24J030 package, sold separately for this bare pump).
Warranty
Graco backs this equipment with its standard 1-year warranty against defects in material and workmanship from the date of sale.
