Graco Manual Meter, 4/16 Quart, Rigid, NPT #24V037
| Part Number | 24V037 |
| Type | Mechanical metered dispense valve |
| Dispense | 4/16 quart |
| Extension | Rigid |
| Inlet | 1/2 in. NPT |
| Outlet | 3/4 in. ORB |
| Max Working Pressure | 1,500 psi |
| Max Flow Rate | 8 gpm |
| Accuracy | ±1% |
| Includes | Bare meter + nozzle/extension kit |

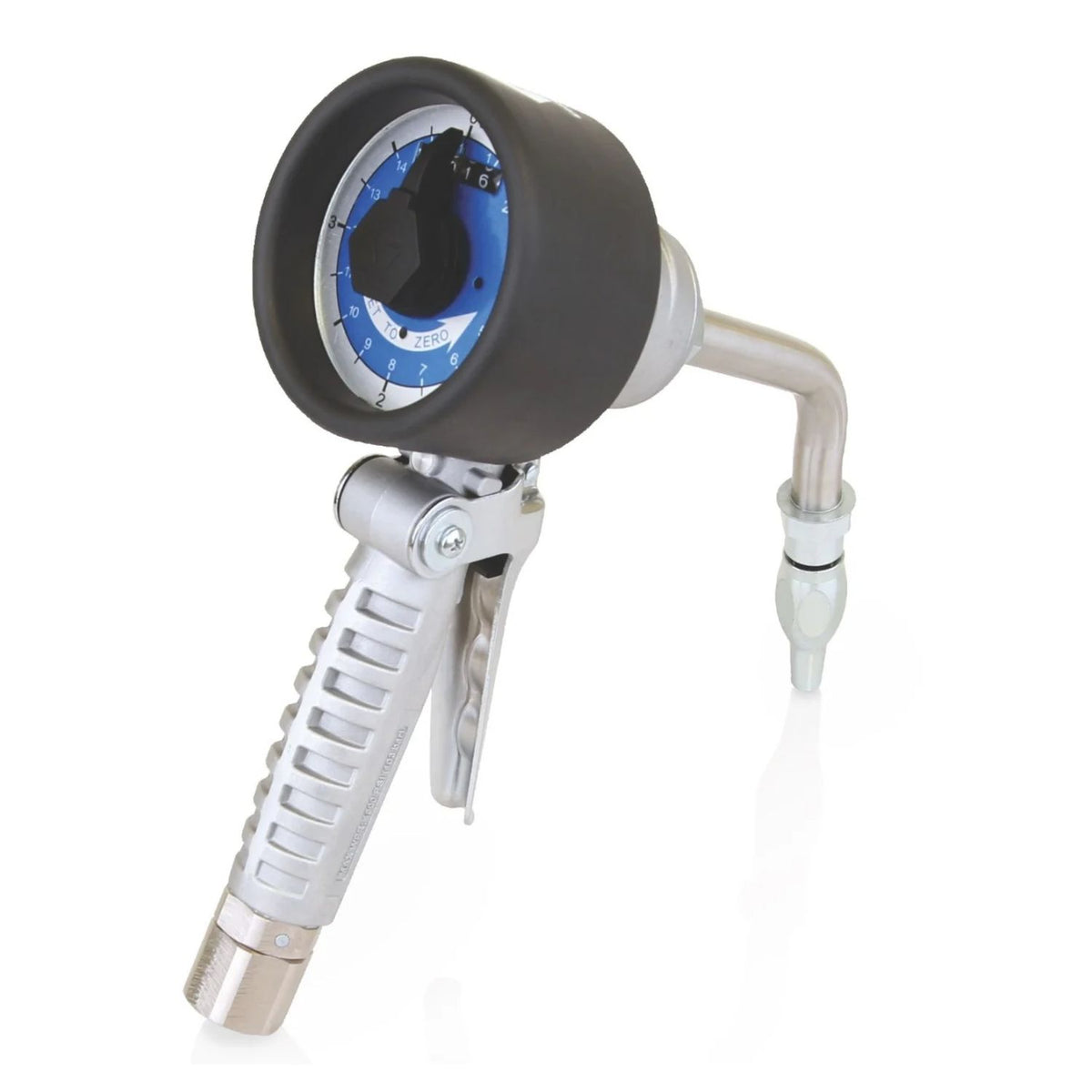

Graco Manual Meter, 4/16 Quart, Rigid, NPT #24V037
The Graco #24V037 is the 4/16 quart manual manual meter in rigid configuration — a mechanical metered dispense valve with 1/2 in. NPT inlet, 1,500 psi rating, and ±1% accuracy.
The 4/16 quart manual meter meters dispense by hand — the NPT inlet and ORB outlet mount on standard hose-end fittings.
Fitment & Setup
Confirm your inlet thread (1/2 in. NPT) and extension preference before ordering.
Need help confirming this Graco product before ordering? Call Alamo Equipment at (817) 865-3707.
Part numbers: 24V037
