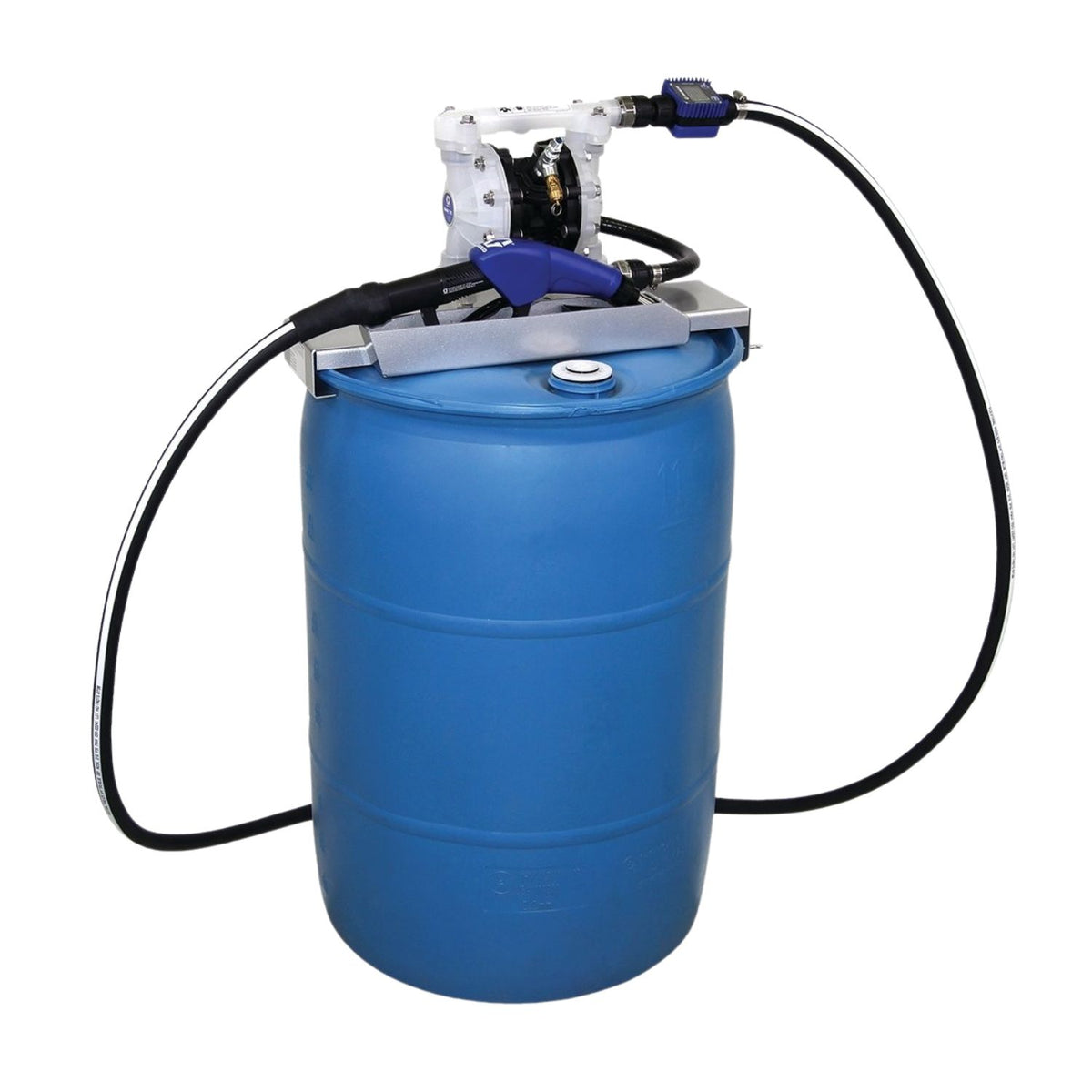

Graco SD Blue DEF System, Drum, Meter & Auto Nozzle #24V686
| Part Number | 24V686 |
| Mount Type | Drum |
| Nozzle | LD Automatic Shut-Off SST Nozzle (127649) |
| Pump | 24G745 air-operated diaphragm (Husky 515) |
| Mounting Bracket | 24W185 drum bracket |
| Meter | LD DEF Meter (127663) included |
| Dispense Hose | 12 ft (24W154) |
| Suction Hose | 2 ft (24W148) |
| Max Fluid/Air Pressure | 50 psi |
| Warranty | 24 months (per Graco manual 334203A) |
Graco SD Blue DEF System, Drum, Meter & Auto Nozzle #24V686
The Graco SD Blue #24V686 is Graco's drum-mounted, metered DEF dispense system: air-operated diaphragm pump, automatic shut-off SST nozzle, and the LD in-line DEF meter — fully automatic, metered DEF service from a 55-gallon drum.
Graco's manual lists 24V686 as drum mounted with meter, at 50 psi maximum working pressure.
Fitment & Setup
Confirm your container, air supply, and thread type before ordering.
Need help confirming this Graco product before ordering? Call Alamo Equipment at (817) 865-3707.
Part numbers: 24V686
