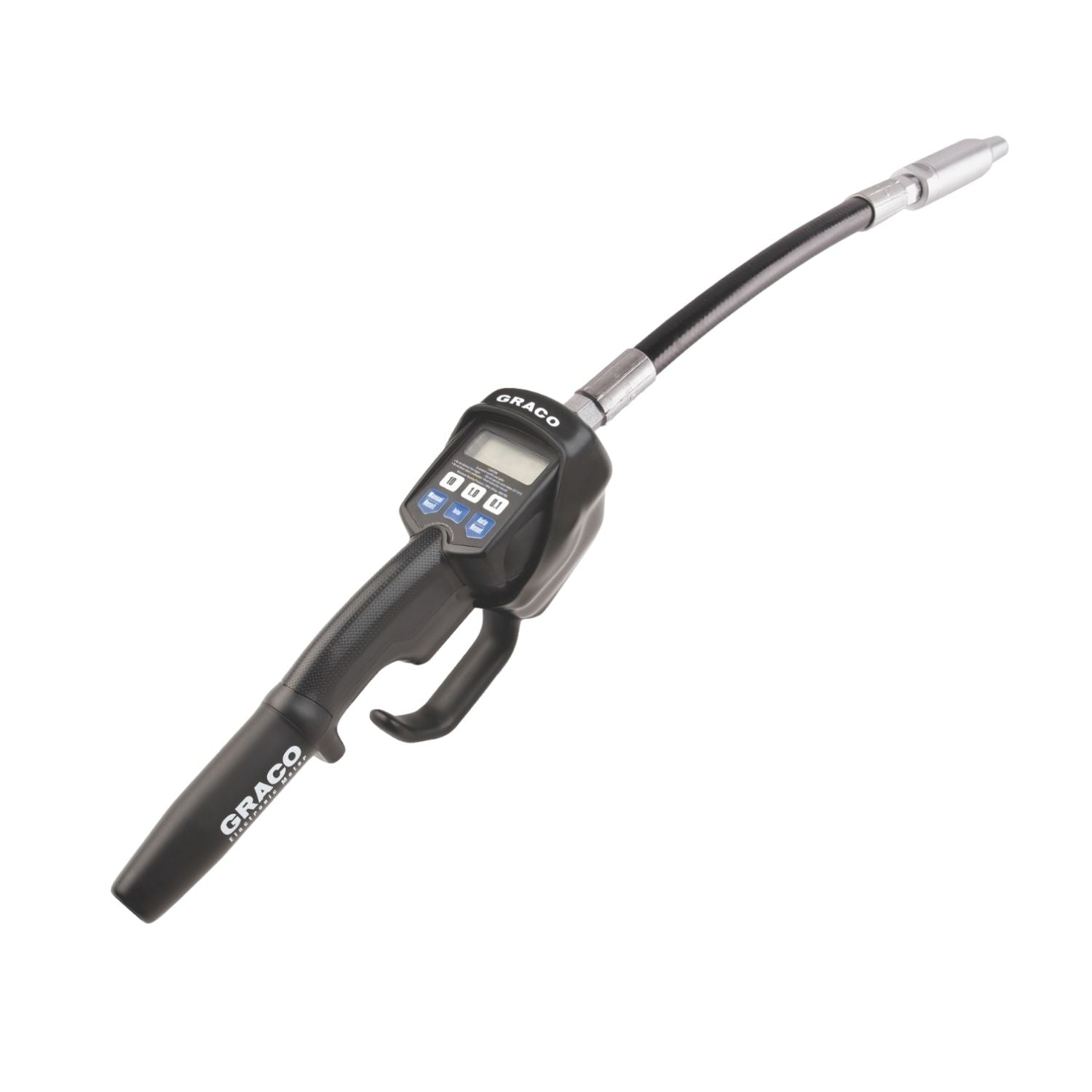

Graco LDP5 Electronic Preset Meter, Flex Extension #258694
| Part Number | 258694 |
| Model | LDP5 |
| Extension Type | Flexible |
| Dispense Type | Electronic Preset |
| Inlet Size / Thread | 1/2 in. NPT (F) |
| Outlet Size / Thread | 3/8 in. NPT (F) |
| Compatible Material | Petroleum- and synthetic-based oil, antifreeze |
| Maximum Flow Rate | 5 GPM (19 LPM) |
| Maximum Working Pressure | 1,000 psi (6.9 MPa) |
| Meter Accuracy | ±0.5% |
| Includes | Nozzle, flexible extension, trigger guard, swivel cover |
| Overall Dimensions | 11 in L x 3.25 in H |
| Weight | 3 lb |
Graco LDP5 Electronic Preset Meter, Flexible Extension #258694
The LDP5 lets a technician set an exact dispense quantity ahead of time and walk away -- it shuts off automatically once that amount has been delivered, so you're not left babysitting a nozzle. It meters oil and antifreeze at up to 5 GPM, and the flexible extension makes it easier to reach into tight engine bays and awkward fill ports. A trigger guard and swivel cover are included to protect against accidental bumps and rough handling in a busy shop.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
1/2 in. NPT female inlet fits standard LD Series pump outlets and hose fittings; 3/8 in. NPT female outlet accepts standard dispense nozzles. This version includes a trigger guard and swivel cover. Not interchangeable with manual-meter models, which use a different dispense mechanism without the preset shut-off feature.
Warranty
Graco backs the LDP5 electronic preset meter with a 5-year warranty on components, a 2-year warranty on electronics, and a 1-year warranty on wear parts.
