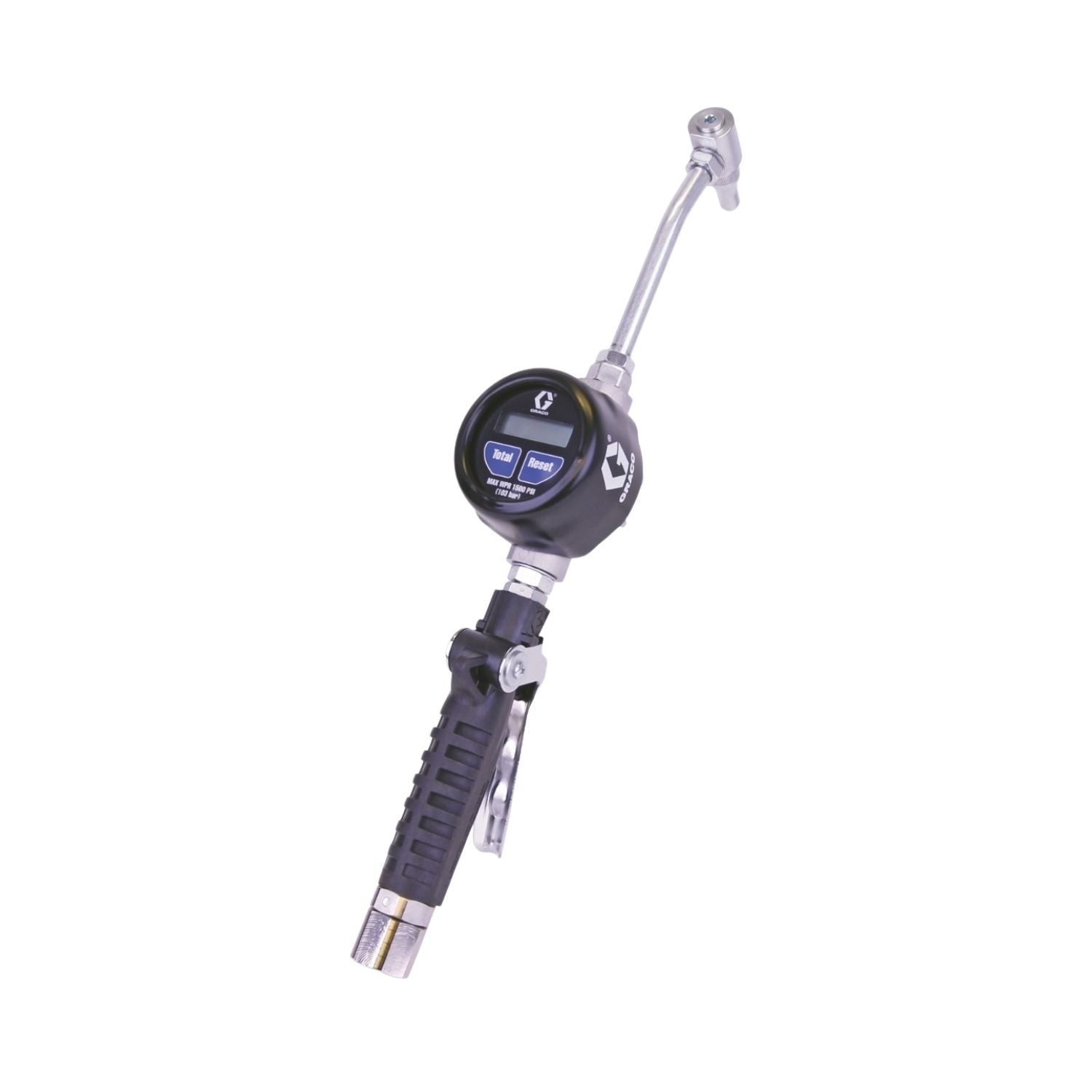

Graco EM Series EM8 Electronic Meter #25C905
| Part Number | 25C905 |
| Model | EM8 |
| Type | Electronic Metered Dispense Valve, Gear Lube |
| Extension | Rigid |
| Inlet | 1/2 in. NPT |
| Outlet | 3/4 in. ORB |
| Flow Rate | 0.25 to 8 gpm (0.95 to 30.3 lpm) |
| Max Working Pressure | 1,500 psi (10.3 MPa, 103 bar) |
| Unit of Measure | Quart, Pint, Liter, Gallon |
| Overall Dimensions | 13 x 3.5 x 5.25 in. |
| Weight | 3 lb |
Graco EM8 Electronic Manual Gear Lube Meter, Rigid Extension, 1/2 in. NPT Inlet
Graco's EM8 electronic dispense meter is built for gear lube service, delivering up to 8 gpm through a 1/2 in. NPT inlet with a rigid extension and twist-close nozzle. The easy-to-read LCD measures in quarts, gallons, pints and liters, and IP69K-sealed electronics stand up to pressure washing and rough shop use.
Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.
Compatibility & Fitment
1/2 in. NPT inlet connects to standard shop gear lube supply lines; 3/4 in. ORB outlet accepts the rigid extension and nozzle assembly. Rated to 1,500 psi.
Warranty
Graco backs the EM8 meter with a 5-year warranty.
