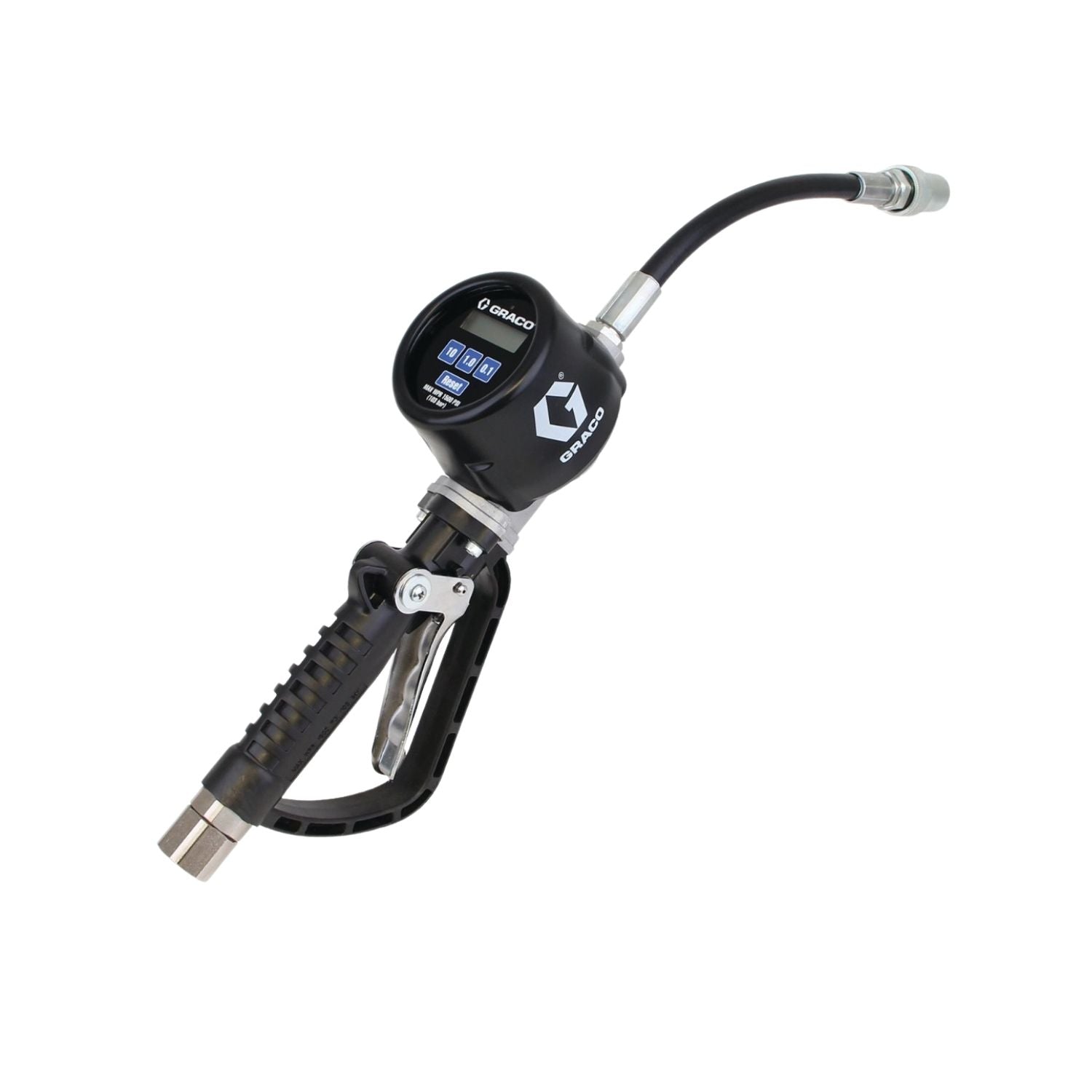

Graco PM Series PM20 Electronic Preset Meter #273166
| Part Number | 273166 |
| Model | PM20 |
| Type | Electronic Preset Metered Dispense Valve |
| Extension | Flexible |
| Inlet | 1/2 in. NPT |
| Outlet | 3/4 in. ORB |
| Flow Rate | 0.25 to 20 gpm |
| Max Working Pressure | 1,500 psi (10 MPa) |
| Compatible Material | Petroleum-based oil, synthetic-based oil, antifreeze |
| Overall Dimensions | 30.7 x 4.1 x 7.2 in. |
| Weight | 5.2 lb |
Graco PM20 Electronic Preset Oil Meter, Flexible Extension, 1/2 in. NPT Inlet
Graco's PM20 electronic preset meter dispenses fluids quickly, reliably and accurately to vehicles, trucks and yellow iron in the most demanding shop environments. Sealed IP69K electronics resist pressure washing and dust, a poppet valve design delivers long service life, and this flexible-extension model reaches tighter or awkward fill points.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
1/2 in. NPT inlet, 3/4 in. ORB outlet. Flexible extension with nozzle included. Rated to 1,500 psi for petroleum-based and synthetic-based oils.
Warranty
Graco backs the PM20 meter with 5 years on structural components, 3 years on electronics, and 1 year on wear parts.
