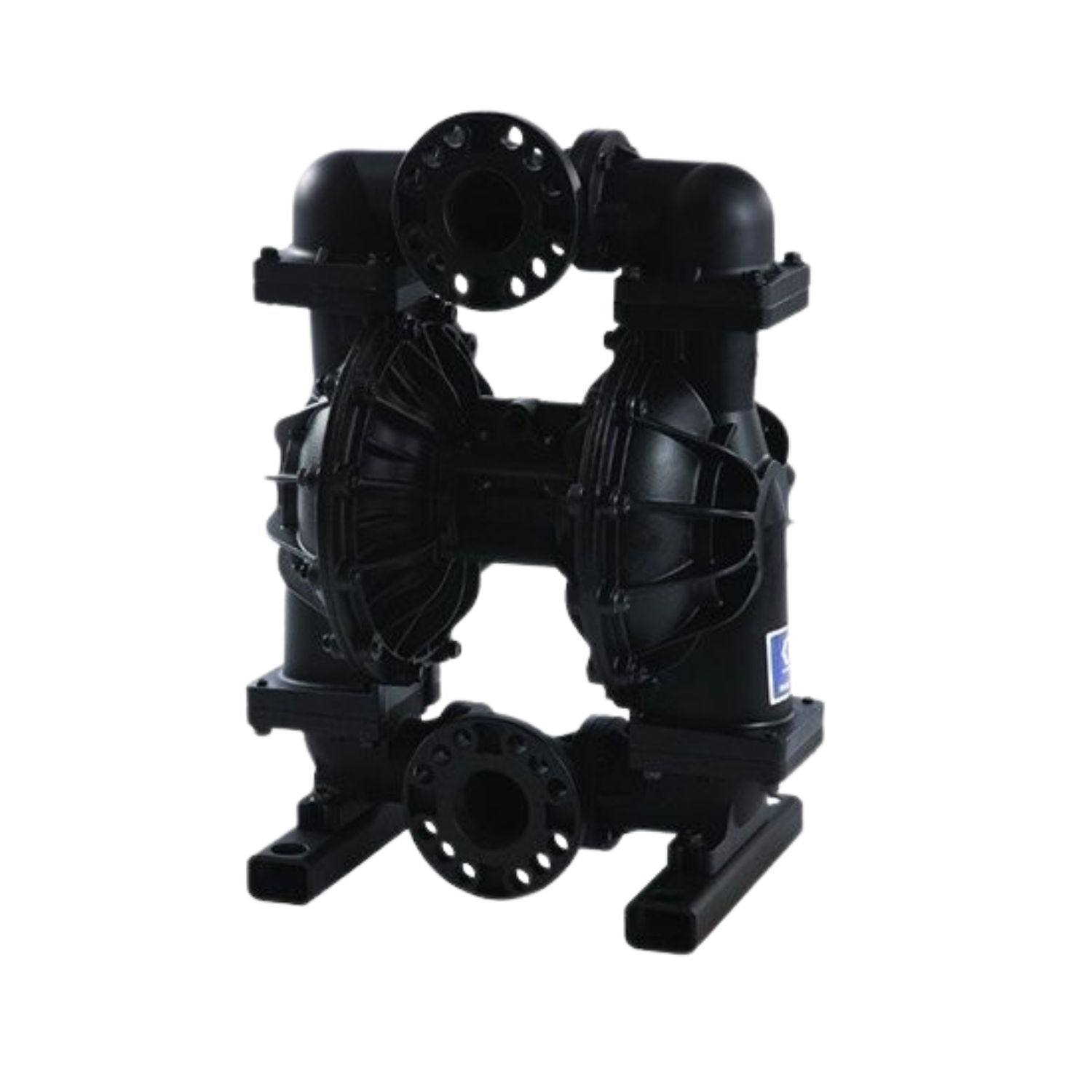

Graco Husky 3300 Air-Operated Diaphragm Pump #652002
Regular price
$5,140.00
Manuals & Resources
Questions before ordering? Call Alamo at (817) 865-3707 - we help you confirm fit for your equipment.
Specifications
| Graco Part # | 652002 |
| UPC | 633955213838 |
| Type | Air-operated double-diaphragm (AODD) pump |
| Max Fluid Pressure | 125 psi (8.4 bar) |
| Max Free-Flow Delivery | 300 gpm (1,135 lpm) |
| Max Pump Speed | 103 cpm |
| Fluid Displacement / Cycle | 2.9 gal (11 l) |
| Max Suction Lift | 8 ft dry, 28 ft wet |
| Max Solids | 0.5 in (13 mm) |
| Max Air Consumption | 335 scfm |
| Air Operating Range | 20-125 psi |
| Air Inlet | 3/4 in NPT (F) |
| Fluid Outlet | 3 in NPT (F) or BSPT (F) |
| Max Operating Temp | 150°F (65.5°C) |
| Product Dimensions | 19.2 x 31.2 x 38.4 in |
| Product Weight | 182 lb |
| Packaged / Shipping Dimensions | 19.2 x 31.2 x 38.4 in |
| Packaged / Shipping Weight | 182 lb |
Product dimensions/weight are the unit itself; packaged/shipping figures are the boxed values used for freight.
Compatibility & Fitment
Husky 3300 configuration 3300A-PA01AA1TPACTPBN. Use only fluids compatible with the pump's wetted materials. Confirm exact fluid-section config with Alamo before ordering.
Warranty
Graco backs the Husky 3300 AODD pump with its published limited warranty. For exact warranty terms and coverage, call Alamo Equipment at (817) 865-3707.
Graco Husky 3300 Air-Operated Diaphragm Pump
Graco Husky 3300 large AODD pump delivering up to 300 gpm for the highest-volume transfer applications.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
