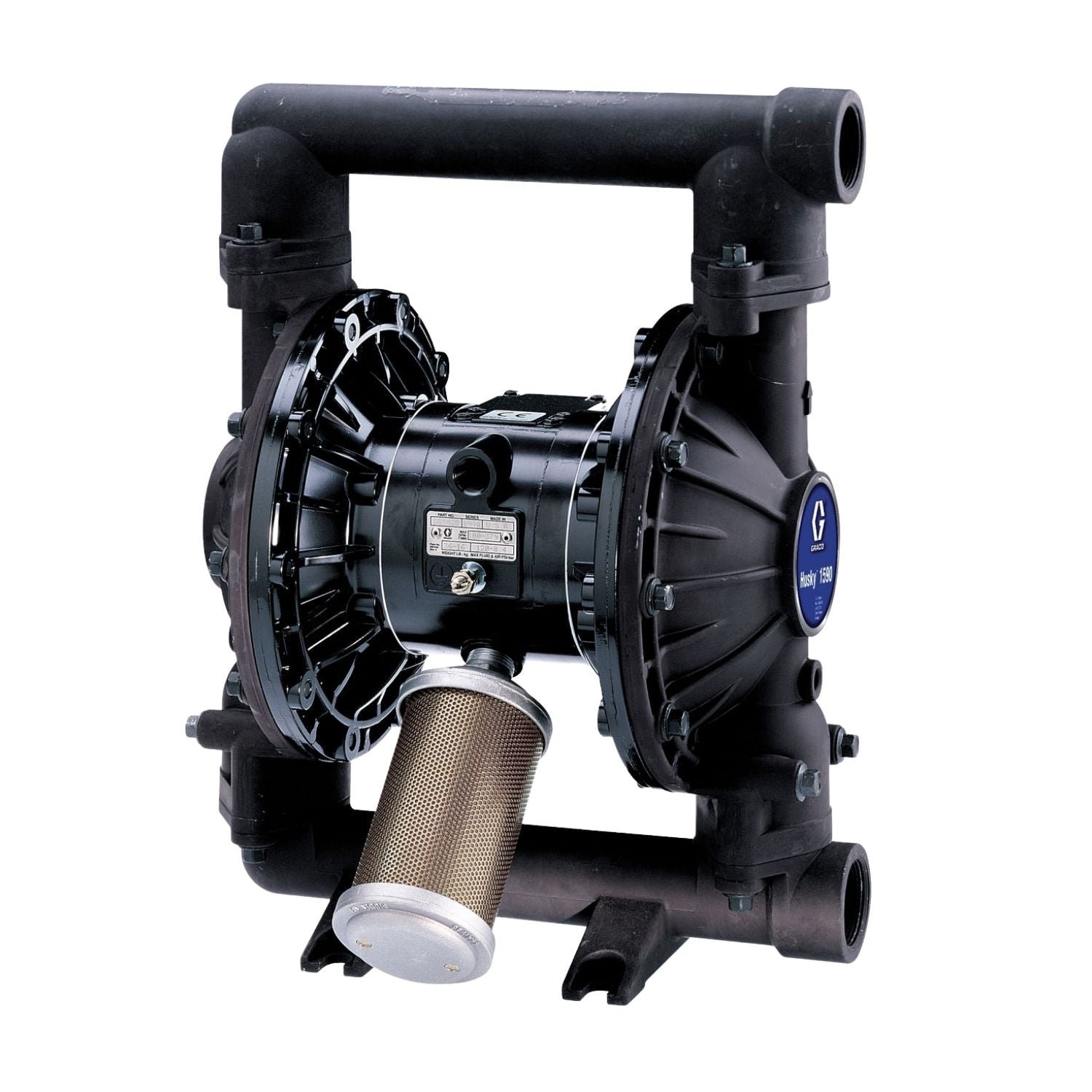

Graco Husky 1590 Air-Operated Diaphragm Pump #DB3525
Regular price
$1,980.00
Manuals & Resources
Questions before ordering? Call Alamo at (817) 865-3707 - we help you confirm fit for your equipment.
Specifications
| Graco Part # | DB3525 |
| UPC | 633955646360 |
| Type | Air-operated double-diaphragm (AODD) pump |
| Max Fluid Pressure | 120 psi (8.4 bar) |
| Max Free-Flow Delivery | 100 gpm (378.5 lpm) |
| Max Pump Speed | 200 cpm |
| Fluid Displacement / Cycle | 0.5 gal (1.96 l) |
| Max Suction Lift | 20 ft (6.1 m) dry |
| Max Solids | 0.19 in (4.8 mm) |
| Max Air Consumption | 125 scfm |
| Air Operating Range | 20-100 psi |
| Air Inlet | 1/2 in NPT (F) |
| Fluid Inlet/Outlet | 1-1/2 in NPT (F) or BSPT (F) |
| Max Operating Temp | 150°F (65.5°C) |
| Product Dimensions | 18 x 12 x 22.8 in |
| Product Weight | 42 lb |
| Packaged / Shipping Dimensions | 18 x 12 x 22.8 in |
| Packaged / Shipping Weight | 42 lb |
Product dimensions/weight are the unit itself; packaged/shipping figures are the boxed values used for freight.
Compatibility & Fitment
Husky 1590 configuration 1590A-PA01AA1TPACTP. Use only fluids compatible with the pump's wetted materials. Confirm exact fluid-section config with Alamo before ordering.
Warranty
Graco backs the Husky 1590 AODD pump with its published limited warranty. For exact warranty terms and coverage, call Alamo Equipment at (817) 865-3707.
Graco Husky 1590 Air-Operated Diaphragm Pump
Graco Husky 1590 heavy-duty AODD pump delivering up to 100 gpm for long line runs and high-volume transfer.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
