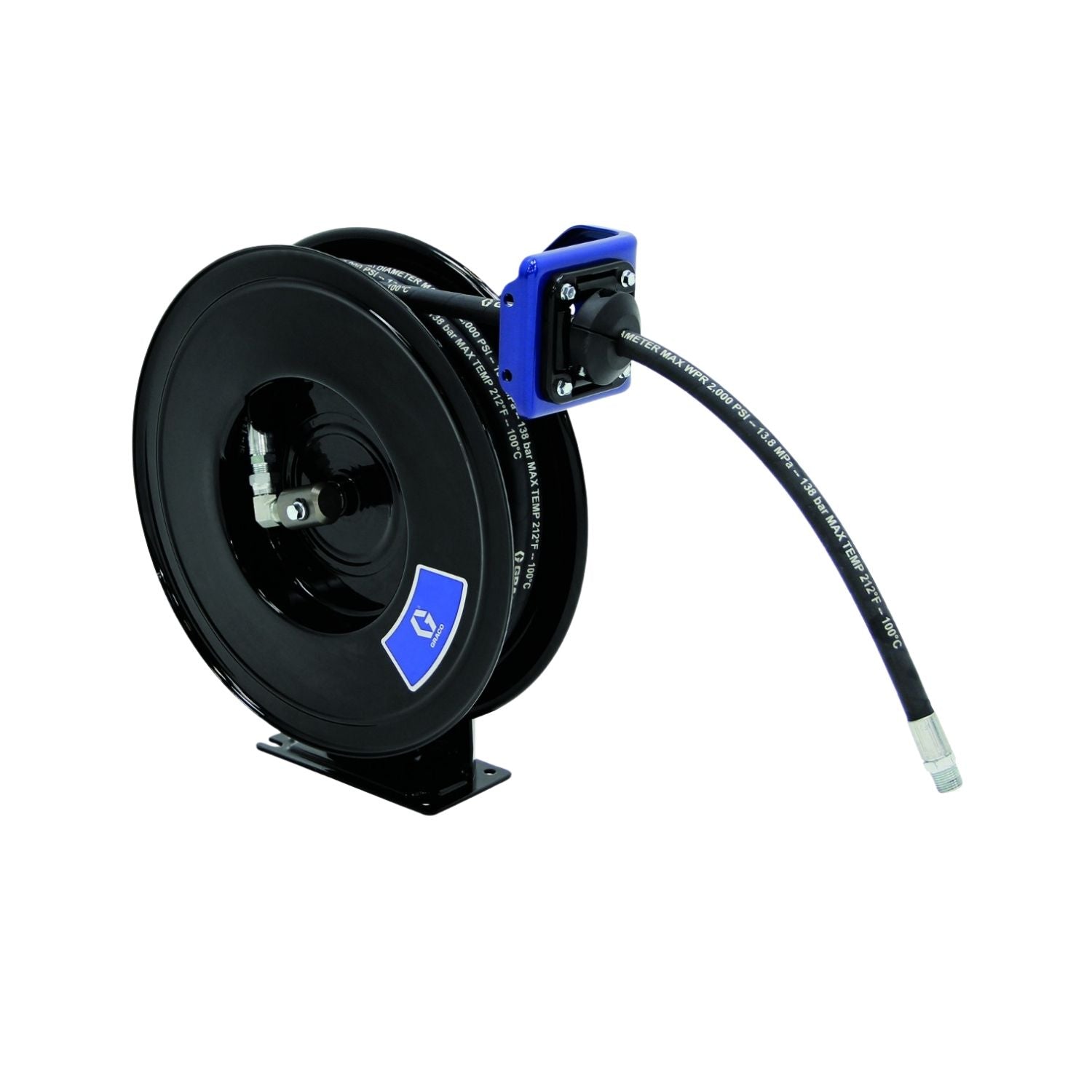

Graco SDX Series Grease Hose Reel (3/8 in (10 mm) x 50 ft) #SDH55A
| Part Number | SDH55A |
| Model / Series | SDX 20 |
| Fluid | Grease |
| Hose (Included) | 3/8 in (10 mm) ID x 50 ft (15 m) |
| Inlet | 3/8 in NPT (M) |
| Outlet | 1/4 in NPT (M) |
| Maximum Working Pressure | 4,800 psi (331 bar) |
| Operating Temperature | -40°F to 200°F (grease) |
| Frame | Rigid metal frame & spool, adjustable 6-position arm, low-friction cartridge swivel |
| Color | White (5 colors available) |
| Weight (Bare Reel) | 52 lb (23.5 kg) |
Graco SDX 20 Grease Hose Reel, 3/8 in x 50 ft
Graco's SDX 20 grease hose reel handles high-pressure grease service up to 4,800 psi with a rigid metal frame and low-friction cartridge swivel for reliable, smooth recoil. The adjustable 6-position arm lets techs position the reel to match their bay layout, and it's available in 5 colors to match shop equipment.
Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.
Compatibility & Fitment
Rated for grease service at up to 4,800 psi. Includes 3/8 in x 50 ft hose with a 3/8 in NPT inlet and 1/4 in NPT outlet; adjustable 6-position mounting arm fits most overhead installations.
Warranty
Graco backs this hose reel with its 7-Year Hose Reel Extended Warranty: 7 years on structural components, 3 years on the power spring, and 1 year on wear parts including the hose, seals, swivel seats, and roller guides.
