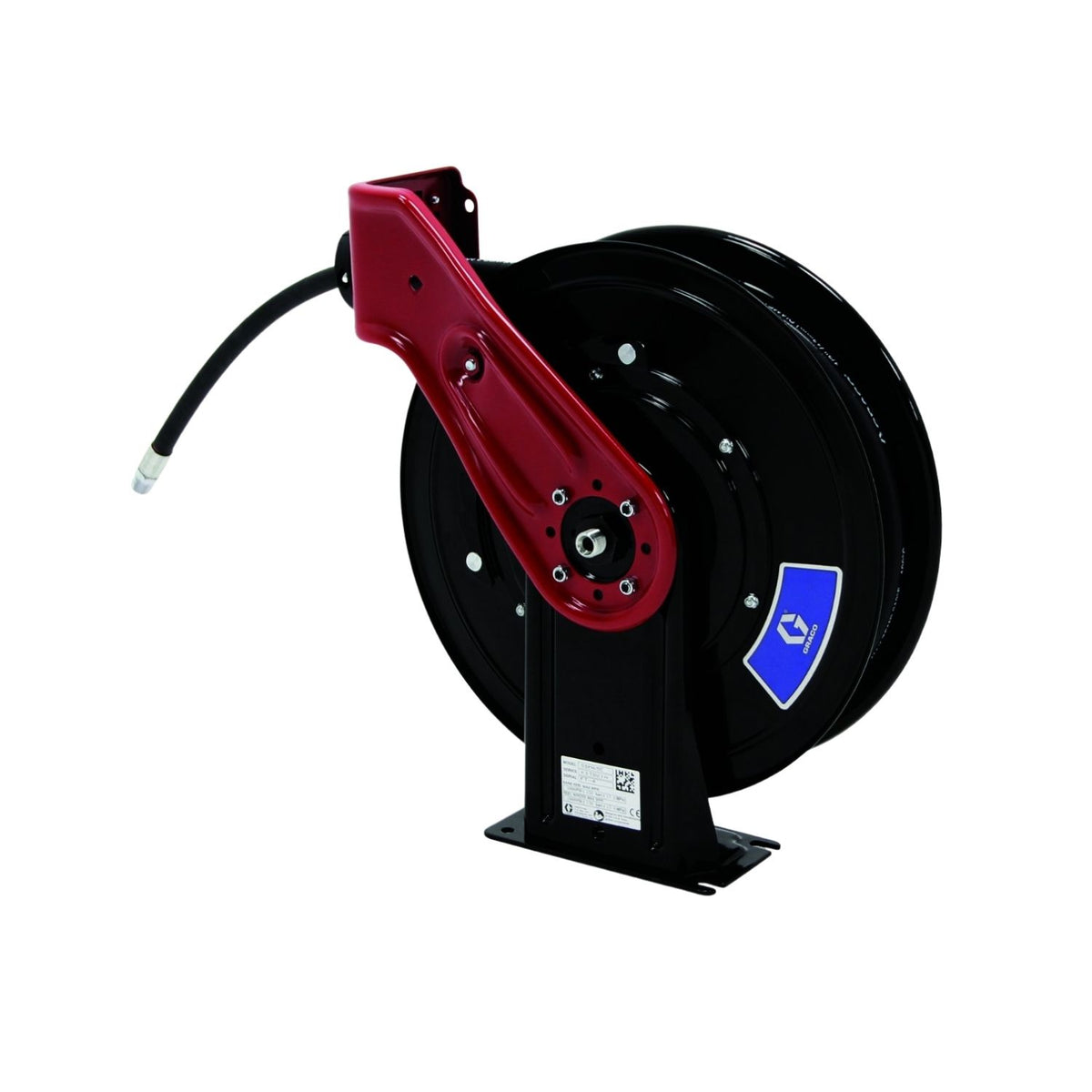

Graco SDX Series Air Hose Reel (1/2 in (13 mm) x 50 ft) #SDL65C
| Part Number | SDL65C |
| Model / Series | SDX 20 |
| Frame Color | Red |
| Application | Air, Water, Antifreeze, Windshield Washer Solvent |
| Hose Size | 1/2 in. (13 mm) ID x 50 ft. (15 m), included |
| Inlet / Outlet | 1/2 in. NPSM (male) inlet, 1/2 in. NPT (male) outlet |
| Mount Location | Overhead Mount |
| Max Working Pressure | 300 psi (2.07 MPa, 20.7 bar) |
| Temperature Range | -20 deg F to 190 deg F (-28 deg C to 87 deg C) |
| Wetted Parts | Stainless Steel, Anodized Aluminum, Nitrile Rubber |
| Overall Dimensions | 19.2 x 7 x 21.8 in. |
Graco SDX 20 Air/Water Hose Reel, 1/2 in. x 50 ft., Red #SDL65C
Graco's flagship SDX hose reel combines a rigid metal frame with a low-friction cartridge swivel for smooth, consistent retraction. The SDL65C ships with 50 ft. of 1/2 in. hose and a Red enamel-finished frame, sized for air, water, antifreeze and windshield washer solvent dispensing at up to 300 psi. Graco offers the SDX 20 frame in five colors so shops can color-code hose reels by fluid type or match existing shop equipment; the SDL65C is the Red option.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
Overhead-mount pedestal frame with adjustable arm for six arm positions. 1/2 in. NPSM male inlet connects to standard shop air/water supply lines; 1/2 in. NPT male outlet accepts standard fittings. Rated for indoor and limited outdoor use.
Warranty
Graco backs this equipment with its standard 1-year warranty against defects in material and workmanship from the date of sale.
