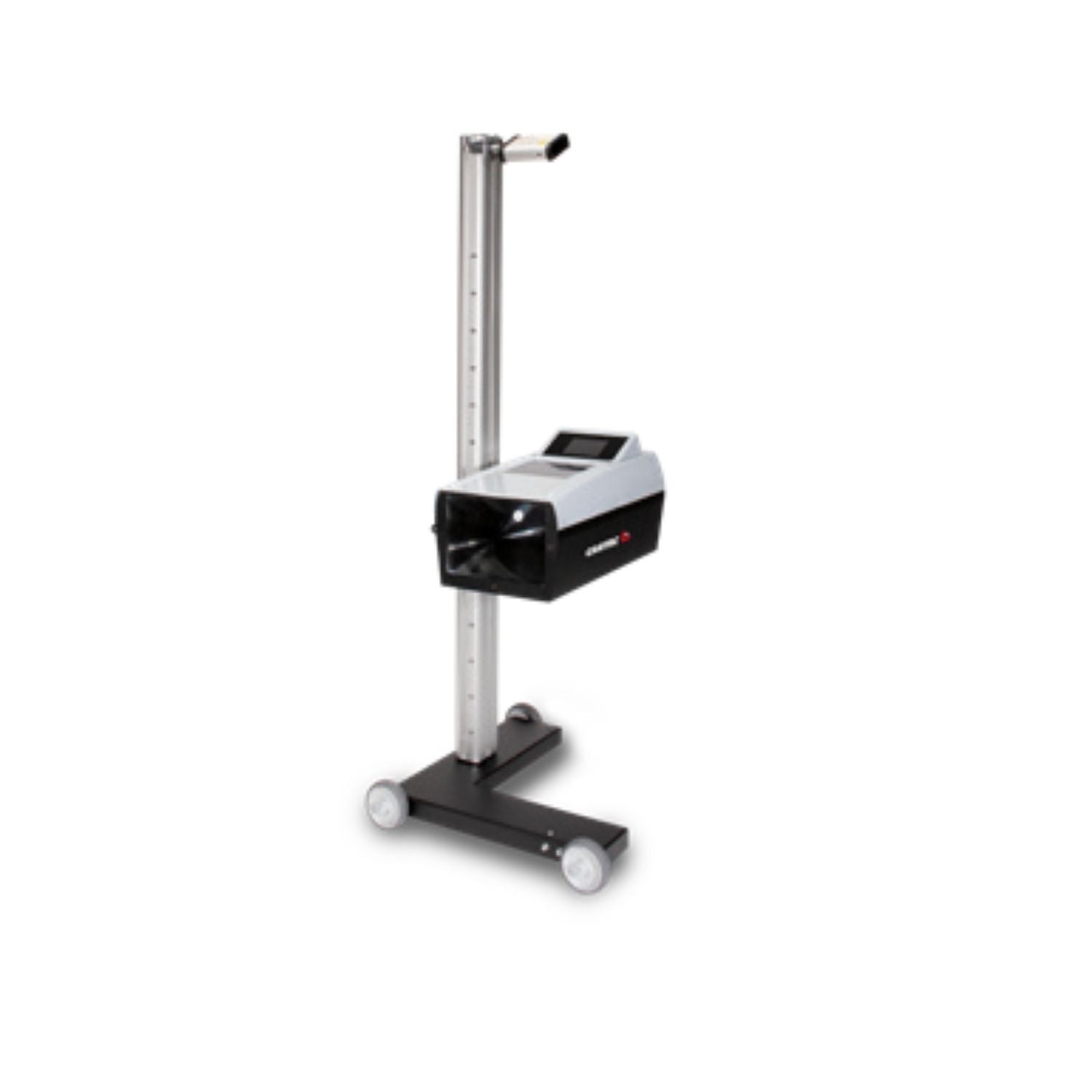

Hofmann 433 Headlight Aimer #EEHAUS803AE3C

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOWNLOADS

• DESCRIPTION

  The Hofmann 433 Headlight Aimer is a professional-grade headlamp alignment system engineered for automotive repair shops, collision centers, inspection facilities, and dealership service departments. Designed to support precise headlight aiming and verification procedures, this advanced optical alignment system helps technicians accurately adjust modern vehicle lighting systems while meeting OEM and regulatory alignment standards.

  Compatible with left-hand drive and right-hand drive vehicles, the 433 Headlight Aimer supports European and American beam patterns while providing advanced calibration capability for Matrix LED, DLA, and ILS lighting systems. Its durable commercial construction, precision camera-based optical system, and ergonomic mobility features make it ideal for demanding professional shop environments.

• FEATURES AND BENEFITS

  • Advanced Camera-Based Optical System: Delivers precise headlight alignment and beam analysis
  • Supports European & American Beam Patterns: Compatible with multiple OEM lighting standards
  • Matrix LED & Adaptive Lighting Calibration: Supports Matrix LED, DLA, and ILS headlamp systems
  • Left & Right-Hand Drive Compatibility: Designed for international vehicle applications
  • Precision Cross Laser Positioning: Improves aiming accuracy and beam centering procedures
  • Wide Height Adjustment Range: Adjustable optical chamber height from 250 mm to 1500 mm
  • Heavy-Duty Optical Chamber: Powder-coated steel housing designed for long-term durability
  • High-Precision Fresnel Lens System: Protected lens improves optical measurement accuracy
  • Column Rotation Capability: ±5° rotational adjustment improves positioning flexibility
  • Smooth Mobility Design: Four ball-bearing wheels allow easy movement within service bays
  • Ergonomic Operating Handle: Simplifies technician movement and positioning procedures
  • Suitable for Multiple Vehicle Types: Compatible with motorcycles, passenger cars, vans, trucks, and buses
  • Professional Shop Compliance Support: Helps maintain proper lighting adjustment and documentation standards
  • Commercial-Grade Construction: Built for continuous use in professional automotive environments


• SPECIFICATIONS

  Brand:	Hofmann
  Part Number:	EEHAUS803AE3C
  Application:	Headlight Alignment and Beam Testing
  Measurement System:	Camera-Based Optical System
  Compatibility:	Left-Hand Drive (LHD) and Right-Hand Drive (RHD) Vehicles
  Beam Compatibility:	European and American Beam Patterns
  Lighting System Support:	Matrix LED, DLA, and ILS Calibration
  Height Adjustment Range:	250–1500 mm
  Column Rotation:	±5°
  Lens Type:	Fresnel Lens with Protective Glass
  Mobility System:	Four Ball-Bearing Wheels
  Construction:	Powder-Coated Steel Optical Chamber
  Vehicle Compatibility:	Motorcycles, Passenger Cars, Vans, Trucks, and Buses
  Use Environment:	Professional Automotive Shops, Collision Centers, and Inspection Facilities
  Operation Type:	Precision Optical Headlamp Alignment System
