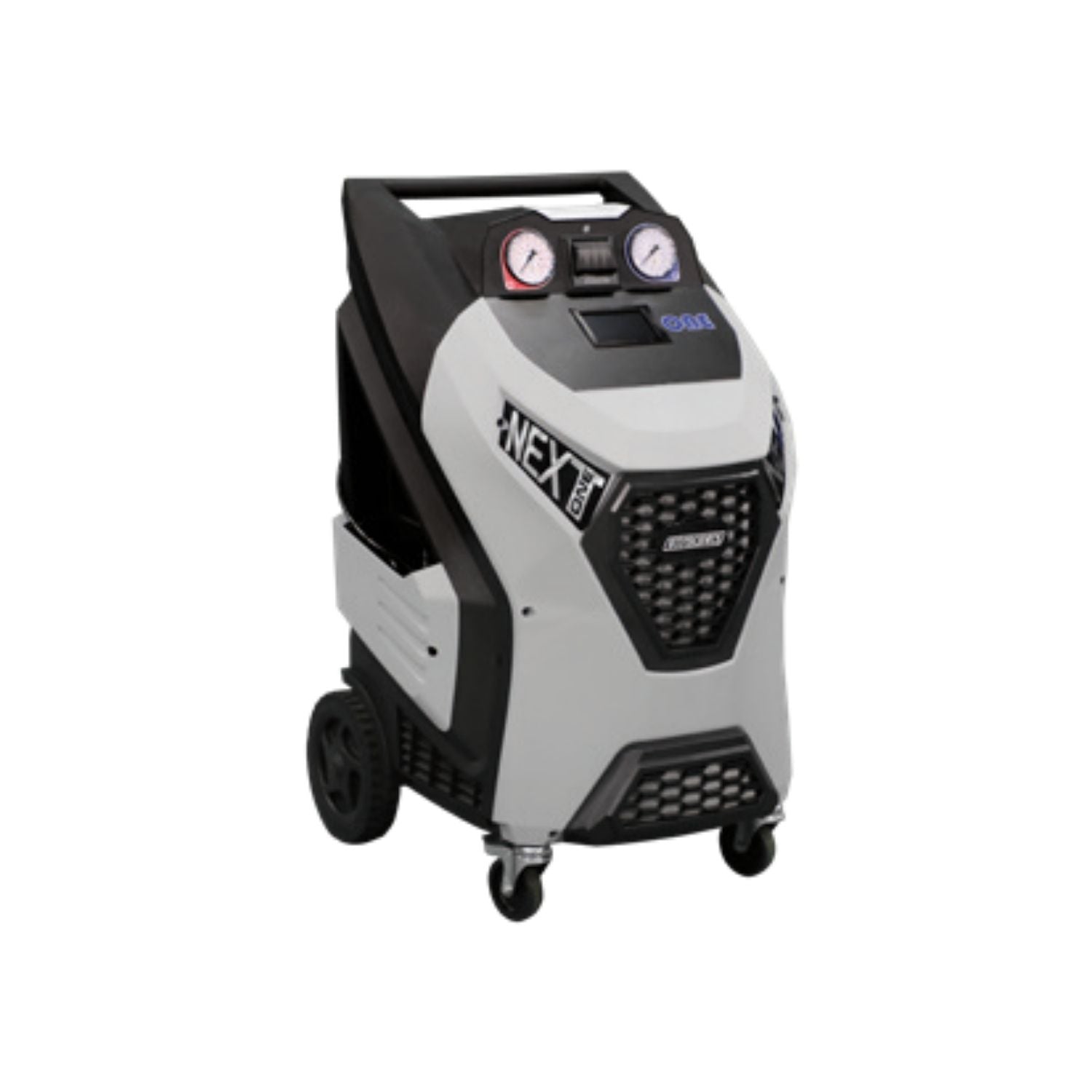

Hofmann ECO NEXT ONE HFO R1234yf A/C Service Station #EEAC830B

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Hofmann ECO NEXT ONE HFO R1234yf A/C Service Station is a fully automatic refrigerant recovery, recycle, vacuum, leak test, and recharge machine engineered for professional automotive repair shops, dealerships, and collision centers servicing modern R1234yf air conditioning systems. Designed for high-efficiency workflow and OEM-compliant service procedures, this advanced A/C station combines automatic operation, integrated refrigerant analysis, and hybrid vehicle compatibility in a compact commercial platform.

  Equipped with a 5-inch color touchscreen interface, integrated thermal printer, automatic service valves, and built-in gas analyzer, the ECO NEXT ONE HFO simplifies daily A/C maintenance while helping protect against refrigerant contamination. Its hybrid-ready functionality and automatic non-condensable gas purge system make it ideal for servicing modern passenger vehicles, EVs, and hybrid platforms.

  Enables technicians to meet modern OEM specifications while reducing greenhouse‑gas impact. Engineered for reliability in busy service bays.

• FEATURES AND BENEFITS

  • Designed for R1234yf Refrigerant: Engineered specifically for modern HFO automotive A/C systems
  • Fully Automatic Operation: Recovery, recycle, vacuum, leak test, and recharge functions operate automatically after hose connection
  • Integrated Gas Analyzer: Detects refrigerant purity to help prevent contamination of the recovery system
  • Hybrid Vehicle Compatible: Supports service procedures for hybrid and electric vehicle A/C systems
  • 5-Inch Color Touchscreen Display: Provides intuitive navigation and simplified technician operation
  • Integrated Thermal Printer: Generates customer service reports and refrigerant service documentation
  • Automatic Non-Condensable Gas Purge: Improves refrigerant recovery efficiency and system performance
  • Status Light Indicator System: Allows technicians to monitor machine operation from a distance
  • Automatic Service Valves: Reduces technician intervention during service procedures
  • Integrated Vehicle Database: Includes U.S. vehicle database for faster service setup
  • Bottle Heater Included: Improves refrigerant management and charging performance
  • Long Service Hoses with Side Storage: Enhances vehicle accessibility and shop organization
  • Clear Vacuum Pump Oil Inspection Window: Simplifies maintenance and monitoring procedures
  • Commercial-Grade Construction: Built for continuous use in demanding professional shop environments
  • Quick Setup Design: Simplifies installation and daily operation in high-volume service facilities


• SPECIFICATIONS

  Brand:	Hofmann
  Part Number:	EEAC830B
  Application:	A/C Service Equipment
  Voltage:	110V 60 Hz
  Vacuum pump:	100 l/min | 3.5cfm
  Tank scale resolution:	10 g
  Working temperature range:	50° - 120°F | 10°-50°C
  Refrigerant tank:	30 lbs. | 13.6 kg
  Hoses:	10 ft. | 3m
  Service valves:	Automatic
  Display:	5-in. color touchscreen
  Leak check in vacuum:	Standard
  Hybrid function:	Standard
  Flushing Kit:	Optional
  Bottle heater:	Standard
  Printer:	Standard
  Non-condensable gas purge:	Automatic
  Database:	Standard
  Status light:	Standard
  Dimensions LxWxH:	43"x26"x28" | 109x66x71cm
  Weight:	180 lbs. | 82 kg
