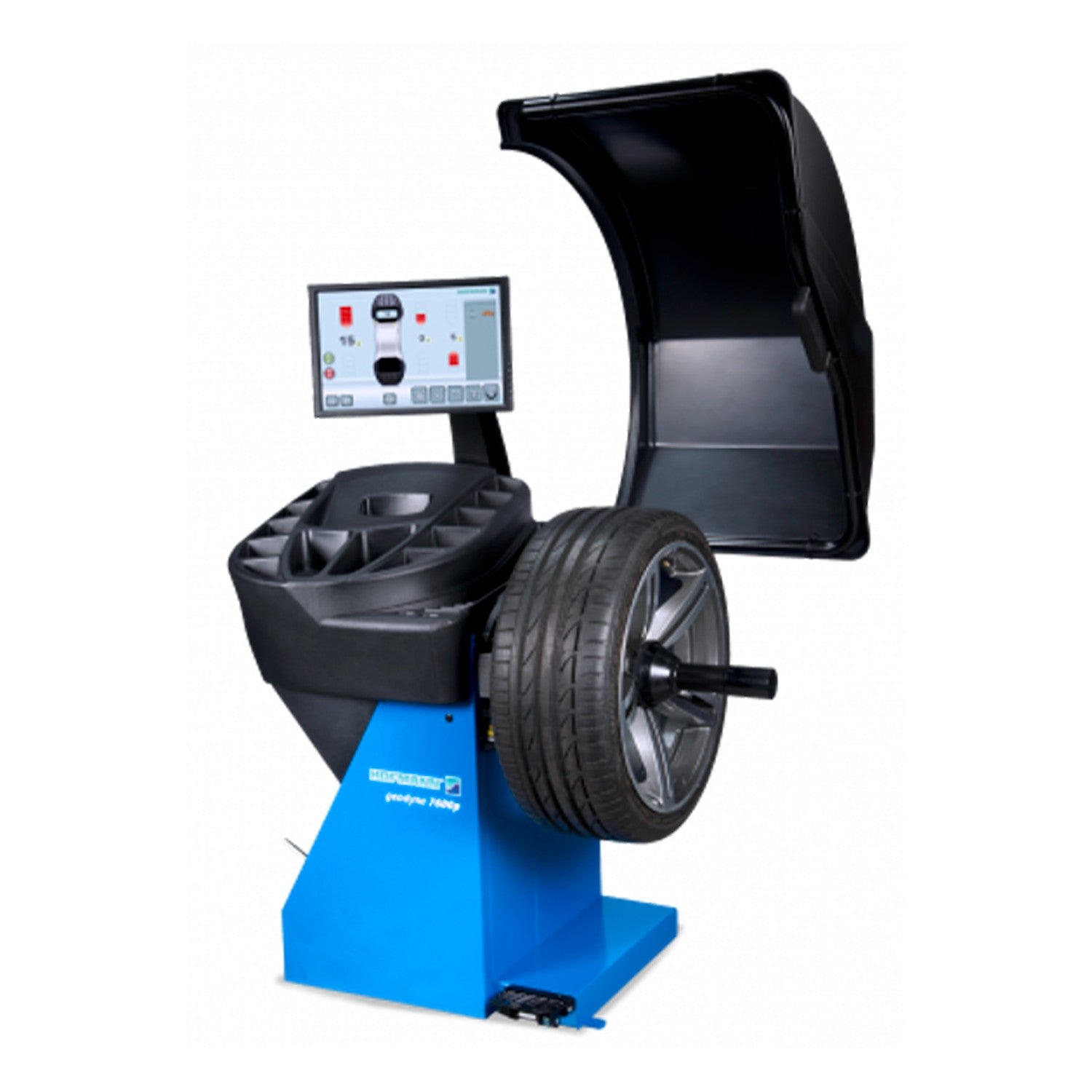

Hofmann GEODYNA® 7600P Wheel Balancer Touchscreen Monitor #EEWB765AP
Couldn't load pickup availability
-
DESCRIPTION
The Hofmann GEODYNA® 7600P Wheel Balancer is a premium high-performance balancing system designed for tire shops, dealerships, and automotive service centers with medium to high tire service volume. Combining advanced automation, touchscreen controls, and precision balancing technology, the GEODYNA® 7600P helps technicians improve workflow efficiency while delivering fast and highly accurate balancing results.
Equipped with smartSonar™ automatic rim width detection, Power Clamp™ electromechanical wheel clamping, and easyWeight™ laser-guided weight positioning, this wheel balancer minimizes setup time and improves repeatability during balancing procedures. Its intuitive touchscreen interface and QuickBAL™ optimization technology make the GEODYNA® 7600P an ideal solution for high-throughput professional environments.
-
FEATURES AND BENEFITS
- Touchscreen Interface: Large intuitive touchscreen display with color-guided indicators improves workflow and usability
- Power Clamp™ System: Electromechanical clamping maintains consistent wheel centering force for repeatable balancing accuracy
- smartSonar™ Technology: Automatically measures rim width to eliminate manual input and reduce setup errors
- easyWeight™ Laser Guidance: Pinpoints exact adhesive weight placement locations for improved balancing precision
- easyALU™ Assisted Data Entry: Semi-automatic gauge arm simplifies rim measurement and balancing mode selection
- QuickBAL™ Optimization: Reduces cycle times for faster wheel balancing operations
- Split Weight Mode: Allows hidden adhesive weight placement behind spokes for improved wheel appearance
- Automatic Wheel Positioning: Rotates wheel to the correct weight application location automatically
- LED Rim Lighting: Improves visibility for wheel cleaning and weight placement procedures
- VPM Measurement Technology: Patented Virtual Plane Measurement system improves balancing precision and stability
- High-Volume Shop Capability: Designed for tire shops, dealerships, and multi-bay service centers
-
Heavy-Duty Commercial Construction: Built for long-term durability and continuous professional use
-
SPECIFICATIONS
Brand: Hofmann Part Number: EEWB765AP Manual Rim Diameter Range: 8” - 32” | 20.3 - 81.2cm Manual Rim Width Range: 1” - 20” | 2.54 - 50.8cm Max. Rim Width: 20" | 51cm Max. Wheel Diameter: 42” | 106.6cm Semi-Automatic Rim Diameter Range: 8” - 25” | 20 - 63.5cm Semi-Automatic Rim Width Range: 3” - 15” | 7.6 - 38cm Max. Wheel Weight: 154 lbs. | 70 kg Power Supply: 115V 1Ph 60Hz Dimensions (L x W x H): 53” x 60” x 71” | 135 x 152 x 180cm Net Weight: 254 lbs. | 115 kg -
DOWNLOADS
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:
HOFMANN WHEEL BALANCERS
- LABOR 6 MONTHS
- PARTS 1 YEAR
- ELECTRONIC CIRCUIT BOARD 3 YEARS
- ELECTRIC MOTOR 5 YEARS
HOFMANN WHEEL ALIGNERS
- LABOR - 6 MONTHS
- CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
- PARTS & PRINTER - 1 YEAR
Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:
HOFMANN BRAKE LATHES
- LABOR - 6 MONTHS
- PARTS - 2 YEARS
- ELECTRIC MOTOR - 1 YEAR
HOFMANN TIRE CHANGERS
- LABOR - 6 MONTHS
- PARTS - 1 YEAR
- ELECTRIC MOTOR - 3 YEARS
- AIR MOTOR - 1 YEAR
- TRANSMISSION - 3 YEARS
Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:
HOFMANN LIFTS
- LABOR - 1 YEAR
- PARTS - 1 YEAR
- POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
- HYDRAULICS - 1 YEAR
