Hofmann monty® 1270 Swing-Arm Tire Changer #EEWH764AU1
Couldn't load pickup availability
| Brand | Hofmann |
| Part Number | EEWH764AU1 |
| Max Rim Diameter | 20" (51cm) |
| Max Tire Width | 13" (33cm) |
| Max Rim Width | 12" (31cm) |
| Max Wheel Diameter | 39" (99cm) |
| Power Supply | 115V, 1-Phase, 60Hz |
| Air Pressure Required | 116–174 PSI (8–12 bar) |

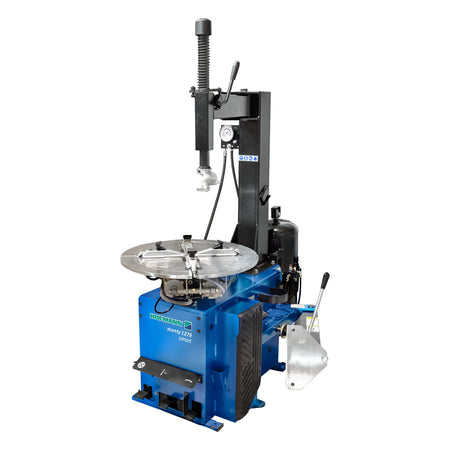

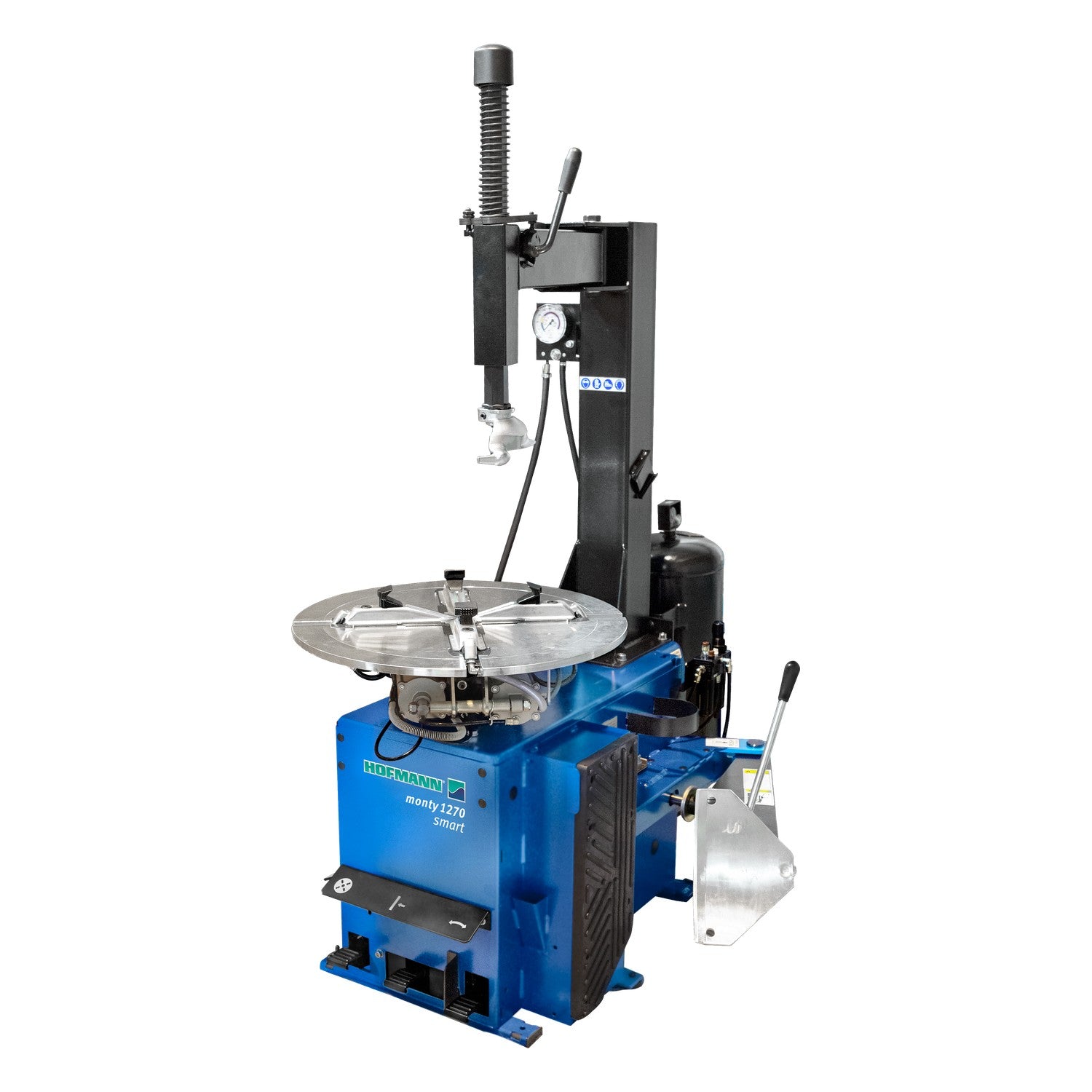

Hofmann monty® 1270 Swing-Arm Tire Changer
A small shop or single-bay operation running standard passenger and light-truck tires doesn't need — or have room for — a full tilt-tower changer, but a cheap entry-level unit often can't protect wheel finishes or handle a steady daily volume. The Hofmann monty® 1270 is built for that middle ground: a space-saving swing-arm design that mounts wall-adjacent instead of eating floor space, with self-centering clamping jaws that protect wheel finishes on everyday passenger and light-truck service.
Compared to its closest sibling, the monty® 3300, the 1270 is a smaller-capacity, smaller-footprint machine built for standard passenger/light-truck tires — a 20" max rim diameter and 115V single-phase power versus the 3300's 30" rim capacity, tilt-tower clearance, and pneumatic assist system for low-profile and performance tires. At $4,778.74 versus $10,981.57, the 1270 is the right call for shops that don't need that extra clearance or performance-tire capability.
Who the monty® 1270 Is Built For
- Small independent shops and single-bay operations with limited floor space that need a wall-adjacent, space-saving footprint instead of a full tilt-tower unit.
- Shops running standard passenger and light-truck tire volume up to a 20" max rim diameter and 39" max wheel diameter — the 1270's stated capacity.
- Bays on standard 115V single-phase power without a 230V circuit available for a larger tilt-tower changer.
- Shops that want protective mount/demount components built in to help reduce wheel-damage risk on routine passenger and light-truck jobs, without paying for tilt-tower features they don't need.
- Owners replacing an aging or entry-level changer who want self-centering clamping jaws for consistent, reliable wheel positioning on daily volume work.
- Service centers where an on-floor pedal bead breaker is sufficient — shops not regularly fighting low-profile or performance-tire bead-seating problems.
What the monty® 1270 Is NOT Built For
If your shop runs low-profile, run-flat, or high-performance tires on a regular basis, the 1270 isn't the right fit — it's built for standard passenger/light-truck service, not the tilt-tower clearance and pneumatic assist the Hofmann monty® 3300 offers for those harder jobs.
What Makes the monty® 1270 Different
Swing-Arm Design
Side-pivot mounting arm allows space-saving wall-adjacent installation — built for shops that don't have room for a full tilt-tower footprint.
On-Floor Pedal Bead Breaker
Ergonomically positioned side-shovel bead breaker simplifies tire removal without a separate powered bead-seating attachment.
Self-Centering Clamping Jaws
Securely hold wheels in position while helping protect wheel finishes during mount/demount.
Compact Shop Footprint
Sized for smaller shops and service bays with limited floor space — a genuine 1-bay-friendly footprint, not a scaled-down commercial unit.
Protective Mount/Demount Components
Helps reduce the risk of wheel damage during routine passenger and light-truck tire service.
- Small shops with limited floor space, standard tire mix
- Bays on 115V power needing a compact, wall-mount unit
- Shops running low-profile, run-flat, or performance tires
- Bays that need a 30"+ rim clamping range
monty® 1270 vs. monty® 3300 — Which Fits Your Shop?
| Spec | monty® 1270 | monty® 3300 |
|---|---|---|
| Rim/Clamping Range | 20" (51cm) | 30" |
| Max Wheel Diameter | 39" (99cm) | 44" |
| Power Supply | 115V, 1-Phase, 60Hz | 230V, 1-Phase, 60Hz |
| Price | $4,778.74 | $10,981.57 |
| Best fit | Swing-Arm Tire Changer (Passenger/Light Truck) | Tilt-Tower Tire Changer (Passenger/SUV/Light Truck) |
Not sure which model is right for your shop? Call (844) 480-6059 and we'll help you decide.
Full Specifications — monty® 1270
| Brand | Hofmann |
| Part Number | EEWH764AU1 |
| Max Rim Diameter | 20" (51cm) |
| Max Tire Width | 13" (33cm) |
| Max Rim Width | 12" (31cm) |
| Max Wheel Diameter | 39" (99cm) |
| Power Supply | 115V, 1-Phase, 60Hz |
| Air Pressure Required | 116–174 PSI (8–12 bar) |
| Dimensions (L x W x H) | 49" x 47" x 68" (124 x 119 x 173cm) |
⚠️ Setup Requirements
- Power: Confirm your shop's electrical service matches this unit's power supply requirement before ordering.
- Air supply: Confirm shop compressed-air capacity meets the listed air pressure requirement (where applicable).
- Floor space: Confirm clear floor space for the unit's footprint plus operator clearance on all working sides.
- Setup help: Call (844) 480-6059 with any setup or first-use questions.
Hofmann Warranty — monty® 1270
Hofmann backs the monty® 1270 with the following coverage terms.
| Item | Detail |
|---|---|
| Labor | 6 Months |
| Parts | 1 Year |
| Electric Motor | 3 Years |
| Air Motor | 1 Year |
| Transmission | 3 Years |
Warranty service is coordinated through Alamo Equipment & Service. Call (844) 480-6059 with any warranty question — we help coordinate service, not just point you to a manufacturer hotline.
⚠️ Confirm exact terms at the time of purchase.
Frequently Asked Questions — monty® 1270
Why Buy the monty® 1270 from Alamo Equipment & Service?
- We deliver and set it up. The monty® 1270 runs on standard 115V single-phase power and needs 116–174 PSI shop air, with a compact 49" x 47" footprint — we confirm your bay layout and power before delivery.
- We service it. When something needs attention after the sale, we're the same people you call — not a national warranty line.
- We help you pick the right unit. At a 20" max rim diameter and 39" max wheel diameter for $4,778.74, the monty® 1270 is sized for standard passenger and light-truck volume — we'll confirm that matches your shop's typical wheel mix before you buy.
- Free shipping. Delivered to your shop, no hidden freight fees.
- Expert comparison help. Not sure if this is the right model vs. Hofmann monty® 3300? Call (844) 480-6059 — we'll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:
HOFMANN WHEEL BALANCERS
- LABOR 6 MONTHS
- PARTS 1 YEAR
- ELECTRONIC CIRCUIT BOARD 3 YEARS
- ELECTRIC MOTOR 5 YEARS
HOFMANN WHEEL ALIGNERS
- LABOR - 6 MONTHS
- CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
- PARTS & PRINTER - 1 YEAR
Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:
HOFMANN BRAKE LATHES
- LABOR - 6 MONTHS
- PARTS - 2 YEARS
- ELECTRIC MOTOR - 1 YEAR
HOFMANN TIRE CHANGERS
- LABOR - 6 MONTHS
- PARTS - 1 YEAR
- ELECTRIC MOTOR - 3 YEARS
- AIR MOTOR - 1 YEAR
- TRANSMISSION - 3 YEARS
Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:
HOFMANN LIFTS
- LABOR - 1 YEAR
- PARTS - 1 YEAR
- POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
- HYDRAULICS - 1 YEAR
