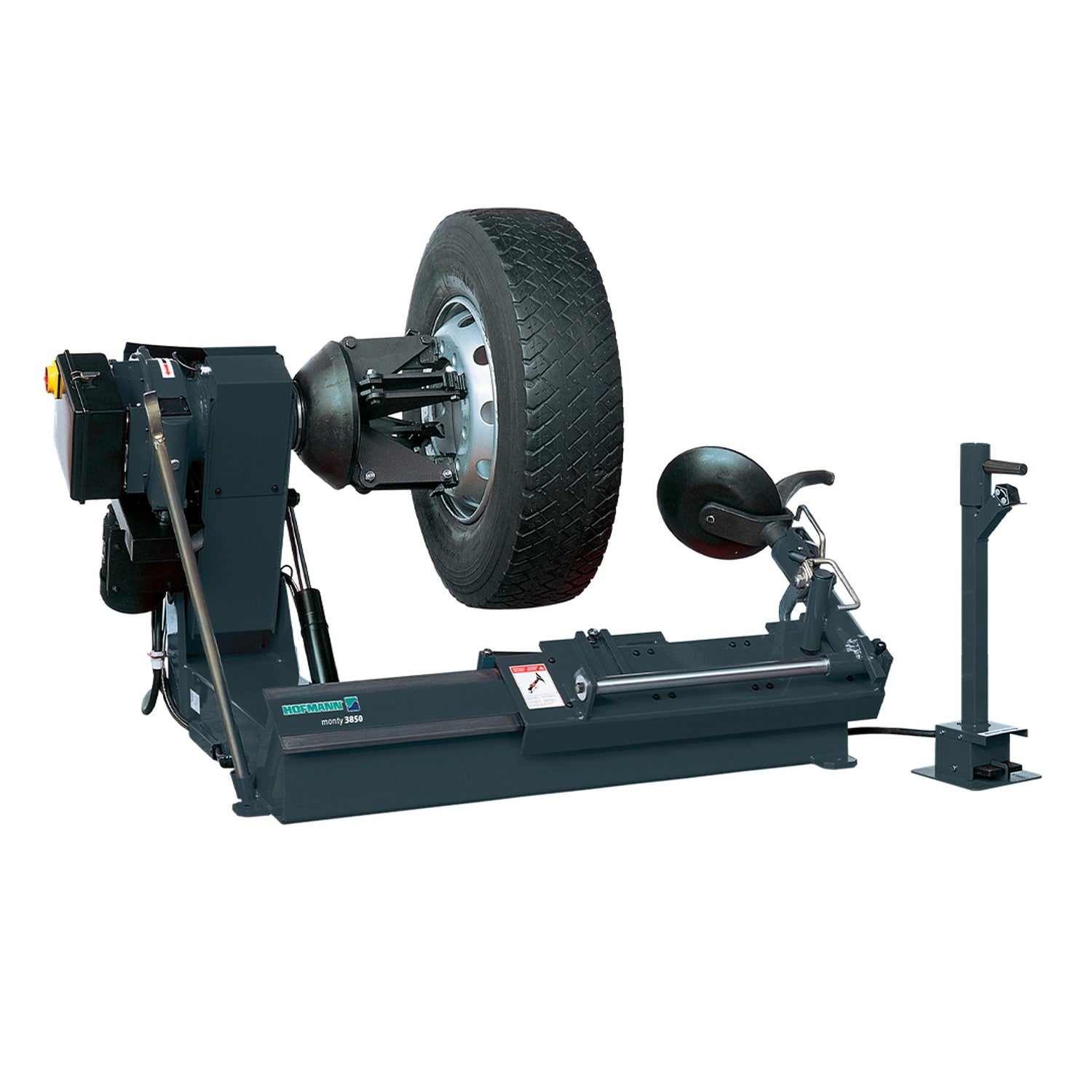

Hofmann monty® 3850 Heavy-Duty Truck Tire Changer #EEWH703AUA

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOWNLOADS

• DESCRIPTION

  The Hofmann monty® 3850 Heavy-Duty Truck Tire Changer is engineered for commercial truck tire service, fleet maintenance facilities, and heavy-duty tire shops handling large wheel assemblies. Designed for buses, tractor-trailers, agricultural equipment, and OTR applications, the monty® 3850 efficiently services tube-style and tubeless wheel assemblies up to 59 inches in diameter.

  Featuring a hydraulically operated four-jaw chuck, electro-hydraulic drive system, and integrated bead breaker with mount/demount head assembly, this heavy-duty tire changer delivers dependable performance for demanding commercial environments. Its mobile remote-control operation allows a single technician to safely and efficiently manage tire changing procedures from a distance.

• FEATURES AND BENEFITS

  • Electro-Hydraulic Drive System: Provides powerful and precise control for heavy-duty tire service operations
  • Hydraulic Four-Jaw Chuck: Self-centering chuck securely clamps large wheel assemblies during service
  • Mobile Remote Control Unit: Allows one technician to safely operate the machine from a distance
  • Integrated Bead Breaker System: Tilting bead breaker improves disk positioning and tire handling efficiency
  • Patented Mount/Demount Assembly: Combines bead breaker and mounting tools into one efficient system
  • Non-Return Safety Valve: Maintains chuck pressure to help prevent accidental wheel unclamping
  • Heavy-Duty Wheel Capacity: Handles large commercial truck and OTR wheel assemblies with ease
  • Versatile Tire Compatibility: Services tube-type, tubeless, multi-piece, Budd, and Dayton wheel applications
  • Swing-Arm Tool Design: Provides improved working access and operational flexibility
  • Heavy-Duty Commercial Construction: Built for demanding fleet and truck tire environments
  • One-Man Operation Capability: Improves productivity and reduces labor requirements
  • Professional Truck Tire Service Performance: Ideal for commercial fleet, agricultural, and industrial applications


• SPECIFICATIONS

  Brand:	Hofmann
  Part Number:	EEWH703AUA
  Rim Clamping Range:	14”-26” | 36-66cm
  Max. Tire Width:	27.5″ | 69cm
  Max. Wheel Diameter:	59" | 150cm
  Max. Wheel Weight:	2,205 lbs. | 1,000 kg
  Power Supply:	208V 1Ph 60Hz
  Dimensions (L x W x H):	83″ x 83″ x 58″ | 210 x 210 x 148cm

• DOWNLOADS

  • Brochure
  • Accessories Catalog
