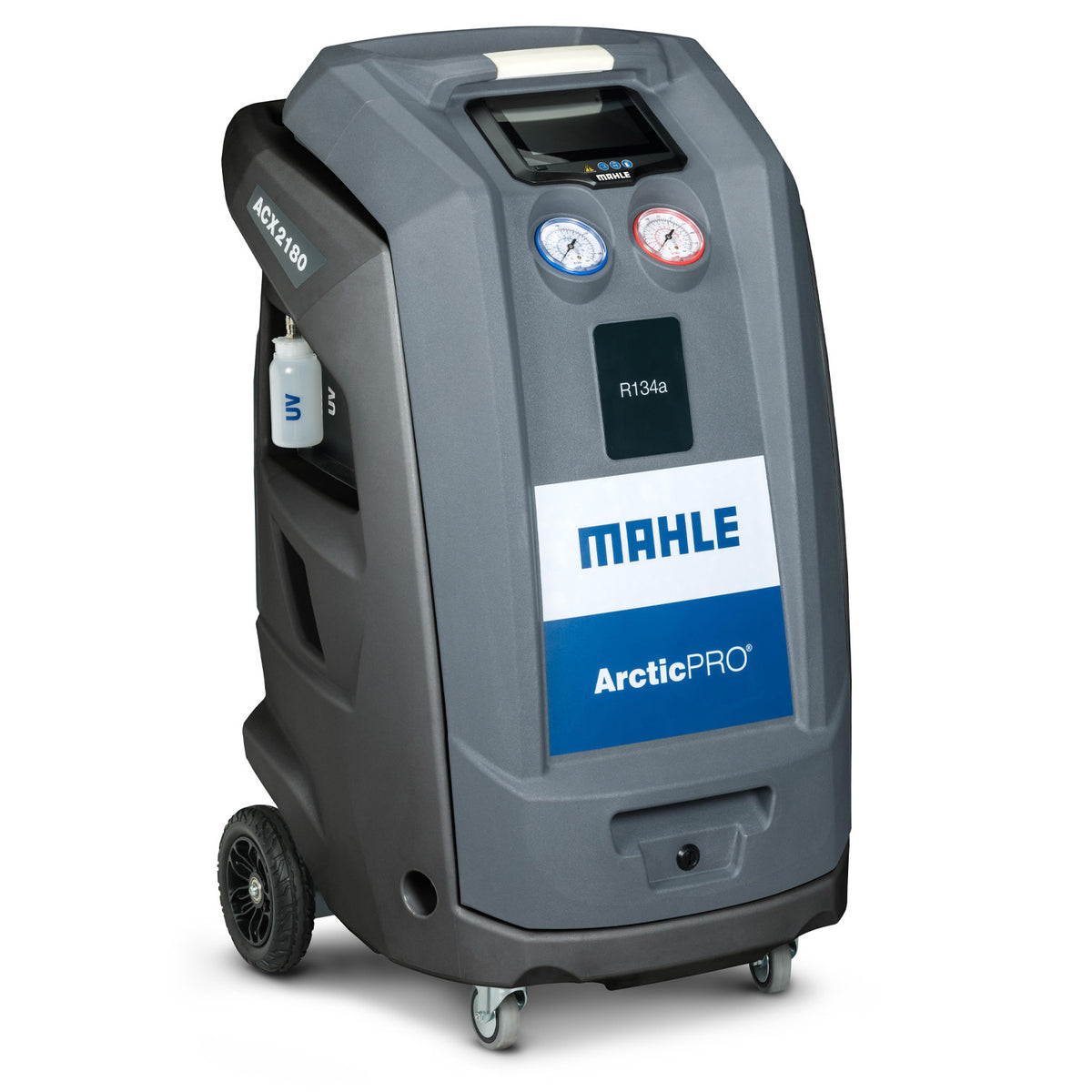

Mahle ACX2180 ArcticPRO® R134a Refrigerant Handling System #460-80447-00
Couldn't load pickup availability
-
DESCRIPTION
If you’re looking for a machine built for performance, look to the ArcticPRO ACX2180/2180H, ACX2150, and ACX2120H R134a Refrigerant Handling Systems. These new high-performance units are fully automatic and can run practically unattended. Each unit was designed with an ergonomic, convenient service door and an intuitive, state-of-the-art user interface to provide an optimal environment for effortless A/C service and simple unit maintenance. For a streamlined shop and safe and precise A/C refrigerant handling, rely on ArcticPRO.
-
FEATURES

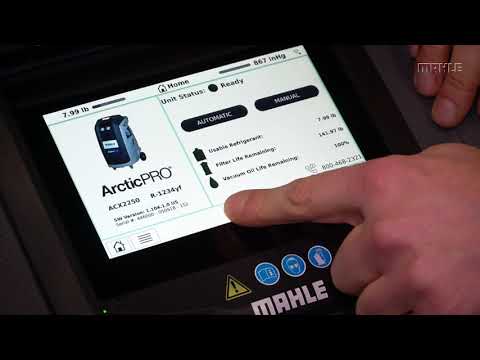

- State-of-the-Art. Ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
- Extra Transducers. Contains three transducers, providing reduced process times over dual sensor units.
- Status Indicator. LED light indicates status visible from anywhere in the workshop.
- Smart. iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
- Best In Class Serviceability. New ergonomic hinged service door simplifies unit service.
- Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
- Oil System Management. Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and allows two oil types for injection.
- UV Dye Injection. Integrated UV dye injection provides high level of A/C system leak detection.
- Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
- Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
- Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage and a two year standard warranty.
- Network Printing. Retains valuable service records, network printing capability to print services provided for customer.
- Optional thermal printer allows printing of service reports.
- Optional refrigerant identifier prevents contamination of machine internals.
Includes
- #023 80095 00 Quick Release High Side Coupling R134A
- #023 80096 00 Quick Release Low Side Coupling R134A
- #028 80532 00 Red Hose R134A
- #028 80533 00 Blue Hose R134A
Optional Accessories Available
- 360 83254 00 Filter Combo
- 026 80785 00 Dust Cover
- 026 80698 00 Oil Charge Bottle
- 026 80699 00 Oil Drain Bottle
- 360 82744 00 Calibration Check Ball
- 023 80147 00 Adaptor LP (External Bottle) USACME 1/2 R134A
- 026 80700 00 Vacuum Pump VE215
- 011 80070 00 Vacuum Pump Oil (Quart)
- 360 83269 00 Thermal Printer Installation Kit
- 360 83110 00 Thermal Printer Paper 5PK
- 024 80205 00 Power Filter 15A
- 360 82956 00 Safety Goggles
-
SPECIFICATIONS
Specifications ACX2180 Certifications SAE J2788, SAE J2099, UL 1963 Charge Performance +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C) Recovery Performance 95% at 70° to 75°F (21° to 24°C) within 30 minutes Operation Fully Automatic Charging Cylinder 30 lb. (13.6 kg) DOT Compressor 3/8 HP-0.279kW Display
Color, 7” Capacitive Touch Screen Filter-Drier Capacity
150 lb. (68kg)spin-on type Hoses
9 ft. (2.75 m) Hybrid Function
No - Only ACX2180H Languages
English, French, Spanish Operating Ranges
50° - 122°F (10°-50°C) Power Source
120 VAC - 60 HZ - 12 AMP Printer
Optional Vacuum Pump
2 CFM dual stage Weight
215 lb. (98 kg) Dimensions
47" H x 29" W x 29" D (119 cm x 74 cm x 74 cm)
-
DOWNLOADS
- 2 Years – Parts & Labor
Click Below on the Brochure
Mahle ACX2180 ArcticPRO® R134a Refrigerant Handling System Manual brochure
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
1 Year Labor, 2 Years Parts
Add the Extended Warranty Includes
- A MAHLE authorized service provider to install kit & calibrate scales
- A functional test of all components to ensure proper operation
- A service of refrigerant identifier
Add the Extended Warranty Conditions
- ACX stations must be within the current factory warranty period
- Not valid on refurbished ACX models
- Maximum of 3 annual warranty extensions
