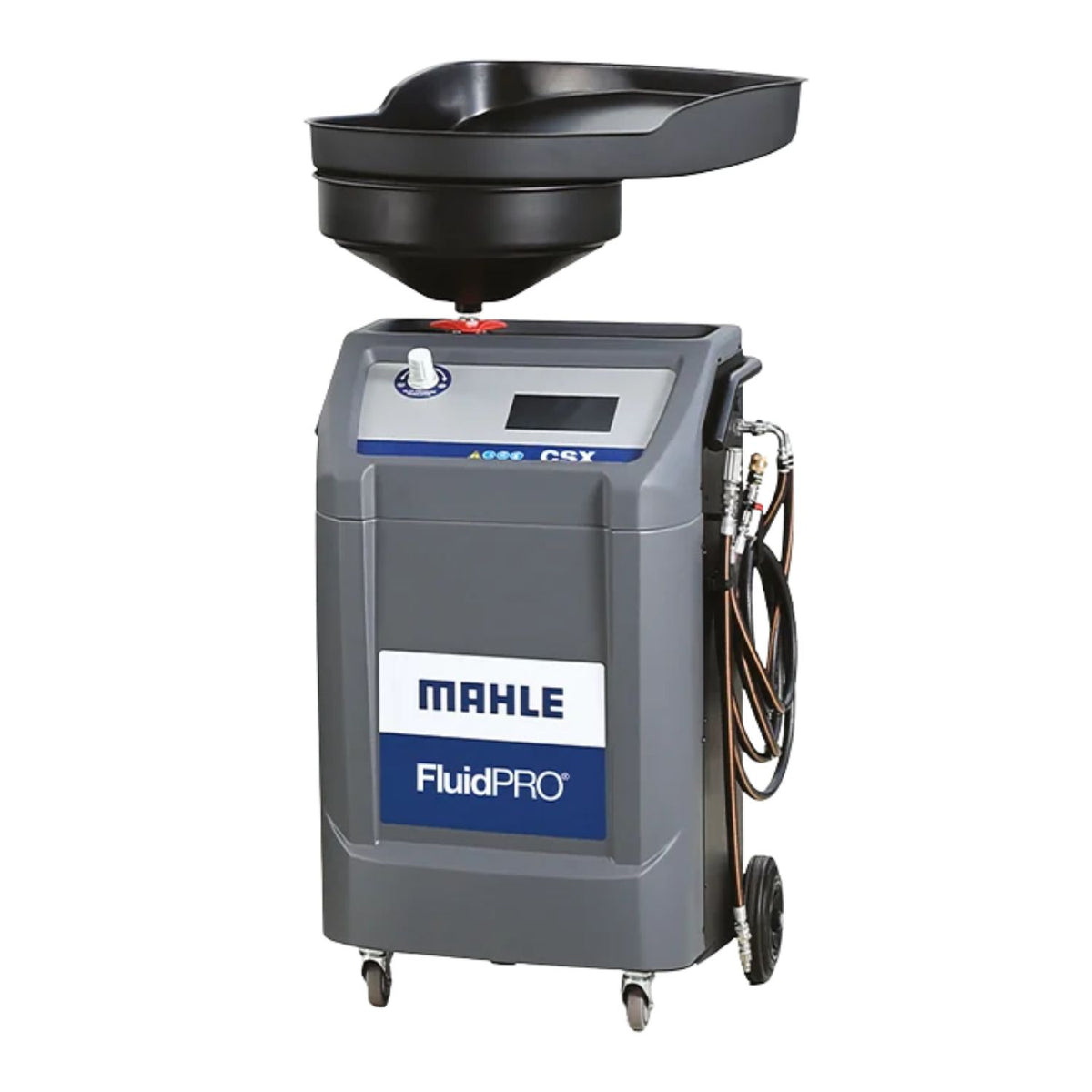

Mahle CSX Coolant Exchange 120V with ICE Adapters #470-80043-00
| Part Number | 470-80043-00 / 470 80043 00 |
| Configuration | 120V CSX with ICE Adapters |
| Application | ICE, BEV and EV Coolant Service |
| Interface | IP65-Rated 7 in. Color Touch Display |
| Fill Accuracy | ±0.05 L (0.013 gal) |
| New / Waste Coolant Tanks | 9.25 gal (35 L) |
| Service Hoses | 15 ft. (4.5 m) |
| Power | 120 VAC / 60 Hz, 12 A |
| Shop Air | 60–140 PSI, Dry / Non-Oiled |
| Vacuum Pump | 1.8 CFM (51 LPM), Dual Stage |
| Coolant Pump | 2.6 GPM (10 LPM) |
| Weight | 137 lb (62 kg) |
| Dimensions | 47 × 29 × 29 in. (H × L × W) |
| Warranty | 1 year parts & labor (per MAHLE) |
Mahle CSX Coolant Exchange 120V with ICE Adapters #470-80043-00
The Mahle CSX #470-80043-00 combines the fully automatic CSX coolant service platform with the ICE adapter configuration for shops servicing conventional internal-combustion vehicles alongside BEV and EV platforms.
The CSX supports drain and fill, vacuum-and-fill, in-line flush/exchange, siphon, top-off, vacuum leak testing, and pressure leak testing. Its 7-inch IP65-rated color touchscreen, built-in vehicle database, automatic leak testing, and automatic shut-off help streamline coolant service procedures.
Key Features
- Configured with ICE vehicle adapter capability
- Fully automatic operation with automatic shut-off
- Automatic leak test before filling
- Less than 5% cross-contamination during coolant changes
- Vacuum-assisted draining
- Built-in vehicle database
- 19 selectable languages
- Wireless reporting and software updates
- Adapter tray with drain and quick-connect fittings
Need help confirming this Mahle product before ordering? Call Alamo Equipment at (817) 865-3707.
Part numbers: 470-80043-00, 4708004300, 470 80043 00
