Mahle FluidPRO ATX-280 Auto Transmission Exchange #400-80022-00, 400-80023-00
Regular price
$6,670.11
Regular price
-30%
$9,524.92
Sale price
$6,670.11
Couldn't load pickup availability
-
DESCRIPTION

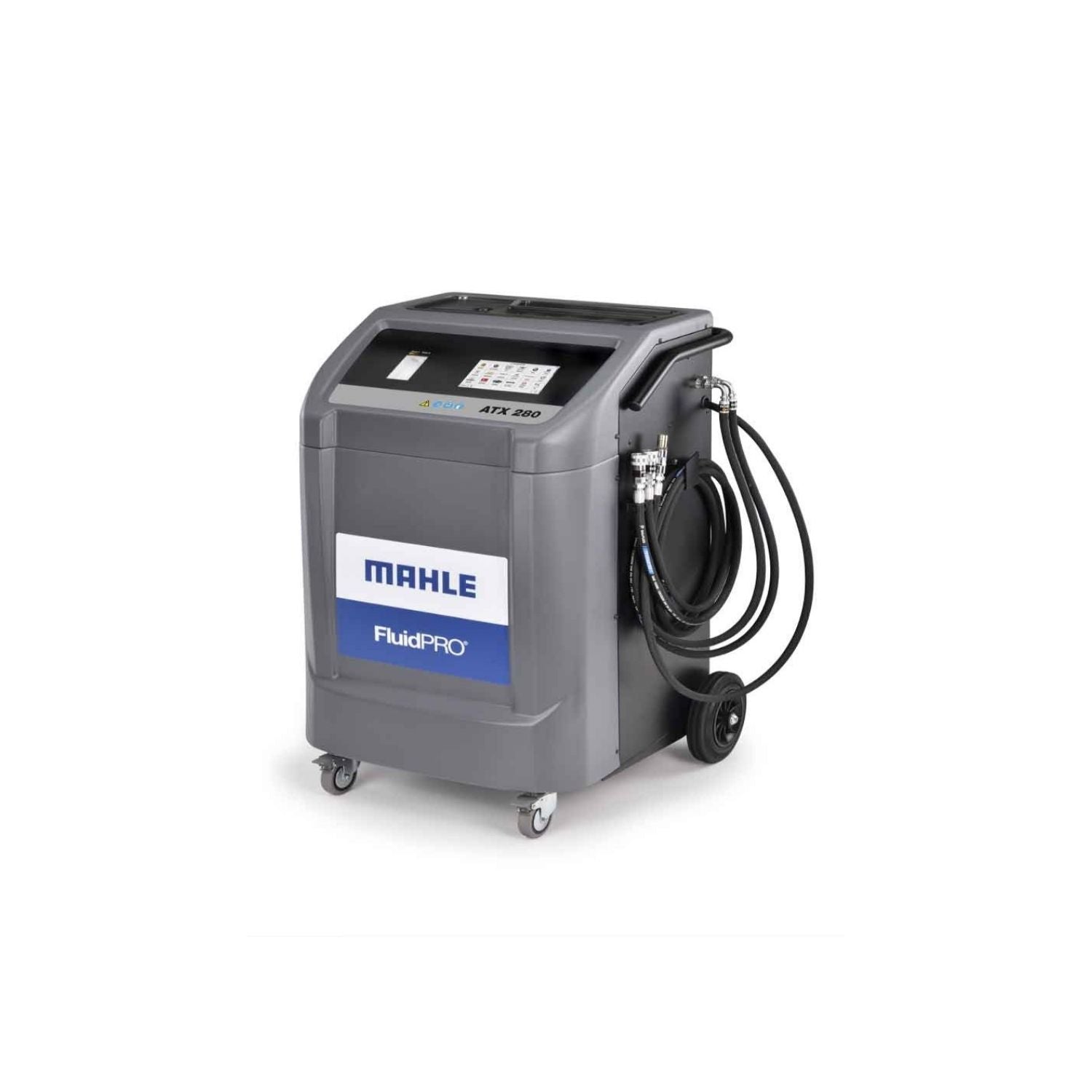

The Mahle ATX-280 Automatic Transmission Fluid Exchange Machine is a next-generation FluidPRO system designed for fast, accurate, and fully automated transmission fluid service. Featuring a 7" touchscreen interface, built-in vehicle database, and automatic oil flow detection, the ATX-280 simplifies operation while improving service accuracy and efficiency.
This product is available in two configurations:
- Unit Only (400 80022 00): Ideal for shops that already have compatible adapters or specialized setups.
- With Adapter Set (400 80023 00): Includes the ATX Standard Adapter Kit (300-80048-00) along with dipstick wand assemblies (1/4", 5/16", and 3/8"), allowing connection to a wide range of vehicles, including domestic and import applications.
-
FEATURES AND BENEFITS
- Touchscreen Interface: 7" color display with intuitive graphical controls for easy operation
- Automatic Operation: Software-assisted system simplifies transmission fluid exchange
- Oil Flow Detection: Automatically detects flow direction to prevent system damage
- Built-in Database: Includes vehicle data, service info, and fluid capacities for accurate servicing
- WiFi Connectivity: Enables updates, remote assistance, and service report printing
- Zero Cross-Contamination: Internal cleaning process ensures fluid purity between services
- Fast Service Time: Full exchange typically completed in 2–5 minutes (cooler mode)
- Adapter Kit Option: Variant with adapters supports wider vehicle coverage and faster setup
-
SPECIFICATIONS
Brand: Mahle Product Line: FluidPRO Automotive Model: ATX-280 Product Type: Automatic transmission fluid exchange system Control System: Automatic, software-assisted with 7" touchscreen Pump System: Dual hydraulic pumps (approx. 8 L/min and 6 L/min) Fluid Capacity: 25 quarts (23.6 L) each (new & used tanks) Hoses: 2 x 3 m service hoses, 1 x 1.5 m drain hose Filtration: 90µ mesh filter Operating Range: 41°F to 122°F (5°C to 50°C) Power Supply: 110/230V, 50–60 Hz Process Time: 2–5 minutes Scale Accuracy: ±0.03% over usable range Dimensions: 29" L x 29" W x 47" H Weight (lbs): 136 Warranty: 1 year (parts and labor) -
