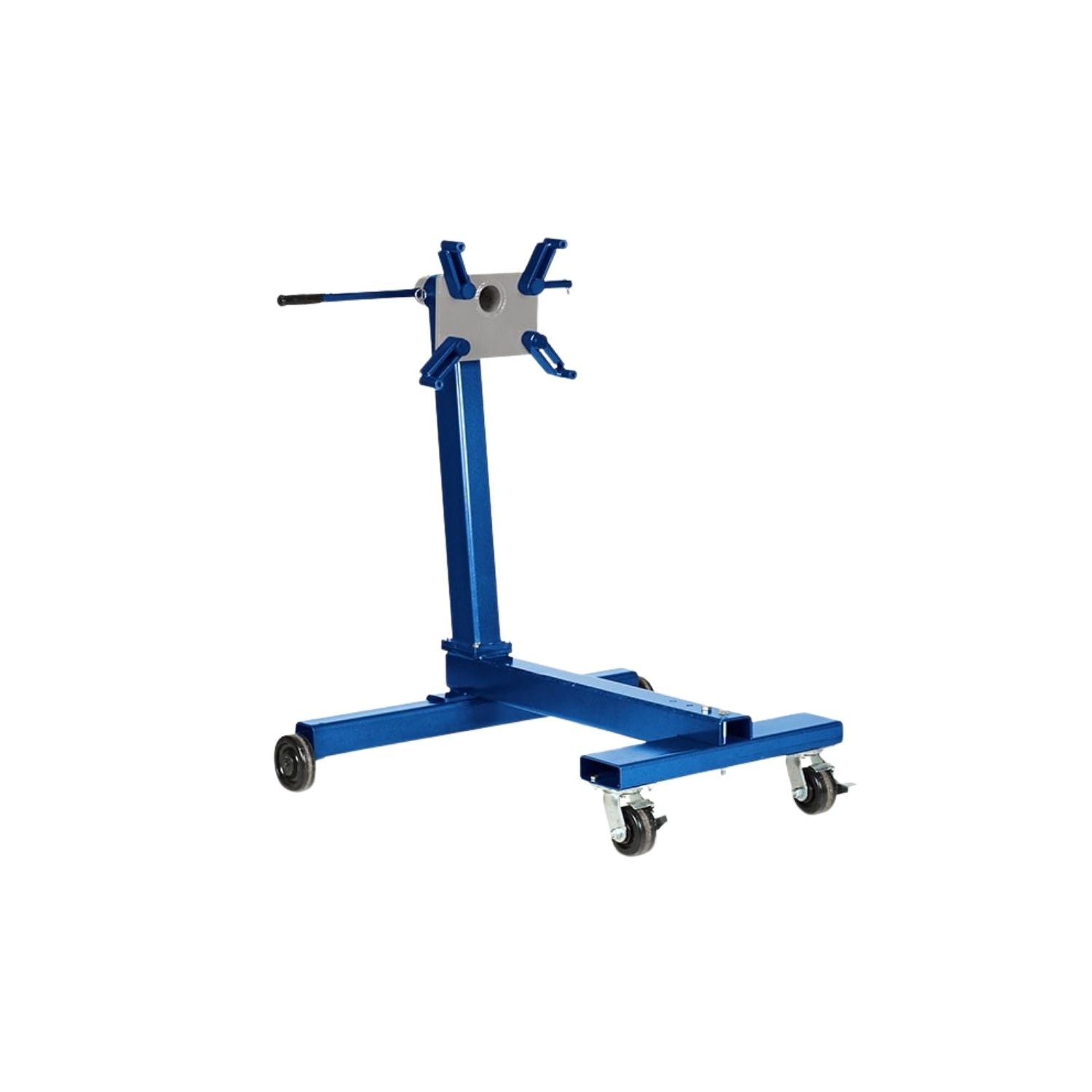

Mahle ShopPRO AES-1000 Engine Stand #485-80083-00
| Model / Part Number | 485-80083-00 |
| Product Type | 1,000 lb Automotive Engine Stand |
| Capacity | 1,000 lbs (454 kg) |
| Warranty | 1 year (parts and labor) |
Mahle AES-1000 — 1,000 lb Automotive Engine Stand
Rebuilding an engine on a rolling cart or a set of jack stands leaves it unstable and hard to reach from every angle - a tech ends up working around the engine instead of the engine working for the tech. Without a stand built to rotate the block, jobs that should take an afternoon stretch out because you're constantly repositioning the block by hand or fighting to reach the far side.
The AES-1000 solves that with a 1,000 lb capacity mounting head that rotates a full 360°, so a tech can bring any face of the engine into reach without unbolting and re-mounting it. The adjustable, laterally-shifting mounting design adapts to different engine sizes and configurations, and locking swivel casters keep the whole stand stable during teardown and reassembly while still letting you roll it where it's needed in the bay.
Who the AES-1000 Is Built For
- ✅ Engine rebuild and teardown work where techs need full 360° access to every side of the block
- ✅ Shops handling a mix of engine sizes and mounting bolt patterns thanks to the adjustable mounting head
- ✅ Bays that need a stand that locks in place during service but still rolls easily between stations
What the AES-1000 Is NOT Built For
- ❌ Engines exceeding the 1,000 lb capacity - confirm your engine's dry weight before mounting
- ❌ Shops needing a fixed, non-rolling stand for a permanent teardown station
What Makes the AES-1000 Different
360° Rotating Mounting Head
The Mahle AES-1000 rotates a full 360°, bringing any face of the engine into working position without unbolting and re-mounting the block mid-job.
Adjustable, Lateral-Shift Mounting
The mounting head adjusts to fit different engine sizes and bolt patterns, so one stand handles a wider range of rebuild jobs instead of needing separate stands per engine family.
Locking Swivel Casters
Casters lock in place to keep the stand stable during teardown, but release to roll the whole assembly wherever the job needs it in the bay.
- Engine rebuild and teardown work where techs need full 360° access to every side of the block
- Shops handling a mix of engine sizes and mounting bolt patterns thanks to the adjustable mounting head
- Bays that need a stand that locks in place during service but still rolls easily between stations
- Engines exceeding the 1,000 lb capacity - confirm your engine's dry weight before mounting
- Shops needing a fixed, non-rolling stand for a permanent teardown station
Is the AES-1000 the Right Engine Stand for Your Shop?
| Capacity | 1,000 lbs (454 kg) |
| Rotation | 360°, full access to every side of the block |
| Mounting | Fully adjustable, laterally-shifting head fits multiple engine sizes |
| Mobility | Locking swivel casters - stable during service, easy to reposition |
Choose the AES-1000 for light-to-medium-duty engine rebuild work up to 1,000 lbs where you need full rotational access and the flexibility to reposition the stand around the bay.
Have questions about whether the AES-1000 fits your specific job? Call (844) 480-6059.
Full Specifications — AES-1000
| Model / Part Number | 485-80083-00 |
| Product Type | 1,000 lb Automotive Engine Stand |
| Capacity | 1,000 lbs (454 kg) |
| Height to Center Line | 41" |
| Max Swing Radius | 31" |
| Handle Length | 31–32" |
| Front Wheels | 4" swivel with brake |
| Rear Wheels | 5" fixed |
| Overall Dimensions | 41.5" L x 41" W x 49.5" H |
| Shipping Weight | 163 lbs |
| Warranty | 1 year (parts and labor) |
⚠️ Setup Requirements
- Floor space: 41.5" L x 41" W x 49.5" H footprint; plan clear access on at least two sides for service and operation.
- Weight: 163 lbs shipping weight — confirm your dock/receiving area can handle the unit.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — AES-1000
Mahle backs the AES-1000 with a 1 year (parts and labor) warranty, verified directly from the product’s own published specifications.
| Component | Coverage Term |
|---|---|
| Parts | 1 year (parts and labor) |
| Labor | 1 year (parts and labor) |
| Wear items | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Mahle warranty terms, conditions, and requirements.
