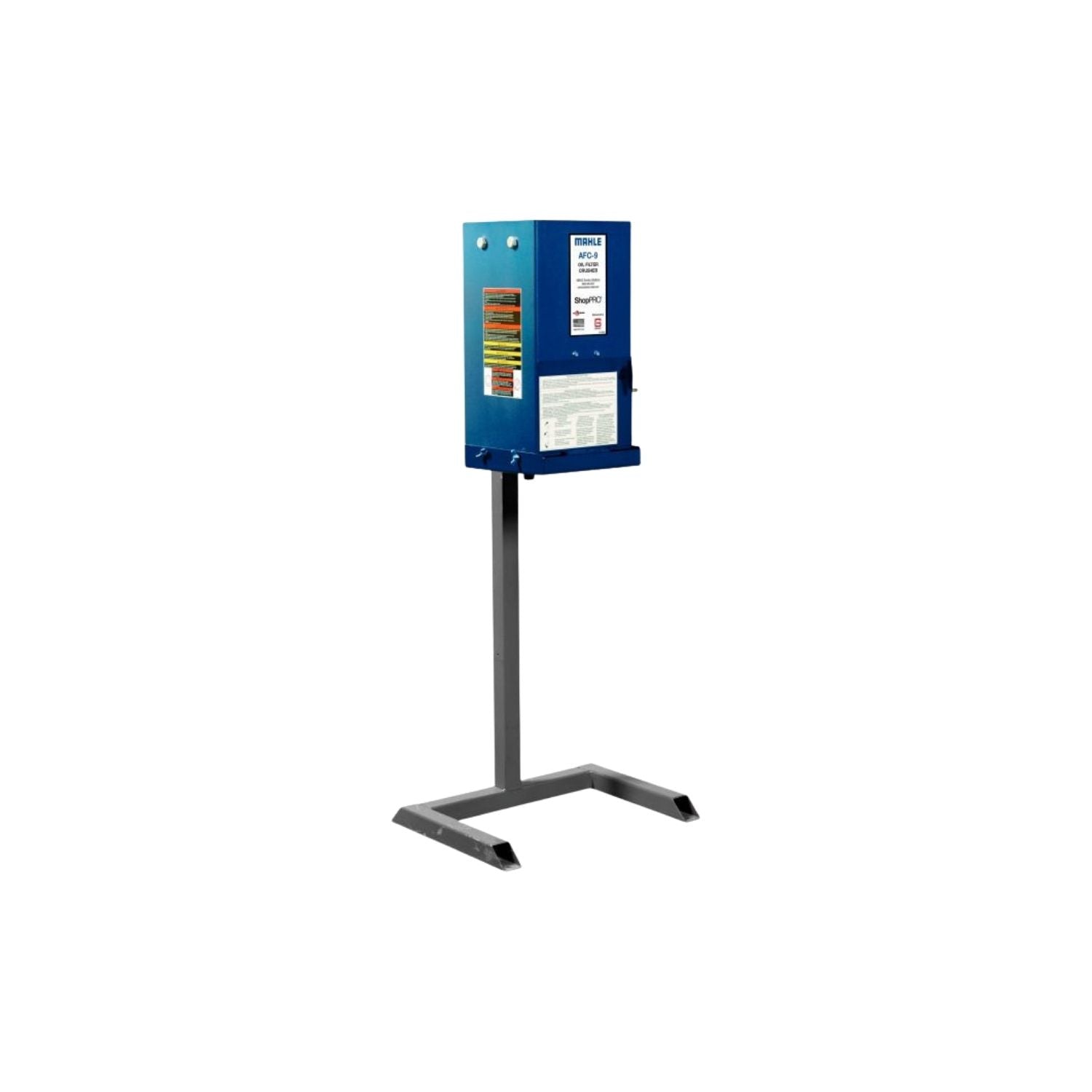

Mahle ShopPRO AFC-9 Automotive Filter Crusher #485-80081-00
| Model / Part Number | 485-80081-00 |
| Product Type | Automotive Filter Crusher (9" Chamber) |
| Capacity | Up to 4 spin-on oil filters per cycle |
| Warranty | 1 year (parts and labor) |
Mahle AFC-9 — Automotive Filter Crusher (9" Chamber)
Used spin-on oil filters pile up fast in a busy service bay, and hauling them off whole - still half full of oil and taking up space in a drum - eats into both shop space and recycling costs. Filters that aren't crushed also don't fully drain, so shops end up paying to dispose of filters that are mostly still holding used oil.
The AFC-9 solves both problems with a 9" chamber that handles up to four spin-on filters per cycle, running on 100% air power with no motor or hydraulic fluid to maintain. The crushing force reclaims the oil left in the filter into a removable catch basin, so it drains back into your used-oil stream instead of going out with the scrap metal, while a safety interlock keeps the door locked until the ram is fully retracted.
Who the AFC-9 Is Built For
- ✅ Shops generating enough used spin-on filters that manual disposal is eating real time and drum space
- ✅ Facilities that already have 100–160 psi shop air and want a maintenance-free crushing solution with no motor to service
- ✅ Environmentally-conscious shops that want to reclaim residual oil from filters instead of disposing of them full
What the AFC-9 Is NOT Built For
- ❌ Shops without a reliable 100–160 psi compressed air supply - the AFC-9 is 100% air operated
- ❌ Filters that don't fit the 9" H x 8" W x 8" D crushing chamber - verify filter size before ordering
What Makes the AFC-9 Different
9" Crushing Chamber
The Mahle AFC-9 handles up to four spin-on oil filters per cycle in its 9" chamber, cutting the number of crush cycles needed on a high-volume day.
100% Air Operated
No motor, no hydraulic fluid, no electrical components to maintain - just shop air (100–160 psi) driving the crushing ram, which means less scheduled maintenance than a powered alternative.
Safety Interlock + Removable Catch Basin
The door stays locked until the ram is fully retracted, and the removable catch basin collects reclaimed oil for easy cleanup between cycles.
- Shops generating enough used spin-on filters that manual disposal is eating real time and drum space
- Facilities that already have 100–160 psi shop air and want a maintenance-free crushing solution with no motor to service
- Environmentally-conscious shops that want to reclaim residual oil from filters instead of disposing of them full
- Shops without a reliable 100–160 psi compressed air supply - the AFC-9 is 100% air operated
- Filters that don't fit the 9" H x 8" W x 8" D crushing chamber - verify filter size before ordering
Is the AFC-9 the Right Filter Crusher for Your Shop?
| Chamber Size | 9" H x 8" W x 8" D |
| Cycle Capacity | Up to 4 spin-on filters per cycle |
| Power Source | 100% air operated (100–160 psi) |
| Safety | Interlock keeps door locked until ram is fully retracted |
Choose the AFC-9 if your shop generates enough used spin-on filters to justify a dedicated crusher and you already have 100–160 psi shop air available to run it.
Have questions about whether the AFC-9 fits your specific job? Call (844) 480-6059.
Full Specifications — AFC-9
| Model / Part Number | 485-80081-00 |
| Product Type | Automotive Filter Crusher (9" Chamber) |
| Operation | 100% air operated |
| Crushing Chamber | 9" H x 8" W x 8" D |
| Cycle Capacity | Up to 4 spin-on oil filters per cycle |
| Air Inlet | 1/4" female NPT |
| Air Pressure | 100–160 psi |
| Catch Basin Connection | 3/4" female NPT |
| Stand Dimensions | 23" L x 29" W x 57" H |
| Overall Dimensions | 16.8" L x 15" W x 69.5" H |
| Shipping Weight | 242 lbs |
| Warranty | 1 year (parts and labor) |
⚠️ Setup Requirements
- Air supply: 100–160 psi required to operate this unit.
- Floor space: 16.8" L x 15" W x 69.5" H footprint; plan clear access on at least two sides for service and operation.
- Weight: 242 lbs shipping weight — confirm your dock/receiving area can handle the unit.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — AFC-9
Mahle backs the AFC-9 with a 1 year (parts and labor) warranty, verified directly from the product’s own published specifications.
| Component | Coverage Term |
|---|---|
| Parts | 1 year (parts and labor) |
| Labor | 1 year (parts and labor) |
| Wear items | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Mahle warranty terms, conditions, and requirements.
Frequently Asked Questions — Mahle AFC-9
Why Buy the AFC-9 from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (844) 480-6059 for a quote.
- We service it. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 9" chamber, up to 4 spin-on filters per cycle, 100–160 psi air operated - we'll confirm your shop air supply is sized right before you order.
