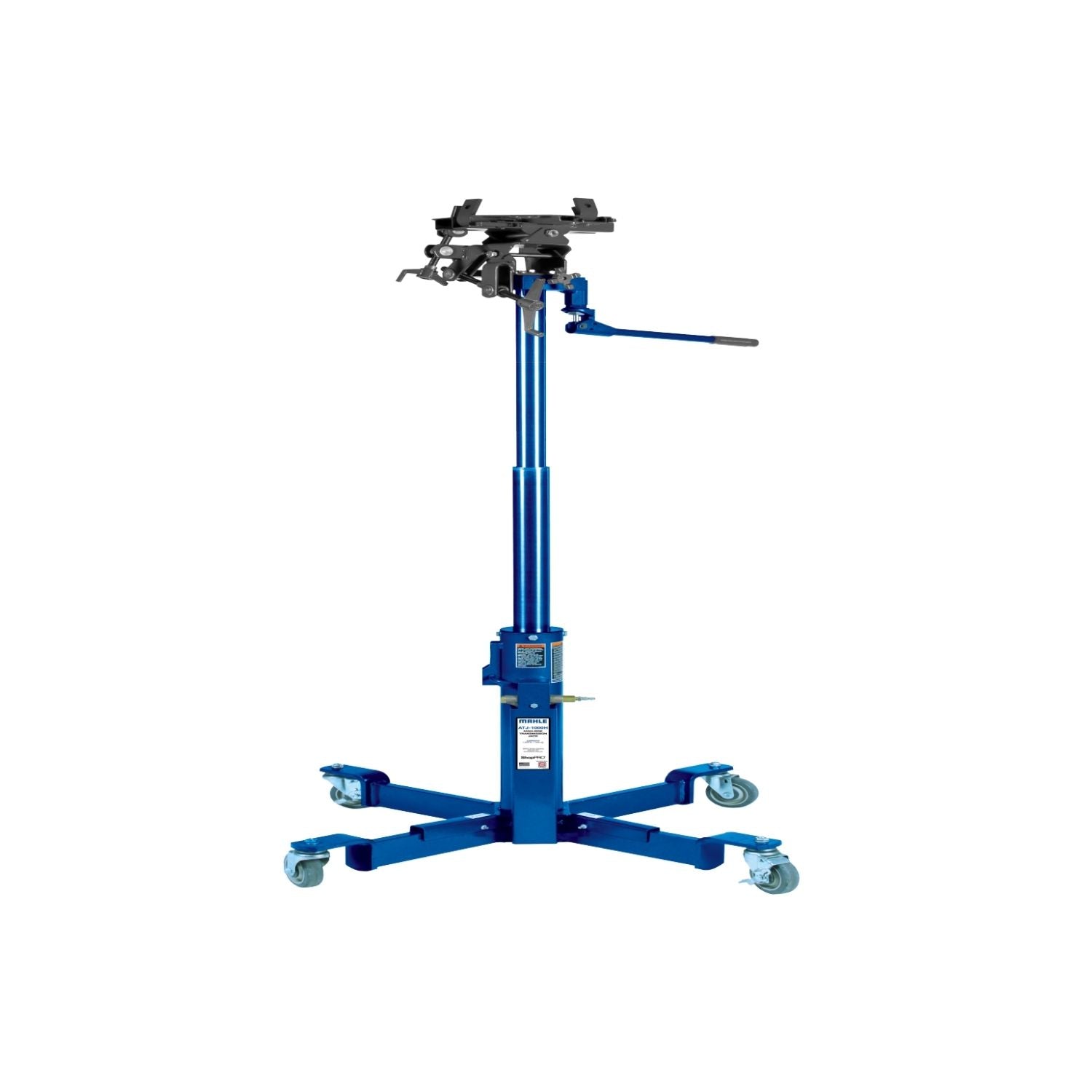

Mahle ShopPRO ATJ-1000H Transmission Jack #485-80025-00
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
Mahle shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model / Part Number | 485-80025-00 |
| Product Type | 1,000 lb High-Rise Transmission Jack |
| Capacity | 1,000 lbs (454 kg) |
| Warranty | 1 year (parts and labor) |
Mahle ATJ-1000H — 1,000 lb High-Rise Transmission Jack
Transmission R&R on lifted trucks, vans, and other high-clearance vehicles is a different problem than a standard passenger car - a typical shop transmission jack simply doesn't reach high enough, forcing techs to improvise with blocks or stacked jack stands that put the transmission at risk of shifting mid-job.
The ATJ-1000H is built specifically for that gap, with a two-stage lifting system - air-powered for a fast first stage, then hydraulic for precise final positioning - that reaches up to 72" of lift height. The 11.5" x 11.5" adjustable head plate and multi-directional tilt (40° forward, 20° rear, 10° side-to-side) let a tech dial in the exact angle needed, while the Nylon Speed-Strap™ secures the load and swivel casters keep the whole jack maneuverable around the bay.
Who the ATJ-1000H Is Built For
- ✅ Shops regularly servicing lifted trucks, vans, and other high-clearance vehicles where standard-height jacks fall short
- ✅ Transmission R&R jobs needing precise multi-directional tilt to align the transmission with the vehicle's mounting points
- ✅ Bays with 90–160 psi shop air available to power the jack's air-assisted first-stage lift
What the ATJ-1000H Is NOT Built For
- ❌ Shops without 90–160 psi compressed air - the first lifting stage is air-powered
- ❌ Loads exceeding the 1,000 lb capacity rating
What Makes the ATJ-1000H Different
Two-Stage Air/Hydraulic Lift
The Mahle ATJ-1000H uses an air-powered first stage for fast approach speed, then switches to hydraulic for precise final positioning - giving techs both speed and control in one jack.
Multi-Directional Tilt Head
The 11.5" x 11.5" head plate tilts 40° forward, 20° rear, and 10° side-to-side, letting a tech align the transmission to the vehicle’s mounting points instead of forcing a fixed-angle fit.
High-Rise Capability
Lift range up to 72" reaches transmissions on lifted trucks and other high-clearance vehicles that a standard-height jack can’t service.
- Shops regularly servicing lifted trucks, vans, and other high-clearance vehicles where standard-height jacks fall short
- Transmission R&R jobs needing precise multi-directional tilt to align the transmission with the vehicle's mounting points
- Bays with 90–160 psi shop air available to power the jack's air-assisted first-stage lift
- Shops without 90–160 psi compressed air - the first lifting stage is air-powered
- Loads exceeding the 1,000 lb capacity rating
Is the ATJ-1000H the Right Transmission Jack for Your Shop?
| Capacity | 1,000 lbs (454 kg) |
| Lift Range | 34.5" to 72" max height |
| Lift System | Air-powered 1st stage, hydraulic 2nd stage |
| Tilt Adjustment | 40° forward / 20° rear / 10° side-to-side |
Choose the ATJ-1000H when your shop regularly services lifted trucks, vans, or other high-clearance vehicles where a standard-height transmission jack can't reach.
Have questions about whether the ATJ-1000H fits your specific job? Call (817) 865-3707.
Full Specifications — ATJ-1000H
| Model / Part Number | 485-80025-00 |
| Product Type | 1,000 lb High-Rise Transmission Jack |
| Capacity | 1,000 lbs (454 kg) |
| Minimum Height | 34.5" |
| Maximum Lift Height | 72" |
| Power | 1st stage air / 2nd stage hydraulic |
| Head Plate Dimensions | 11.5" x 11.5" |
| Tilt Range (F/R/S) | 40° forward / 20° rear / 10° side |
| Required Air Pressure | 90–160 psi |
| Caster Size | 4" swivel casters |
| Overall Dimensions | 41" L x 41" W x 72" H |
| Shipping Weight | 125 lbs |
| Warranty | 1 year (parts and labor) |
⚠️ Setup Requirements
- Air supply: 90–160 psi required to operate this unit.
- Floor space: 41" L x 41" W x 72" H footprint; plan clear access on at least two sides for service and operation.
- Weight: 125 lbs shipping weight — confirm your dock/receiving area can handle the unit.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (817) 865-3707 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — ATJ-1000H
Mahle backs the ATJ-1000H with a 1 year (parts and labor) warranty, verified directly from the product’s own published specifications.
| Component | Coverage Term |
|---|---|
| Parts | 1 year (parts and labor) |
| Labor | 1 year (parts and labor) |
| Wear items | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (817) 865-3707 instead of waiting on a manufacturer hotline. Coverage is subject to Mahle warranty terms, conditions, and requirements.
Frequently Asked Questions — Mahle ATJ-1000H
Why Buy the ATJ-1000H from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (817) 865-3707 for a quote.
- We service it. Call (817) 865-3707 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 1,000 lb capacity, up to 72" max lift height, air/hydraulic two-stage system - we'll confirm it matches your typical vehicle clearance before you order.
- Ships by freight. The available method and price are shown at checkout.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
