Mahle ShopPRO CAD-CB Cross Beam Adapter #485-80112-00

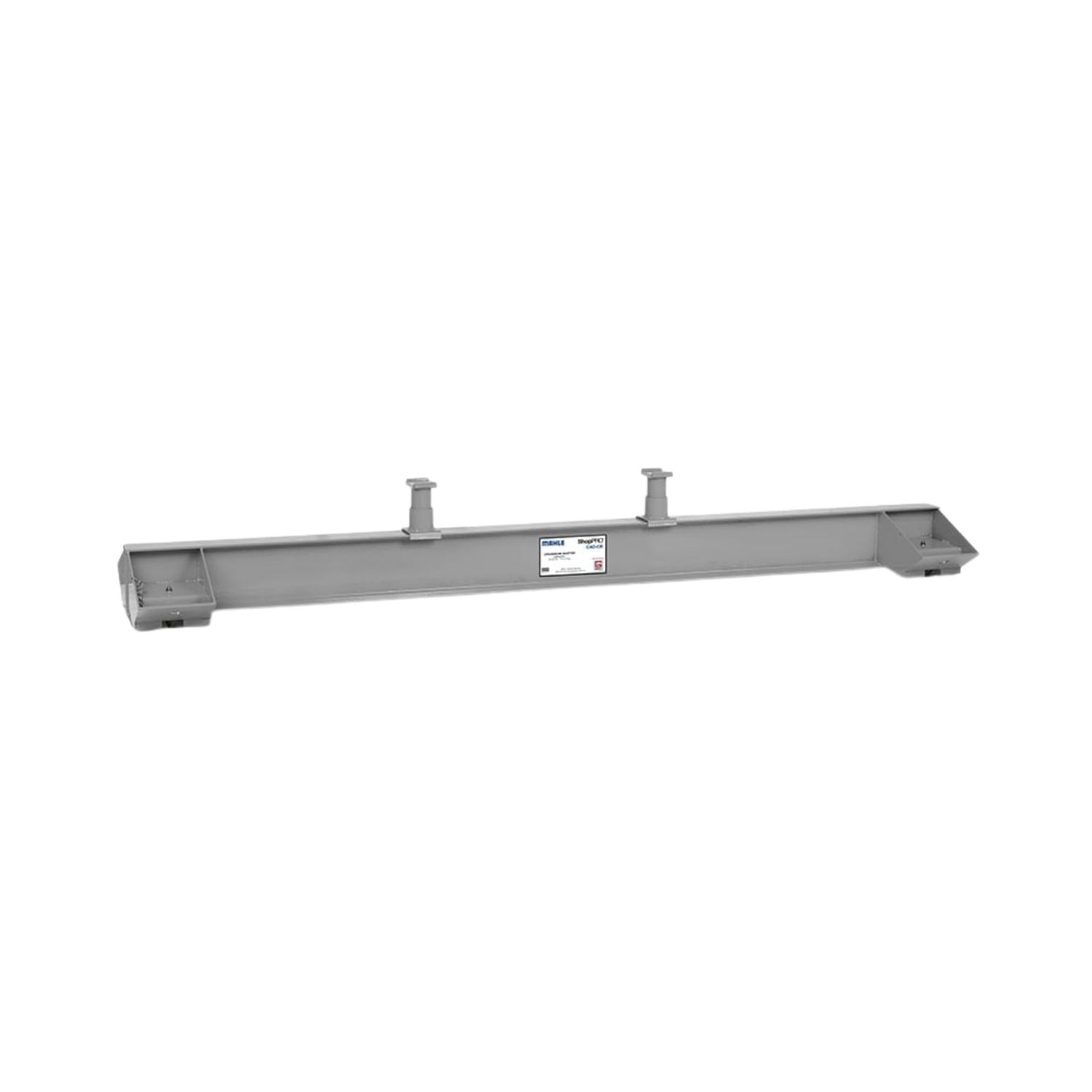

Mahle ShopPRO CAD-CB Cross Beam Adapter
The Mahle CAD-CB Cross Beam Adapter is a heavy-duty attachment for ShopPRO mobile column lift systems, built to support wide-frame vehicles and uneven lifting points that standard lifting forks can't handle directly. Rated to 32,000 lbs with 360-degree lift pad rotation and an adjustable pad spread from 25" to 109.5" center to center, this adapter distributes load across a large span - giving fleet shops a way to safely lift buses, trucks, and specialty vehicles that need cross-frame support instead of turning away that work.
Full Specifications
| Part Number | 485-80112-00 |
| Brand | Mahle |
| Product Line | ShopPRO Accessories |
| Model | CAD-CB |
| Product Type | Cross beam adapter |
| Compatibility | CML Mobile Column Lifts |
| Maximum Capacity | 32,000 lbs (14,515 kg) |
| Overall Length | 137" |
| Overall Width | 31.5" |
| Minimum Starting Height | 19" |
| Height (Top Beam to Lift Pad) | 8.1" |
| Lift Pad Size | 4.0" x 4.5" |
| Lift Pad Rotation | 360° |
| Lift Pad Spread (C-C) | 25" (min) / 109.5" (max) |
| Ground Clearance | 0.9" |
| Caster Diameter | 4" |
| Application | Wide frame vehicle lifting and load distribution |
| Weight | 560 lbs |
