Mahle ShopPRO CAD-EL End Lift Adapter for Mobile Column Lifts #485-80113-00

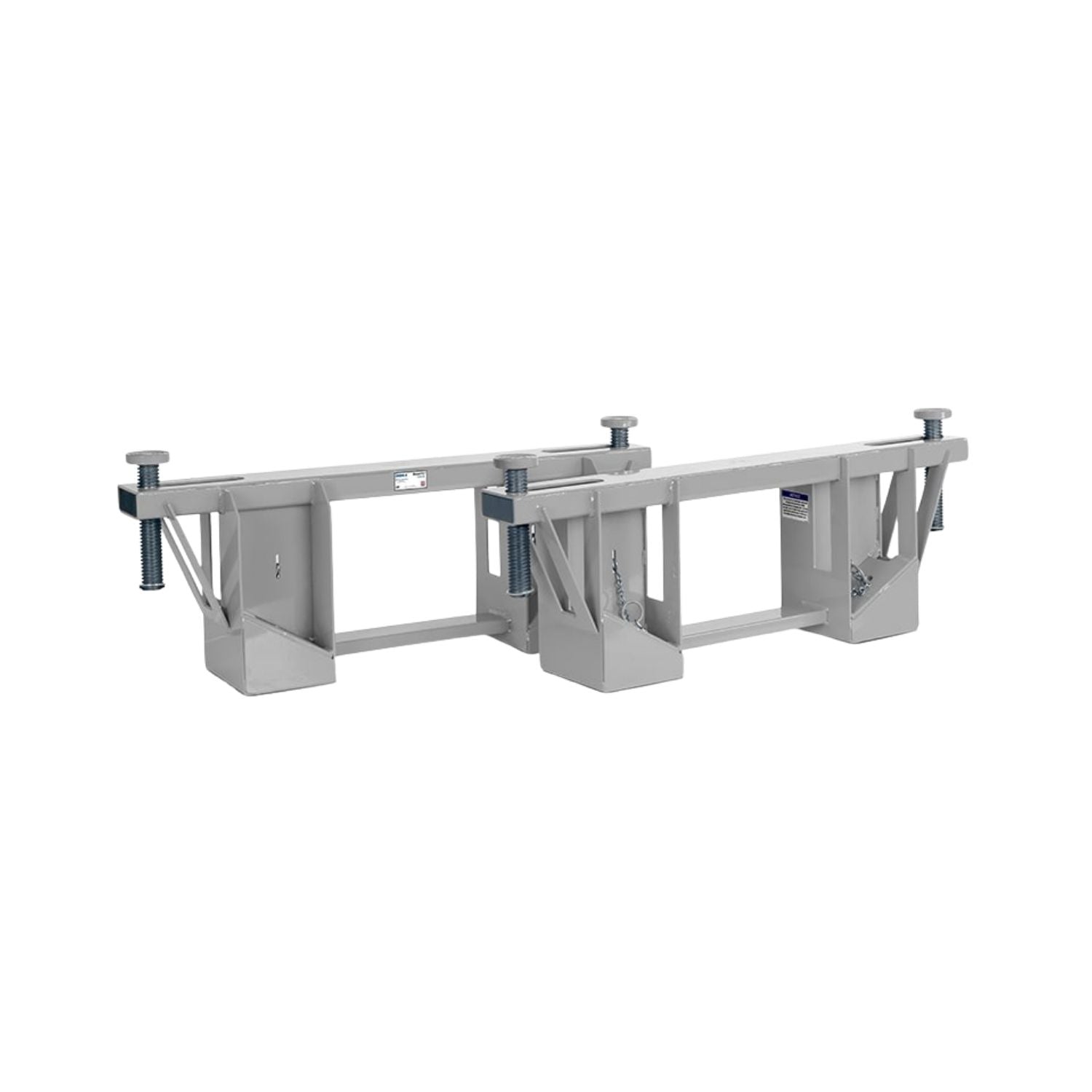

Mahle ShopPRO CAD-EL End Lift Adapter for Mobile Column Lifts
The Mahle CAD-EL is an end lift adapter built for ShopPRO mobile column lift systems, letting techs pick a vehicle up from the front or rear rather than only the traditional side lift points. Buses, trucks, and specialty vehicles with limited side access or unusual chassis layouts can be difficult or impossible to lift conventionally, and the CAD-EL - rated to 9,000 lbs per adapter with an adjustable lift pad spread - gives shops a way to safely handle that work instead of turning it away.
Full Specifications
| Part Number | 485-80113-00 |
| Brand | Mahle |
| Product Line | ShopPRO Accessories |
| Model | CAD-EL |
| Product Type | End lift adapter |
| Compatibility | CML Mobile Column Lifts |
| Maximum Capacity (Each) | 9,000 lbs (4,082 kg) |
| Overall Length | 37" |
| Overall Width | 11.5" |
| Minimum Starting Height | 16" |
| Lift Pad Spread (C-C) | 20" (min) / 32" (max) |
| Lift Pad Clearance from Cross Member | 5" (min) / 7.5" (max) |
| Lift Pad Diameter | 3" |
| Base Pad Spread (C-C) | 26.5" |
| Application | End vehicle lifting and positioning |
| Weight | 80 lbs |
Why Buy the 485-80113-00 from Alamo Equipment & Service?
- We service it. Call (817) 865-3707 for support if you have questions about fitment or use.
- Ships by freight. The available method and price are shown at checkout.
This is a specialized, high-value adapter for a demanding lift application - if you have questions about your specific vehicle fitment, please contact us before ordering.
