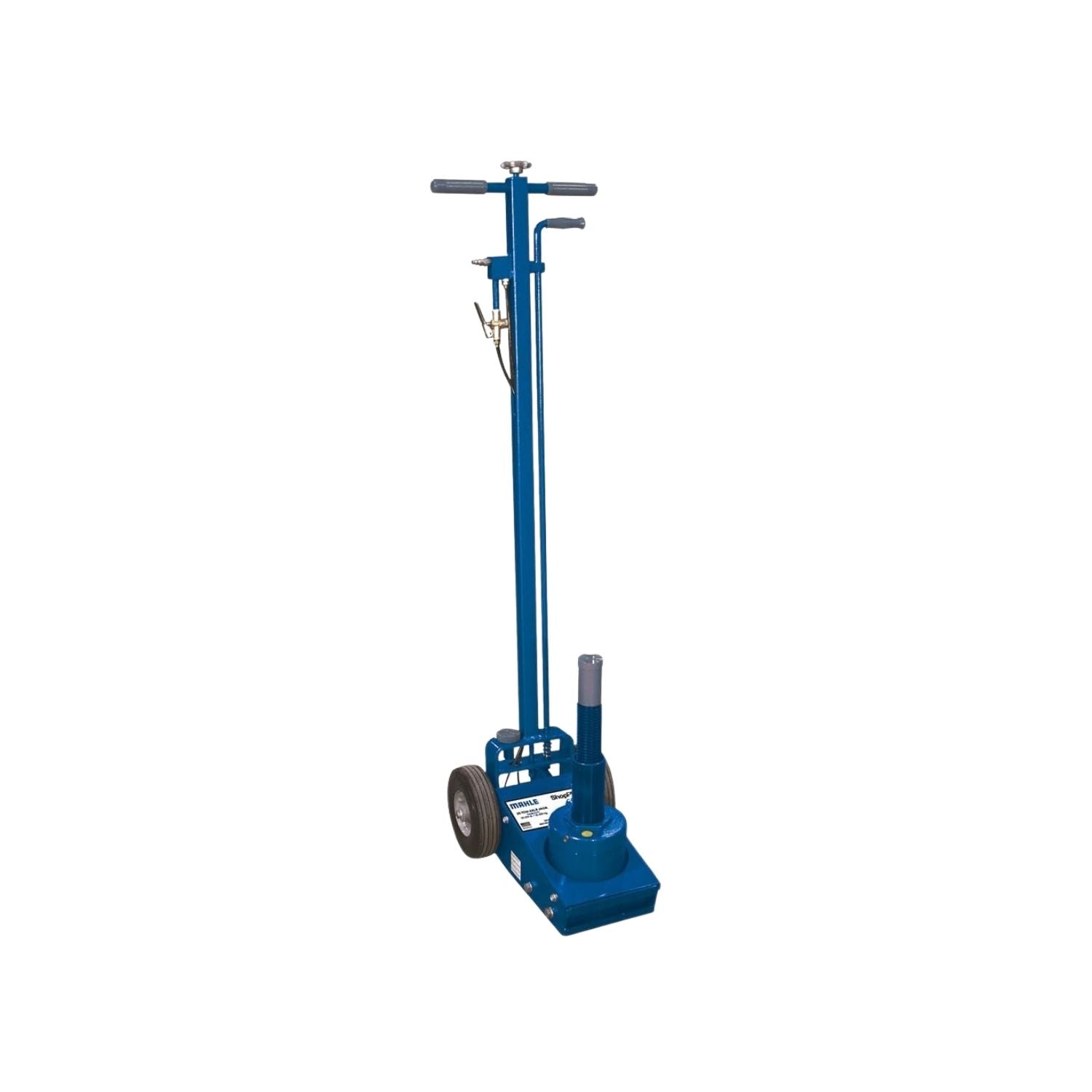

Mahle ShopPRO CAJ-25 Axle Jack Series 25 Ton, Standard, Short, Large
| Model / Part Number | Standard — 485-80051-00 Short Handle — 485-80052-00 Large Pad — 485-80053-00 |
| Product Type | 25 Ton Axle Jack |
| Capacity | 50,000 lbs (25 tons) |
Mahle CAJ-25 Series — 25 Ton Axle Jack
Raising a heavy commercial axle or piece of fleet equipment with an undersized jack is a real safety risk, and a jack that can't get low enough to slide under a low-clearance vehicle just can't do the job at all - forcing techs to improvise with ramps or extra blocking that adds time and risk to every lift.
The CAJ-25 Series solves both problems with a 50,000 lb (25 ton) capacity, a low starting height, and an air/hydraulic system that delivers fast, efficient lifting with less operator effort than a manual pump jack. QuickLift® technology rapidly raises the ram to the load before switching to controlled hydraulic lift, and the series comes in three configurations - Standard for maximum leverage, Short Handle for tight spaces and mobile service, and Large Pad for improved load stability - so a shop can match the jack to the job instead of forcing one configuration to do everything.
Who the CAJ-25 Series Is Built For
- ✅ Shops raising commercial vehicles, trucks, and heavy equipment for axle, suspension, and tire service work
- ✅ Field service and mobile technicians who need the Short Handle configuration's compact size for tight-access jobs
- ✅ Shops handling wide, unstable, or irregular loads where the Large Pad configuration's increased contact surface improves stability
- ✅ Bays that want QuickLift® speed to get the ram to the load fast, then precise hydraulic control for the final lift
What the CAJ-25 Series Is NOT Built For
- ❌ Loads exceeding the 50,000 lb (25 ton) capacity rating - step up to the CAJ-35 for heavier work
- ❌ Shops without a reliable 90–120 psi air supply to run the air/hydraulic lifting system
What Makes the CAJ-25 Series Different
Three Configurations, One Capacity Rating
The Mahle CAJ-25 Series comes in Standard, Short Handle, and Large Pad configurations - each its own SKU and part number - so a shop can match the jack to the job instead of forcing one configuration to handle every lift.
QuickLift® Air/Hydraulic System
QuickLift® rapidly raises the ram to the load using air power, then switches to hydraulic control for the precise final lift - faster than a manual pump jack with the control techs need.
Low Starting Height
An 8" (8.7" on the Large Pad configuration) starting height lets techs position the jack under low-clearance vehicles without extra ramping or blocking.
- Shops raising commercial vehicles, trucks, and heavy equipment for axle, suspension, and tire service work
- Field service and mobile technicians who need the Short Handle configuration's compact size for tight-access jobs
- Shops handling wide, unstable, or irregular loads where the Large Pad configuration's increased contact surface improves stability
- Loads exceeding the 50,000 lb (25 ton) capacity rating - step up to the CAJ-35 for heavier work
- Shops without a reliable 90–120 psi air supply to run the air/hydraulic lifting system
Is the CAJ-25 Series the Right Axle Jack for Your Shop?
| Capacity | 50,000 lbs (25 tons) |
| Configurations | Standard, Short Handle, Large Pad - each its own SKU |
| Power System | Air/Hydraulic with QuickLift® |
| Minimum Start Height | 8" (Standard/Short Handle) / 8.7" (Large Pad) |
Choose the CAJ-25 Series for heavy commercial vehicle, truck, and equipment lifting up to 25 tons, and pick the configuration (Standard, Short Handle, or Large Pad) that matches your typical access and stability needs.
Have questions about whether the CAJ-25 Series fits your specific job? Call (844) 480-6059.
Full Specifications — CAJ-25 Series
| Available Sizes & Part Numbers | Standard — 485-80051-00 Short Handle — 485-80052-00 Large Pad — 485-80053-00 |
| Product Type | 25 Ton Axle Jack |
| Capacity | 50,000 lbs (25 tons) |
| Minimum Start Height | 8" (Standard) / 8" (Short Handle) / 8.7" (Large Pad) |
| Maximum Lift Height | 21" (Standard) / 21" (Short Handle) / 21.1" (Large Pad) |
| Stroke | 5.1" |
| Extension Screw Adjustment | 4.9" |
| Frame Width | 12" |
| Frame Length | 20" |
| Wheel Diameter | 8" |
| Handle Length | 53" (Standard) / 23" (Short Handle) / 53" (Large Pad) |
| Power Type | Air / Hydraulic |
| Required Air Pressure | 90–120 psi |
| Shipping Weight | 120 lbs |
⚠️ Setup Requirements
- Air supply: 90–120 psi required to operate this unit.
- Weight: 120 lbs shipping weight — confirm your dock/receiving area can handle the unit.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — CAJ-25 Series
Warranty coverage for the CAJ-25 Series has not been independently verified from an official Mahle source at this time. Call Alamo at (844) 480-6059 to confirm the current warranty terms before you order.
Frequently Asked Questions — Mahle CAJ-25 Series
Why Buy the CAJ-25 Series from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (844) 480-6059 for a quote.
- We service it. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 50,000 lb (25 ton) capacity across three configurations (Standard, Short Handle, Large Pad) - we'll help you pick the right one for your typical jobs before you order.
- Free shipping. Ships free to the 48 contiguous states.
