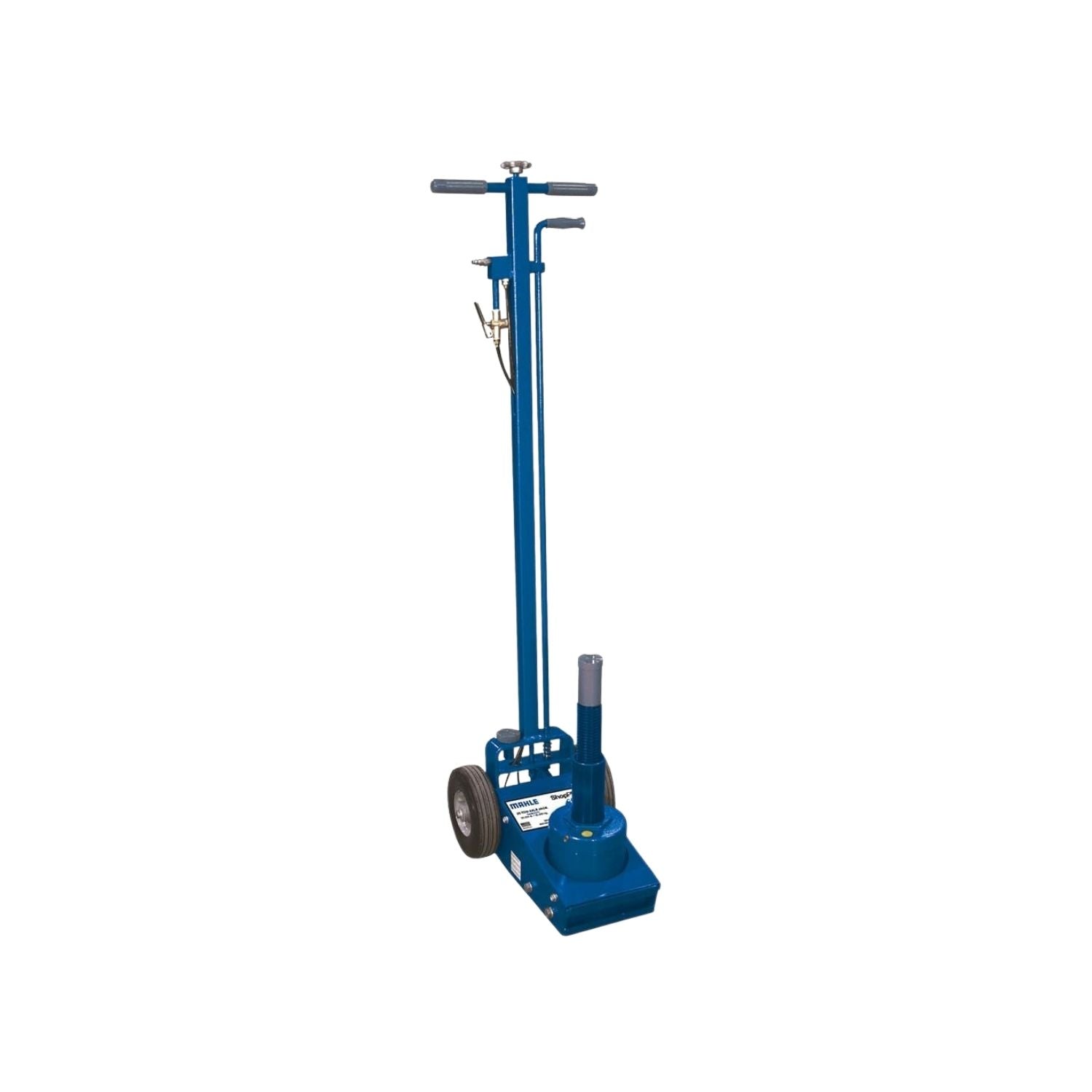

Mahle ShopPRO CAJ-35 Axle Jack 35 Ton #485-80054-00
| Model / Part Number | 485-80054-00 |
| Product Type | 35 Ton Commercial Vehicle Axle Jack |
| Capacity | 70,000 lbs (35 tons) |
Mahle CAJ-35 — 35 Ton Commercial Vehicle Axle Jack
The largest commercial vehicles and industrial equipment on the road need a jack that can handle serious weight without cutting corners on stability or reach - undersized jacks either can't get the job done safely or bottleneck a shop's heaviest-duty work entirely.
The CAJ-35 is built for that top end, rated to 70,000 lbs (35 tons) with an air/hydraulic system and QuickLift® technology that raises the ram to the load fast before switching to precise hydraulic control. Black Armor Coating™ protects the rugged steel frame against rust and corrosion, and the field-ready, compact design keeps it usable in both shop and mobile service environments - built for demanding, high-capacity lifting without the compromises of a lower-rated jack.
Who the CAJ-35 Is Built For
- âś… Shops regularly lifting large commercial vehicles, heavy trucks, and industrial equipment at the top of the weight range
- âś… Field service teams needing a compact, field-ready jack that still delivers 35-ton capacity
- ✅ Bays that want QuickLift® speed plus precise hydraulic control on every heavy lift
- ✅ Operations in demanding environments where Black Armor Coating™ corrosion protection extends the jack's service life
What the CAJ-35 Is NOT Built For
- ❌ Lighter-duty jobs where the 25-ton CAJ-25 Series is a better capacity/cost match
- ❌ Shops without a reliable 110–200 psi air supply to run the air/hydraulic lifting system
What Makes the CAJ-35 Different
70,000 lb Capacity
The Mahle CAJ-35 is rated to 70,000 lbs (35 tons), built for the heaviest commercial vehicles and industrial equipment a shop services.
QuickLift® Air/Hydraulic System
QuickLift® rapidly raises the ram to the load using air power, then switches to hydraulic control for precise final positioning on heavy, high-value lifts.
Black Armor Coating™
A rugged steel frame protected by Black Armor Coating™ resists rust and corrosion, extending the jack’s service life in demanding shop and field environments.
- Shops regularly lifting large commercial vehicles, heavy trucks, and industrial equipment at the top of the weight range
- Field service teams needing a compact, field-ready jack that still delivers 35-ton capacity
- Bays that want QuickLift® speed plus precise hydraulic control on every heavy lift
- Lighter-duty jobs where the 25-ton CAJ-25 Series is a better capacity/cost match
- Shops without a reliable 110–200 psi air supply to run the air/hydraulic lifting system
Is the CAJ-35 the Right Axle Jack for Your Shop?
| Capacity | 70,000 lbs (35 tons) |
| Lift Range | 9.3"–19.4" standard, up to 24.4" with screw adjustment |
| Power System | Air/Hydraulic with QuickLift® |
| Corrosion Protection | Black Armor Coating™ |
Choose the CAJ-35 when your shop regularly handles the heaviest commercial vehicles and industrial equipment, where the CAJ-25 Series' 25-ton rating isn't enough margin.
Have questions about whether the CAJ-35 fits your specific job? Call (844) 480-6059.
Full Specifications — CAJ-35
| Part Number | 485-80054-00 |
| Product Type | 35 Ton Commercial Vehicle Axle Jack |
| Capacity | 70,000 lbs (35 tons) |
| Minimum Start Height | 9.3" (Standard) / 11.9" (With Adapter) |
| Maximum Lift Height | 19.4" (Standard) / 24.4" (With Screw Adjustment) |
| Stroke | 5.1" |
| Screw Adjustment | 5" |
| Length (Handle Horizontal) | 71" |
| Width at Wheels | 14.3" |
| Overall Height (Handle Vertical) | 58.5" |
| Power Type | Air / Hydraulic |
| Required Air Pressure | 110–200 psi |
| Shipping Weight | 146 lbs |
⚠️ Setup Requirements
- Air supply: 110–200 psi required to operate this unit.
- Weight: 146 lbs shipping weight — confirm your dock/receiving area can handle the unit.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — CAJ-35
Warranty coverage for the CAJ-35 has not been independently verified from an official Mahle source at this time. Call Alamo at (844) 480-6059 to confirm the current warranty terms before you order.
Frequently Asked Questions — Mahle CAJ-35
Why Buy the CAJ-35 from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (844) 480-6059 for a quote.
- We service it. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 70,000 lb (35 ton) capacity with air/hydraulic QuickLift® operation - we'll confirm it's the right jack for your heaviest-duty lifting jobs before you order.
- Free shipping. Ships free to the 48 contiguous states.
